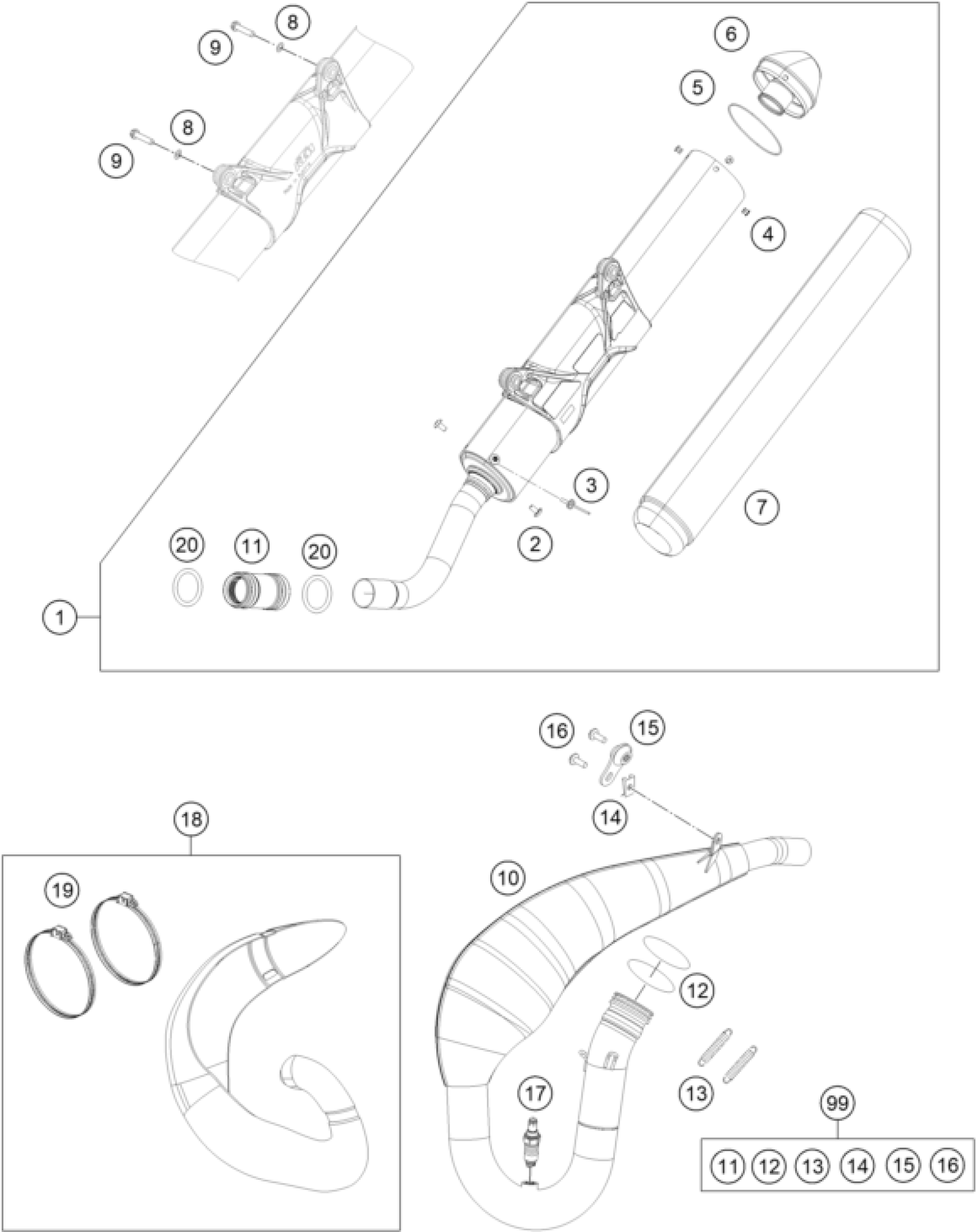

KTM 250 EXC Six Days TPI 2019 EXHAUST SYSTEM Diagram

#

Description
Price

1

SILENCER SIXDAYS

5560508300059

$434.02

2

SCREW TORX M5X10

78105081010

$2.05

3

DUMMY RIVET 4,0X12 ALU

0011401200

Unavailable

4

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

5

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11

6

ENDCAP CPL.

54805083260

$84.24

7

ROCKWOOL 315G

54805078315

$59.46

8

spring washer DIN 137 B - 6

0137060003

$2.05

9

HH collar screw M6x35 TX30

0025060356

$3.08

10

Exhaust manifold wth catalyst

55605109000

Unavailable

11

exhaust rubber

55405057000

$16.07

12

O-RING 44,00X3,00 VITON

0770440030

$4.11

13

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

14

clip nut M6

54603048100

$4.11

15

Silent block for exhaust pipe

50305012000

$19.91

16

HH collar screw M6x15 TX30

0024060156

$3.08

17

LAMBDA SENSOR

75041090200

$327.34

99

EXHAUST HARDWARE KIT 11-14

00050000811

Unavailable

18

CARBON PIPE GUARD

55405994000

Unavailable

19

HOSE CLAMP SET 60-135MM

55105994010

Unavailable

20

hose spring

55405058000

$3.08
