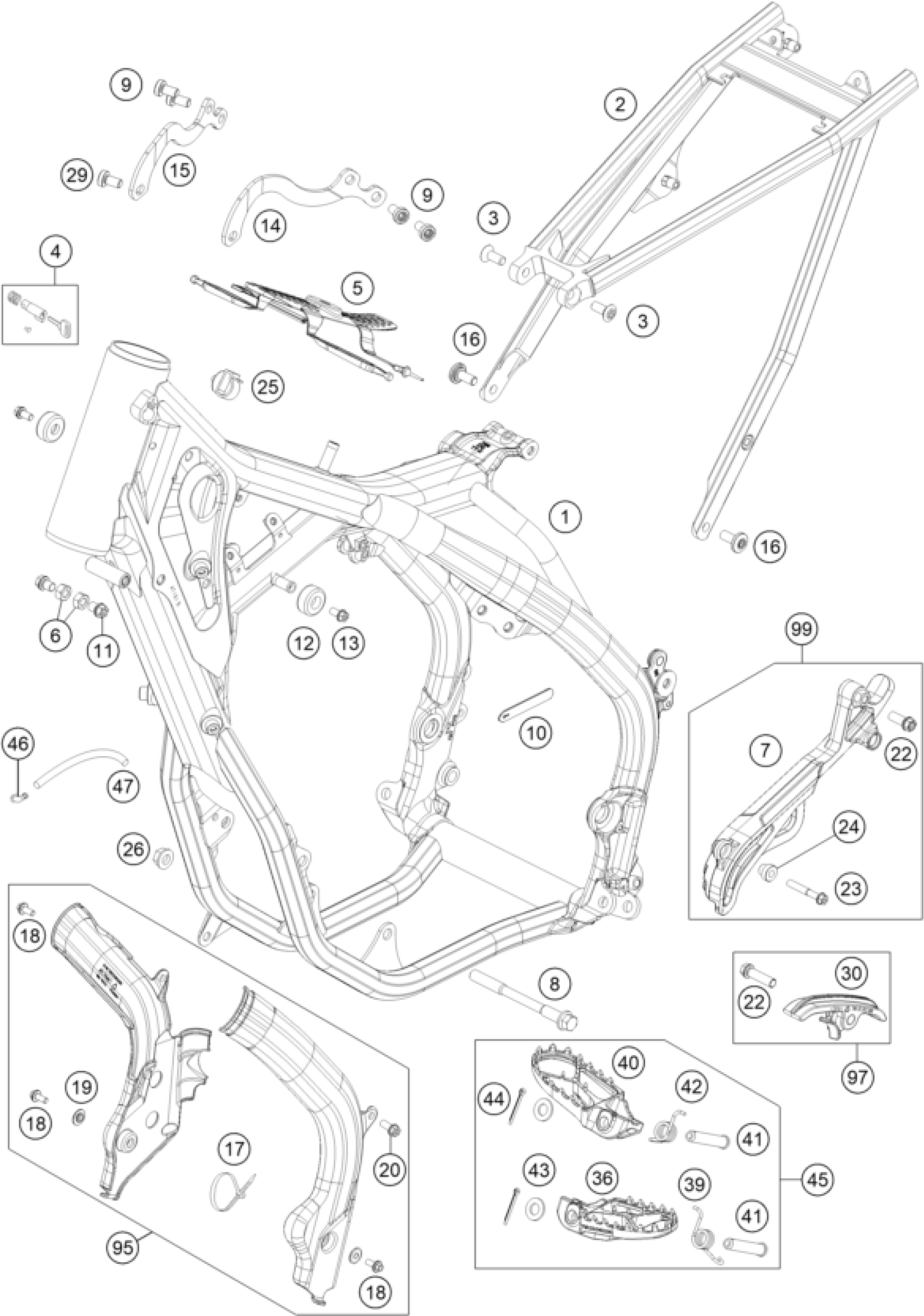

KTM 250 EXC SIX-DAYS 2017 FRAME Diagram

FRAME ''554Q1'' EL.ORANGE

55403101100EB

Unavailable

SUBFRAME 2016

79003002000

$267.78

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

STEERING HEAD LOCK 08

78003035000

$20.94

TANK REST RUBBER

79607012000

$10.09

FRONT CHAIN GUARD 250/300

55403096000

$21.12

engine brac.scr. M10x115

77203014000

$8.97

AH-COLLAR SCREW M8X15 TORX45

0035080156S

$2.05

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

TANK ROLLER 12X26X12 '98

50307014000

$11.02

COLLAR SCREW M6X13 ISA30

0026060136

$3.08

ENGINE BRACE LEFT

55403113000

$24.21

ENGINE BRACE RIGHT

55403114000

$22.06

Special screw M8X18 TORX45 SL

79003003000

$3.08

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

Bush f. frame protection 03

54803092060

$4.11

HH collar screw M6x12 TX30

0025060126

$3.08

HH collar screw M8x30

0025080306

$3.08

HH collar screw M6x40 TX30

0025060406

$3.08

WASHER DIN0125-A 6,4

0125060003

$1.49

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

Chain slider, lower part, cmpl

79003053000

$10.56

FOOTREST L/S EXC 2017

79603040000

$44.78

FOOTREST SPRING L/S 2016

79003045000

$2.05

FOOTREST R/S EXC 2017

79603041000

$44.78

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

FOOTREST SPRING R/S 2016

79003044000

$2.05

washer DIN 125 A 10.5

0125100003

$2.05

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

FOOTREST-SET

79603040033

$113.03

ANGLE PIECE '97

50303089000

$5.23

preformed hose 6x10 ECO

50430087000

Unavailable

FRAME PROTECTION SET BLACK

7900309400033

$35.24

CHAIN SLIDING KIT BELOW CPL.16

79003053010

$17.85

SPROCKET COVER KIT

55403096010

$24.58

SHCS M8x20 TX45

0035080206S

$5.32

Hexagon nut DIN934 M8

0934080003

$2.05
