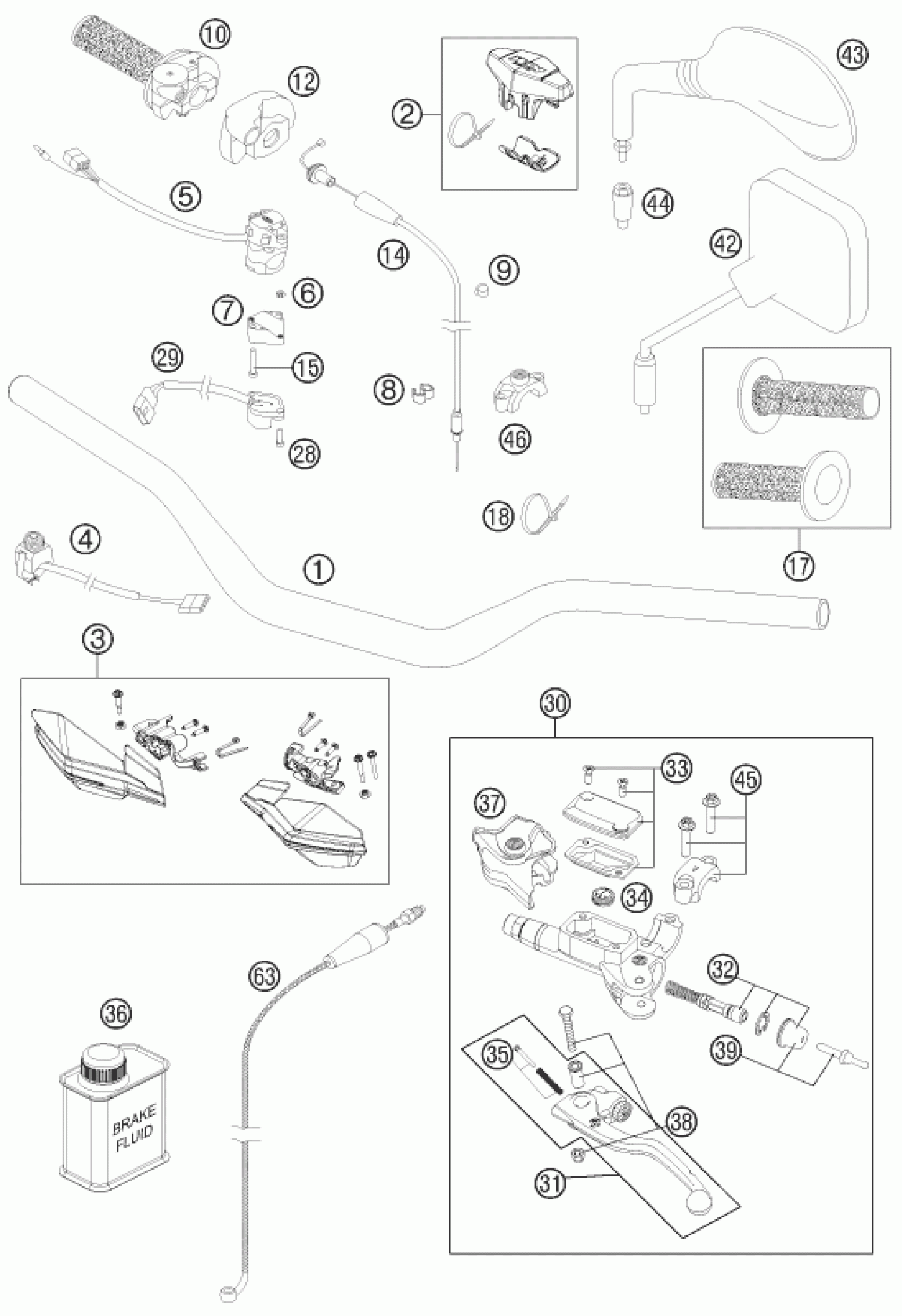

KTM 250 EXC SIX-DAYS 2012 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28 MM SX/EXC OR.

5480200130004

Unavailable

2

Bar pad cmpl.

77202002144

$22.94

3

HANDGUARDS CPL.LE+RI ORANGE

7810297900004

$37.34

4

STARTER CONTROL 04

59411074000

$42.91

5

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

6

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

7

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

8

CLIP 5/7 MM 06

60111094000

$3.08

9

WIRING HOLDER 16MM

57013072100

$1.49

10

THROTTLE GRIP CPL. 09

54802010100

$67.31

12

PROTECTION COVER '97

50302020000

$19.16

14

THROTTLE C. 2STROKE DOM./KEIH

51502091000

$39.45

15

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

17

GRIP-SET GRAY/ORANGE 09

54802021200

$22.71

18

Cable tie 200/4.6mm black

44011076200

$1.49

28

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

29

FLASHER SWITCH CEV '98

50311029000

$51.98

30

MASTER CYLINDER CPL. 06

54802030044

$240.57

31

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

32

REP. KIT PISTON 06

54802032000

$49.92

33

COVER HYD. CLUTCH CPL.

54802003000

$33.46

34

VALVE

54802051000

$19.16

35

BOLT KPL.

54802052000

$29.35

36

Brake fluid DOT5.1 0,25L

00062030000

$12.52

37

PROTECTION CAP 06

54802037000

$20.94

38

Lever screw cmpl. 06

54802038100

$39.82

39

Push rod cmpl.

54802046000

$23.46

42

Rear view mirror left

58012040000

Unavailable

42

Rear view mirror right

58012140000

Unavailable

43

MIRROR L/S 98

58412040000

Unavailable

43

MIRROR R/S 98

58412041000

Unavailable

44

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

45

CLAMP CPL. 06

54802005100

$25.80

46

Clamp for mirror

58012040150

$22.81

63

CLUTCH PIPE 06

54832063000

$100.32
