Partiron

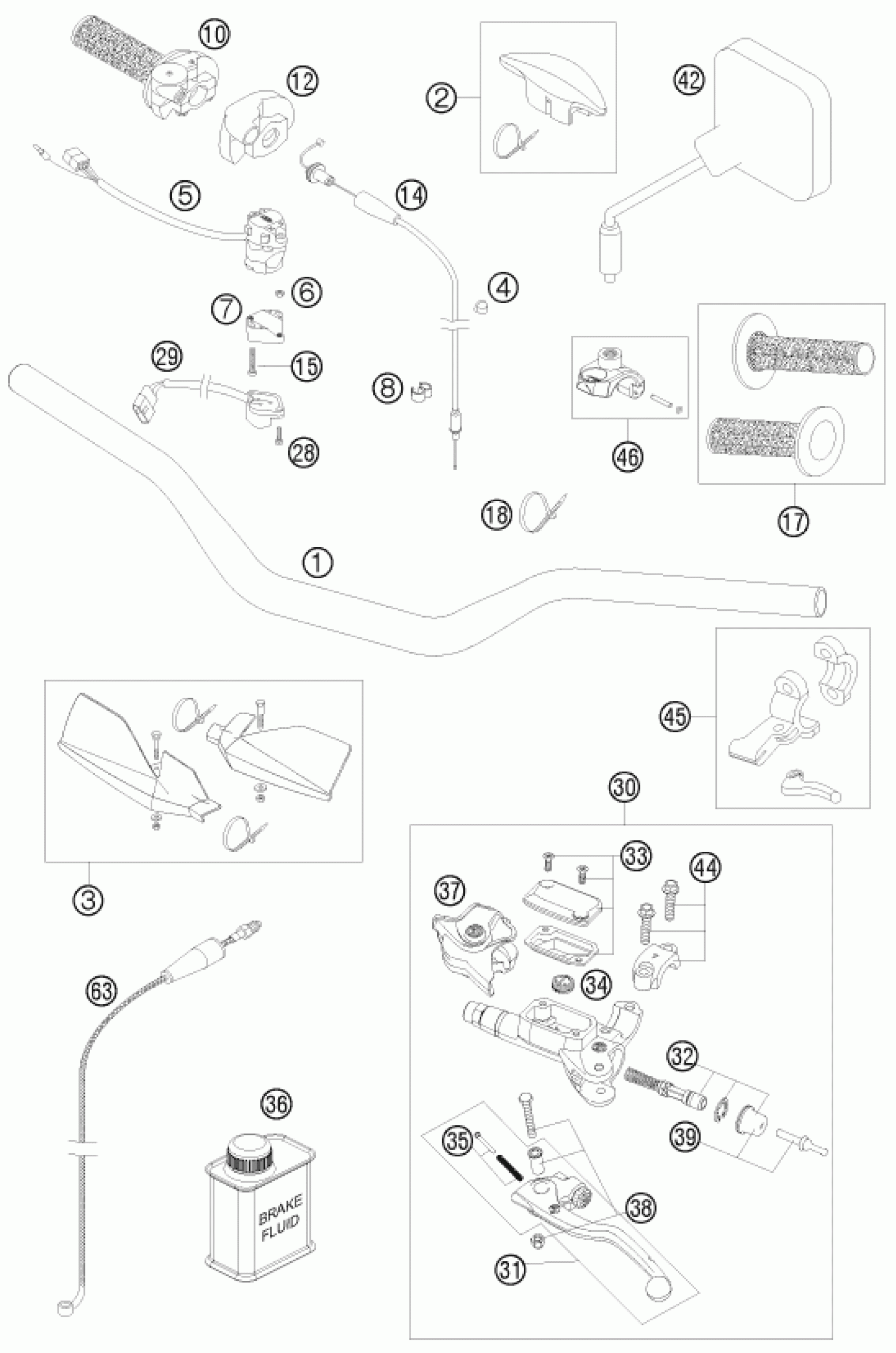

KTM 250 EXC SIX-DAYS 2010 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR NEKEN D=28MM EXC 07

5480200130017

$183.06

2

BAR PAD CPL.

77202002000

Unavailable

3

HAND GUARDS CPL.L/S+R/S OR. 06

7700207900004

$34.85

4

WIRING HOLDER 16MM

57013072100

$1.49

5

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

6

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

7

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

8

CLIP 5/7 MM 06

60111094000

$3.08

10

THROTTLE GRIP CPL. 09

54802010100

$67.31

12

PROTECTION COVER '97

50302020000

$19.16

14

THROTTLE C. 125-380 DOM/KEIH

50302091000

$39.45

15

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

17

GRIP-SET GRAY/ORANGE 09

54802021200

$22.71

18

Cable tie 200/4.6mm black

44011076200

$1.49

28

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

$1.49

29

FLASHER SWITCH CEV '98

50311029000

$51.98

30

MASTER CYLINDER CPL. 06

54802030044

$240.57

31

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

32

REP. KIT PISTON 06

54802032000

$49.92

33

COVER HYD. CLUTCH CPL.

54802003000

$33.46

34

VALVE

54802051000

$19.16

36

Brake fluid DOT5.1 0,25L

00062030000

$12.52

37

PROTECTION CAP 06

54802037000

$20.94

38

Lever screw cmpl. 06

54802038100

$39.82

39

Push rod cmpl.

54802046000

$23.46

35

BOLT KPL.

54802052000

$29.35

44

CLAMP CPL. 06

54802005100

$25.80

42

Rear view mirror left

58012040000

$36.18

42

Rear view mirror right

58012140000

$37.11

45

LEVER F. COLD START ACT. 08

78002050000

Unavailable

46

Clamp for mirror

58012040150

$22.81

63

CLUTCH PIPE 06

54832063000

$100.32
