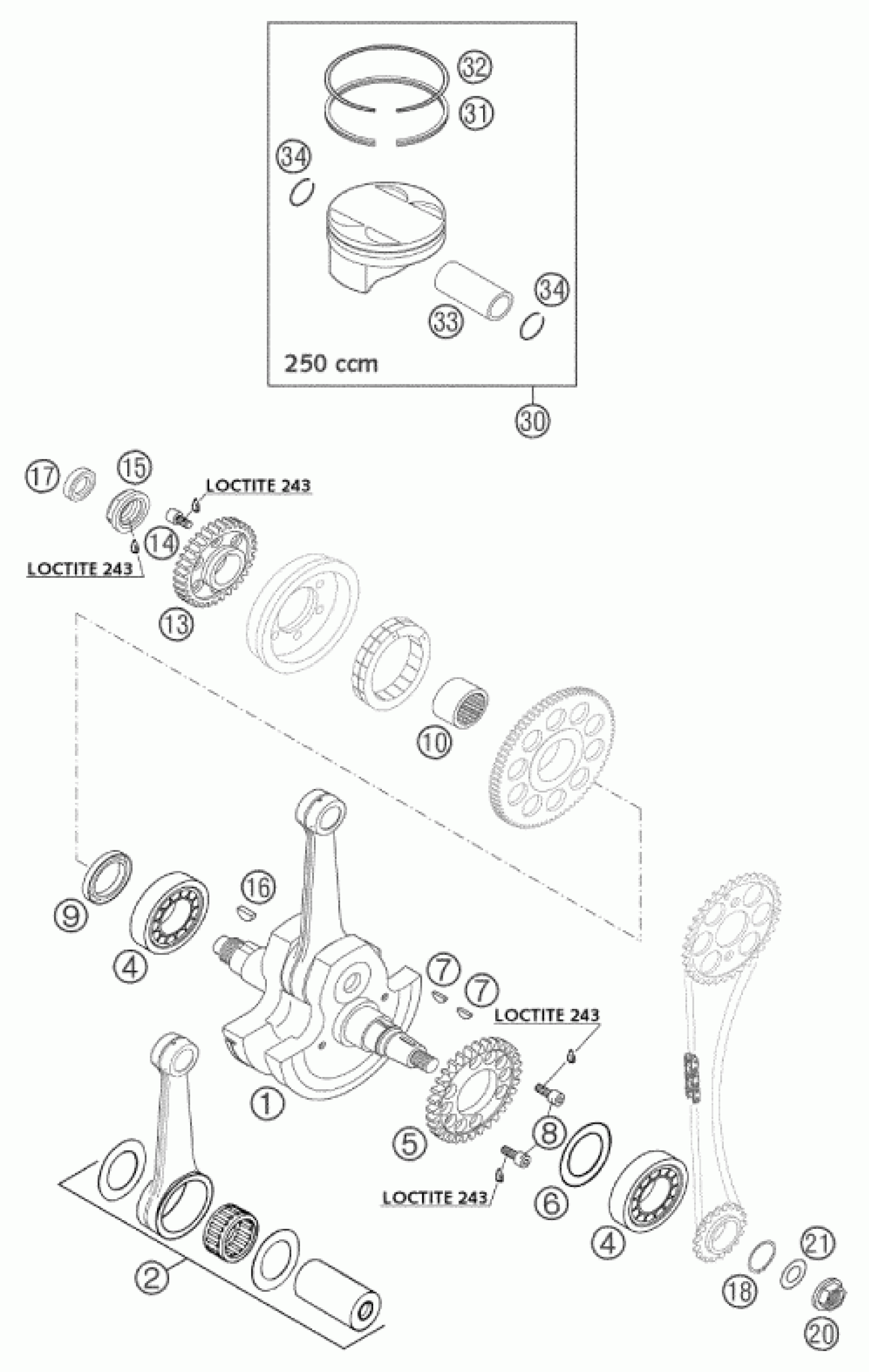

KTM 250 EXC RACING 2004 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL.250 RAC. 2002

59830018000

$644.78

2

CON.ROD REP.SET 250/520 RAC.00

59030015044

$490.77

4

CYL.ROLLBEAR.NJ206ECP/C3HVC058

80030019000

$94.80

5

DRIVE GEAR 32-T F.BALANC.SHAFT

59030055000

$91.24

6

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

6

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

6

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

7

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

8

AH SCREW DIN7984-M 6X16

0984060162

$1.49

9

SH.SEAL RING 30X47X7 BSL VITON

0760304772

$20.37

10

NEEDLE BEARING HK 3016 B

0618301617

$10.46

13

PRIMARY GEAR 33-T

59032000033

$126.59

14

AH SCREW DIN0912-M 6X10 10.9

0912060106

$1.49

15

HH NUR M20X1,5 WS=27 LEFT

59030029100

$6.96

16

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

17

radial shaft seal 14x24x6 B

0760142460

$9.25

18

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

20

COLLAR NUT M12X1 R/S

49030021000

$2.05

21

SPRING WASHER DIN0137-B12

0137120000

$1.49

30

PISTON I KPL. 250 RACING 2001

59830007000 I

$194.71

30

PISTON II KPL. 250 RACING 2001

59830007000 II

$217.91

31

OIL SCRAPER RING 75MM

59830031000

$14.35

32

RECTANGULAR RING 75/68,7X1,25

59830032000

$25.22

33

PISTON PIN BOLT 20X15,8/12X50

59030033000

$18.01

34

CIRCLIP C20X1,5

59030074000

$2.05
