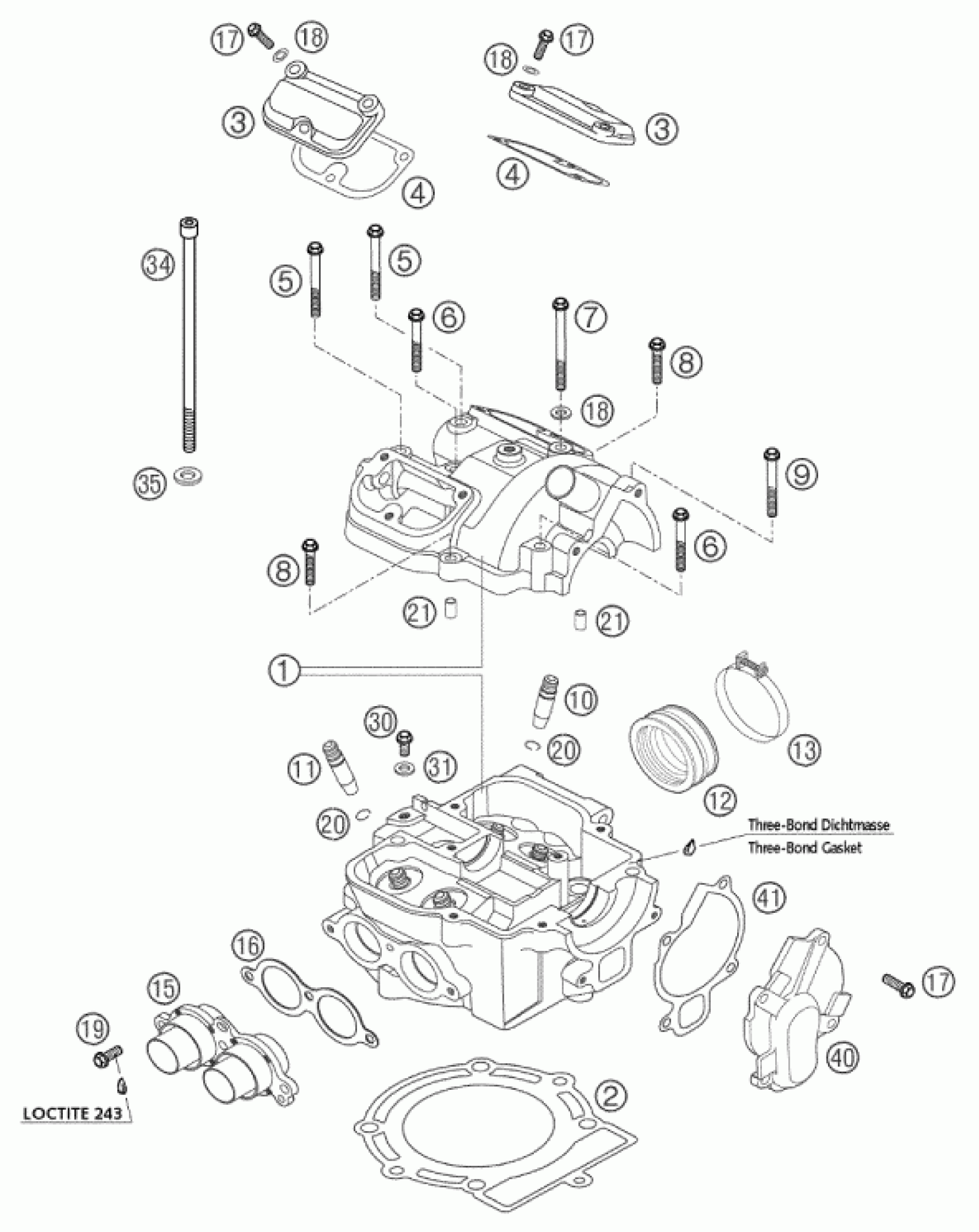

KTM 250 EXC RACING 2002 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDERHEAD CPL. 250 RAC. 01

59836020044

Unavailable

2

CYLINDER HEAD GASKET D=75 02

59830036000

$20.56

3

VALVE COVER REAR

58036052000

$36.15

4

VALVE COVER GASKET

58036053000

$4.11

5

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

6

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

7

HH COLLAR SCREW M 6X75 WS=8

0015060753

$3.08

8

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

9

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08

10

VALVE GUIDE INTAKE

59036025000

Unavailable

11

VALVE GUIDE EXHAUST

59036026000

Unavailable

12

CLAMP 250 CCM RACING 02

59836044000

$9.54

13

CLAMP D=56MM B=9MM M4X25

59030061000

$5.23

15

EXHAUST FLANGE CPL. 250 4T 02

59836039100

$65.73

16

GASKET EXHAUST FLANGE

59036041000

$6.44

17

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

18

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

19

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

20

CIRCLIP DIN7993-RW12

0993012000

$3.08

21

dowel sleeve 6x8x11.5

59030023000

$1.49

30

VENT SCREW M6X10 CPL.

59036006090

$4.11

31

CU-SEAL RING 6 X 10 X 2

58036065100

$2.05

34

AH SCREW DIN 912 M10X150 10.9

0912101503

$10.09

35

WASHER 10,8X18,8X1,5

59036090000

$1.49

40

WATER PUMP COVER RACING 2000

59035052000

$62.35

41

WATER PUMP COVER GASKET 0,8MM

59035053000

$6.54
