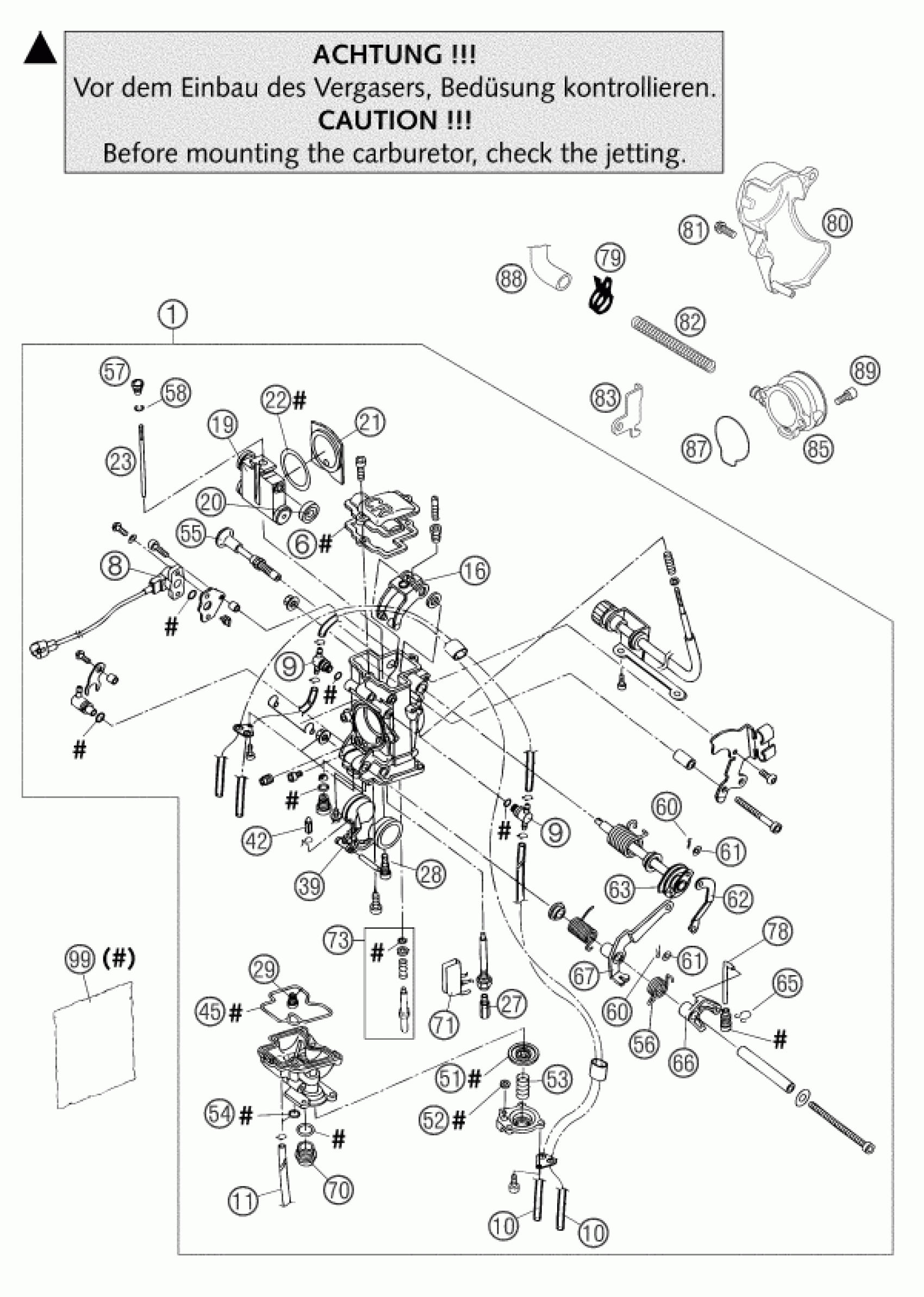

KTM 250 EXC RACING 2002 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR KEIHIN FCR-H35 02

59831001000

$810.24

6

GASKET CARBURETOR COVER

59031028000

$20.88

8

TPS-SENSOR FCR 200MM 99-03

59031077000

$172.55

9

T-JOINT BREATHER HOSE

59031083000

$12.11

10

PVC-HOSE 4X6MM

31007007101

$4.11

11

PVC-HOSE 3X5MM

52031137001

Unavailable

16

LINK ARM THROTTLE VALVE CPL.

59031035051

$78.24

19

THROTTLE VALVE 15 CPL.

59031035015

Unavailable

20

BUSHING THROTTLE VALVE

59031035050

$10.65

21

GASKET PLATE THROTTLE VALVE

59031035053

Unavailable

22

GASKET WASHER THROTTLE VALVE

59031035052

$17.94

23

JET NEEDLE OBEVR

590311340VR

$23.56

23

JET NEEDLE KEIHIN OBEVP

59031023000

Unavailable

23

JET NEEDLE KEIHIN OBDVR

590310340VR

Unavailable

23

JET NEEDLE KEIHIN OBDTM

590310340TM

Unavailable

27

MAIN JET 160 KEIHIN

54531623160

$13.08

27

MAIN JET 165 KEIHIN

54531623165

Unavailable

27

MAIN JET 172 KEIHIN

54531623172

Unavailable

27

MAIN JET 175 KEIHIN

54531623175

Unavailable

27

MAIN JET 178 KEIHIN

54531623178

Unavailable

27

MAIN JET 180 KEIHIN

54531623180

Unavailable

28

IDLE JET 45

59031607045

$13.19

28

IDLE JET 48

59031607048

Unavailable

28

IDLE JET 50

59031607050

Unavailable

28

IDLE JET 52

59031607052

Unavailable

29

STARTER JET 85

59031051085

$16.73

39

FLOAT CPL.

59031009000

$45.98

42

FLOAT NEEDLE

54631220000

$31.41

45

GASKET FLOAT CHAMBER

59031010000

$24.68

51

DIAPHRAGM ACCELERATOR PUMP

59031057000

$26.80

52

U-RING

59031058000

$3.08

53

COIL SPRING

59031059000

$7.38

54

O-RING

59031058100

$3.08

55

STARTER VALVE CPL.

59031048000

$64.15

56

COIL SPRING

59031059100

$8.96

57

NEEDLE SET SCREW

59031032000

$15.68

58

BAR CLIP

59031029000

$5.23

60

SPLIT PIN 1,0X10

0094010103

$2.61

61

PVC WASHER 3X8X0,5

59031087000

$1.49

62

LINK ARM CPL.

59031063000

$23.05

63

THROTTLE SHAFT CPL.

59031046000

$113.31

65

TUBE CLIP

59031084000

$8.13

66

LINK LEVER

59031056000

$11.11

67

LINK LEVER CPL.

59031062000

$34.09

70

HOLDING BOLT

59031014000

$30.12

71

BUFFER PLATE

59031085000

$20.49

73

ADJUST SCREW CPL.

59031017000

$12.86

78

ROD ACCELERATOR PUMP

59031061000

$23.65

79

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

80

CARBURETOR COVER RACING 2000

59031086000

$4.93

81

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

82

PRESSURE SPRING

32003073000

Unavailable

83

SLIDE STOP 24,5MM

59031029024

$3.64

85

INTAKE FUNNEL FCR/FCR-MX 2001

59031040100

$7.69

87

O-RING FOR INTAKE FUNNEL

59031040010

$3.08

88

ENGINE BREATHER TUBE 00

59031050100

$14.58

89

AH SCREW DIN0912-M 5X12

0912050123

$2.05

99

GASKET SET FCR KEIHIN

59031099000

$123.50
