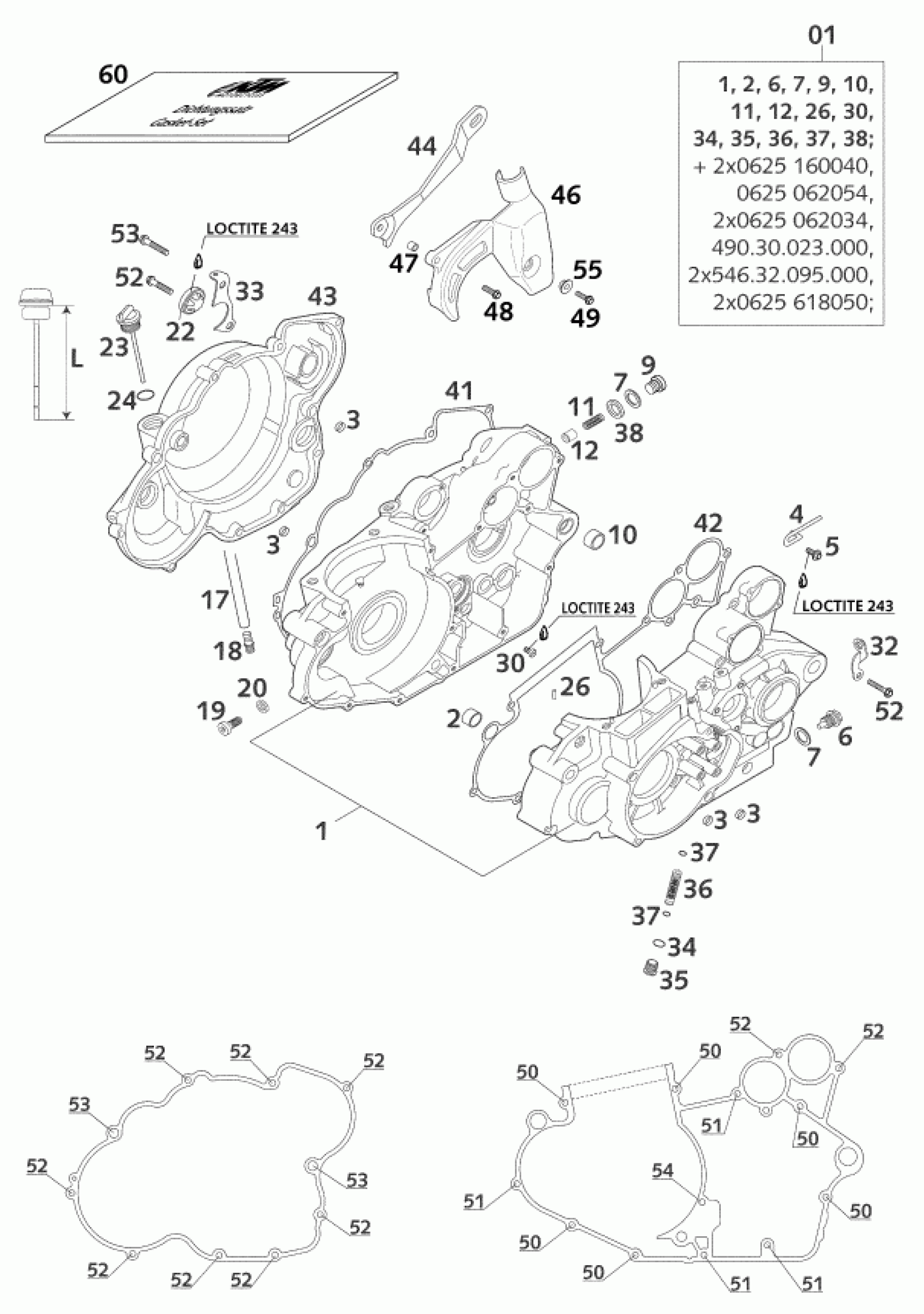

KTM 250 EXC RACING 2001 ENGINE CASE Diagram

#

Description
Price

1

% ENGINE CASE CPL.W.TR.BEAR.20

59030000044

Unavailable

2

DOWEL 17 X 13 X 12

51030026100

$6.44

3

DOWEL 9,8 X 7 X 10

49030090000

$2.05

4

HANGER FOR VENT HOSE

59030090000

$4.11

5

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

6

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

7

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

9

threaded plug DIN 908 M12x1.5

0908120153

$4.11

10

DOWEL 19 X15,1X12

50130027000

$5.30

11

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

12

VALVE PISTON D=10MM

58038028000

$37.77

17

ENGINE BREATHER TUBE 00

59031050100

$14.58

18

BLEEDER FLANGE M12X1,5 WS=13

59030022100

$7.85

19

LOCATING SCREW M8 L=30,5 02

59830080000

$4.13

20

CU-SEAL RING 8 X 14 X 3

58030081000

$2.05

22

OIL LEVEL GLASS G 1777 Y

59030019000

$21.31

23

OIL DIPSTICK CPL. L=102MM 2000

59030020044

$7.54

24

O-RING 19,00X3,00 NBR

0770191015

$2.05

26

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

30

FLAT HEAD SCREW DIN7985-M 5X 8

0985050083

$1.49

32

BRACKET BRAKE FLUID RESERVOIR

59013068000

$7.05

33

RET.BRACKET F.BRAKE LEVER HUB

59030001090

$2.81

34

O-RING 12,00X2,00 NBR 70

0770120020

$2.05

35

PLUG M16X1,5

59038014000

$16.82

36

OIL SCREEN 11,8X44,5MM

59038015000

$12.61

37

O-RING 9X1,5 NBR

0770090015

$2.05

38

SEAL RING DIN7603 12X18X3

0603121830

$2.05

41

CLUTCH COVER GASKET 0,5MM

59030025000

$26.45

42

ENGINE CASE GASKET

59030039000

Unavailable

43

CLUTCH COVER RACING 2000

59030001000

Unavailable

44

CHAIN DAMPERSHEET RACING 20

59030047000

$12.70

46

SPROCKET COVER RACING 20

59030060000

Unavailable

47

BUSHING 6,5X8X11

54613038150

$4.11

48

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

49

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

50

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

51

HH COLLAR SCREW M 6X60 WS=8

0015060603

$3.08

52

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

53

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

54

HH COLLAR SCREW M 6X75 WS=8

0015060753

$3.08

55

BUSH FOR SPOILER 6X11X16X7,5

50308053000

$5.70

60

GASKET SET CPL. RACING 2000

59030099000

$364.74
