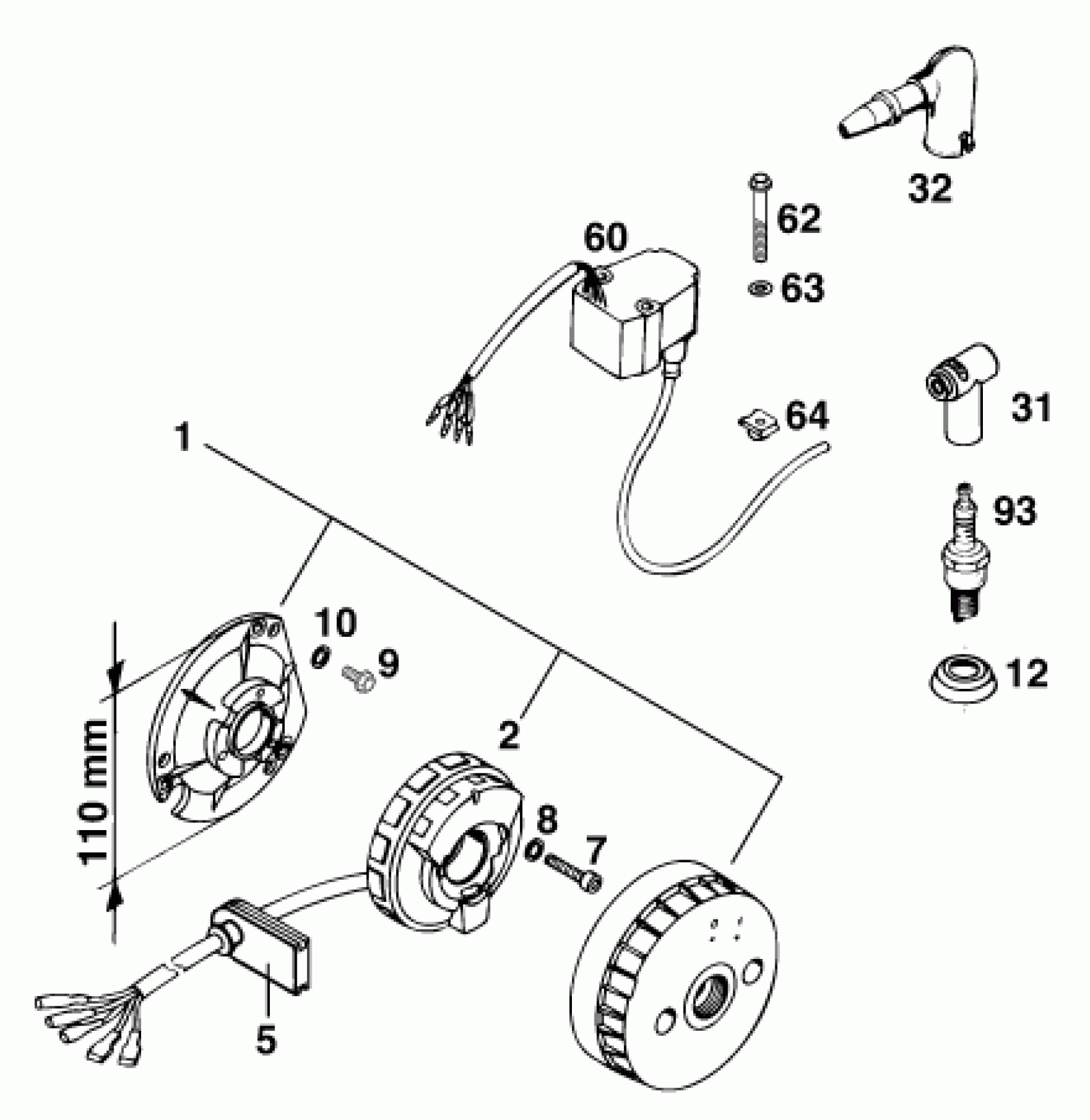

KTM 250 EXC M/Ö 13lt <1996> IGNITION SYSTEM Diagram

#

Description

Price

1

% IGNITION SEM KC COMET SX '92

54631002344

Unavailable

2

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

5

RUBBER PASSAGE

54631004300

$5.10

8

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

9

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

10

IGNITION COIL FACIND '94

54631806000

$55.45

11

SPARK PLUG CAP LB05EMH N

54531010000

$31.44

12

SPARK PLUG BR8EG

54331093310

$7.56

13

SEALING CUP FOR SPARK PLUG

50231012000

$4.11

20

DC-ELEKTRONIC BOX CONTEC SX'94

54631831000

$346.52

20

DIGITAL CONTROL BOX 360 SX'96

54731831000

$251.03
