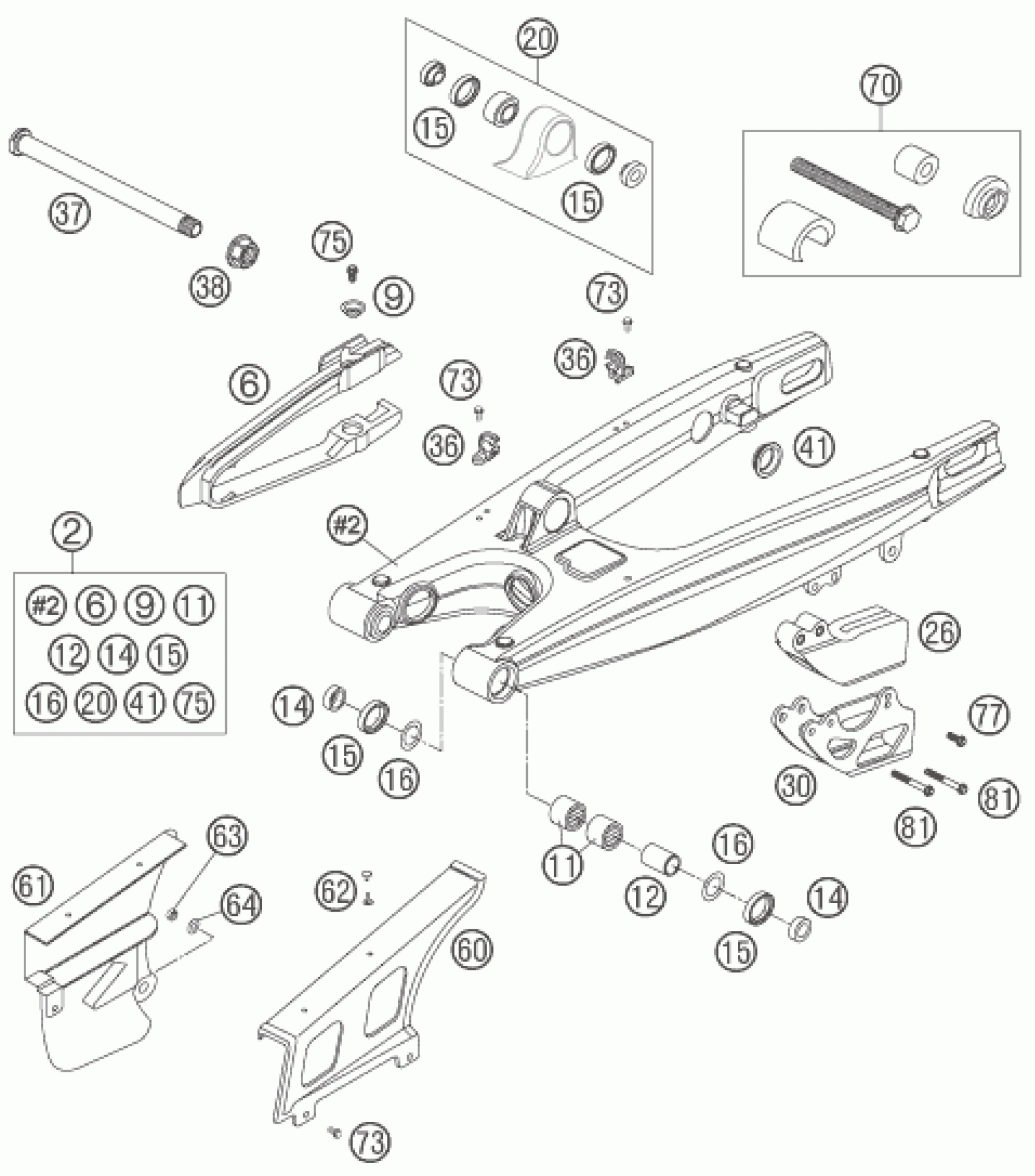

KTM 250 EXC FACTORY 2005 SWING ARM Diagram

#

Description
Price

2

SWINGARM CPL. 05

59404230144

Unavailable

6

CHAIN GUARD 05

50304066100

$25.52

9

BUCKET

72210079000

$3.00

11

NEEDLE BEARING HK2212V

59004031100

$9.81

12

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

14

Bucket f. shaft seal ring 03

54804034000

$5.23

15

radial shaft seal 25x32x7

0760253270

$6.63

16

STOP DISK 22,2X31,7X1

54603036000

$3.08

20

PIVOT BEARING+BUSH. PDS '99

50304090044

$64.69

26

CHAIN GUIDE REAR '94

54607066100

$28.60

30

RETAINING PLATE CPL.

54607070144

$31.41

36

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

37

SWINGARM BOLT M16X1,5 03

54804037000

$56.65

38

Nut with flange M16X1,5 WS=19

54804038000

$2.05

41

CLOSING COVER ROUND 03

58404041100

$1.49

60

CHAIN GUARD LARGE EGS

54607460000

$33.77

61

CHAIN GUARD SMALL EXC 2000

50304060100

$9.62

62

HOLLOW RIVET TWO PARTS

20012062055

$3.08

63

Self lock. nut DIN985-M6-A2

0985060003

$2.05

64

Washer DIN9021-A 6.4

0021060003

$2.05

70

TOOL BEARING MOUNTING PDS

50329000044

$752.92

73

SPECIAL SCREW M 5,0X10

0009050103

$2.05

75

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

77

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

81

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08
