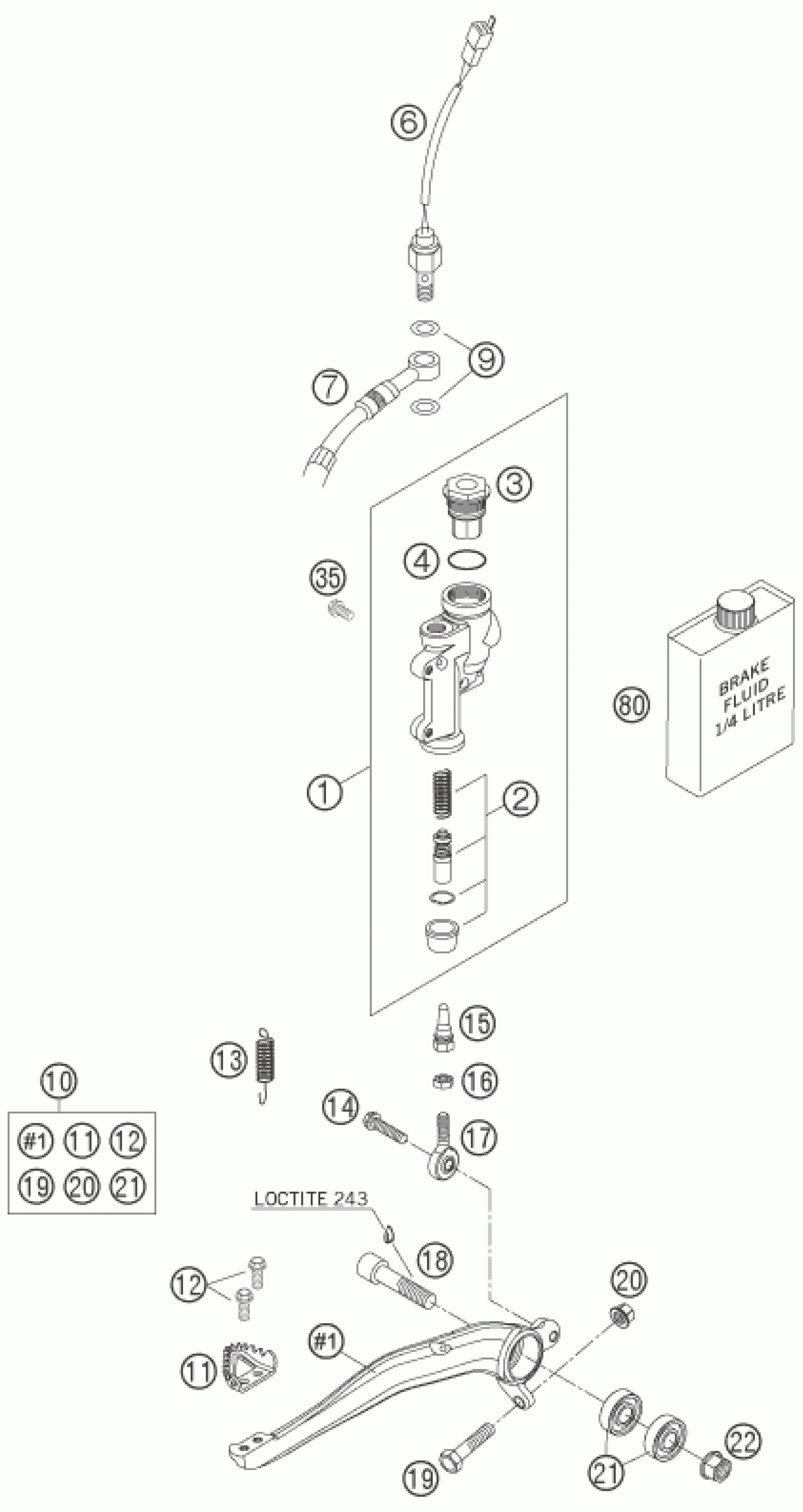

KTM 250 EXC FACTORY 2005 REAR BRAKE CONTROL Diagram

REAR BRAKE CYLINDER CPL. 2004

54813060100

$306.11

REPAIR KIT PISTON 13MM SX 03

54813061000

$54.78

REAR BRAKE CYL. COVER CPL. 04

54813062100

$45.06

FOOT-BRAKE CYL. GASKET SX 03

54813063000

$9.53

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

BRAKE HOSE REAR 655MM 03

54813070000

$109.01

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

FOOT BRAKE LEVER CPL. 03

54813050044

$120.89

STEP PLATE FOR BRAKE LEVER

54813051000

$11.02

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

PUSH ROD L=28MM 03

54813056000

$15.89

Hex. nut DIN 934 M6

0934060003

$1.49

SWIVEL HEAD KA6 03

54813055000

$19.91

AH SCREW DIN6912 M10X40 10.9

0912100406

$4.11

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

flanged nut M8 WS10

46030045000

$7.85

deep groove ball bearing SKF 6

0625060002

$12.33

COLLAR NUT M10 WS=13

54630044000

$1.49

BRAKE FLUID DOT 4.0

306054

Unavailable

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08
