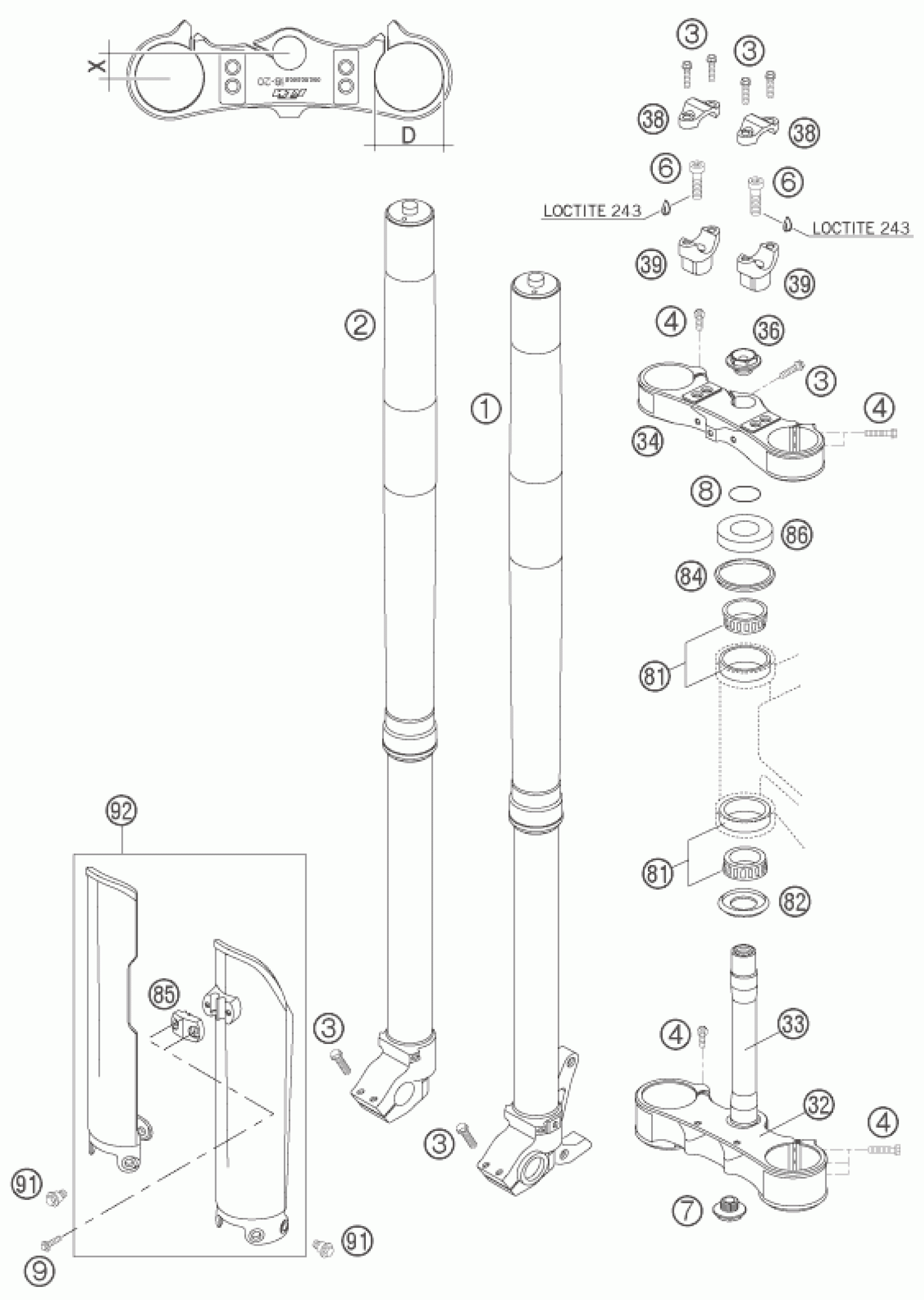

KTM 250 EXC FACTORY 2005 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK LEG L/S WP48 EXC, MXC 05

14187A06LS

Unavailable

2

FORK LEG R/S WP48 EXC, MXC 05

14187A06RS

$762.25

3

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

4

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

6

AH SCREW DIN6912-M10X35 10.9

0912100356

$4.11

7

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

$14.67

8

O-RING 25X3,55 NBR70 05

0770025035

$1.49

9

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

32

BOTTOM TRIPLE CLAMP D=60MM 05

5940103101988

Unavailable

33

FORK TUBE EXC L=237MM 05

59401033100

Unavailable

34

TOP TRIPLE CLAMP 54MM 05

5940103401988

Unavailable

36

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

38

HANDLEBAR CLAMP 28MM 05

59401038000

$25.05

39

Handlebar mount D28mm-H37mm

59401039037

$34.12

81

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

82

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

CLAMP F.SPEED.CABLE D=6MM 2001

59001085100

$3.08

86

STEERING HEAD COVER

54201086000

$8.50

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

FORK PROTECT L/S+R/S BLACK 02

5900109400030

$40.20
