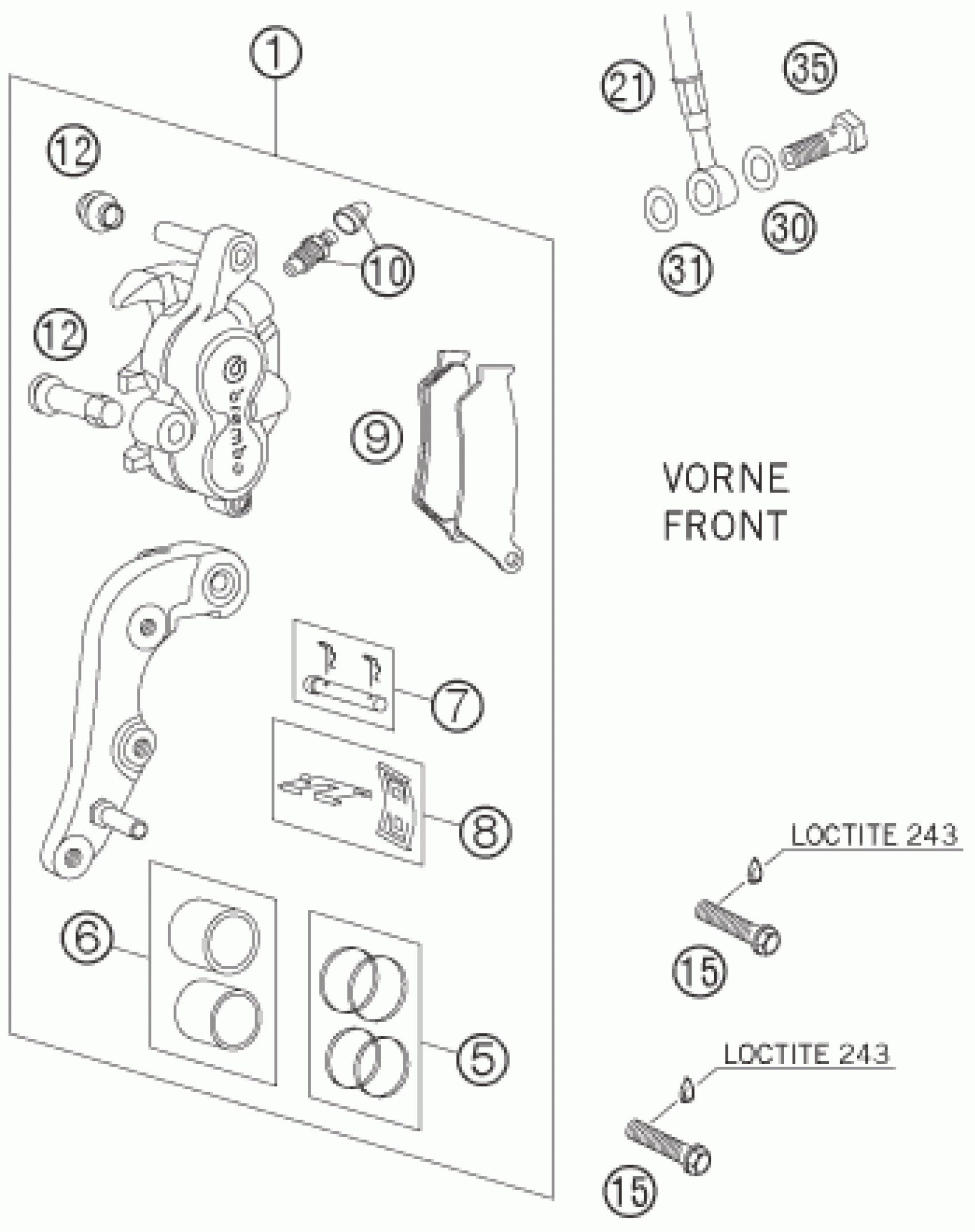

KTM 250 EXC FACTORY 2005 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

BRAKECALIPER FRONT BREMBO 00

59013015144

Unavailable

5

REPAIR KIT 28MM

54613205000

$20.19

6

REPAIR KIT PISTON 28MM

54613206000

$46.18

7

BOLT CPL. 6X56

54613210100

$20.09

8

RETAINING PLATE SET BREMBO

54613212000

$21.50

9

BRKP.SET FR.TOSHIBATT2701HHB

50313030100

$98.17

10

BLEEDER SCREW M10X1

54513214000

$7.38

12

CUP SET SHORT

54613218000

$23.55

15

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

21

BRAKEHO. FRONT 1300MM 2000

59013011000

$121.64

30

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

31

CU-SEAL RING DIN7603-10X16X1,5

42013026000

$2.05

35

HOLLOW SCREW M10X1X19

50213025000

$6.54
