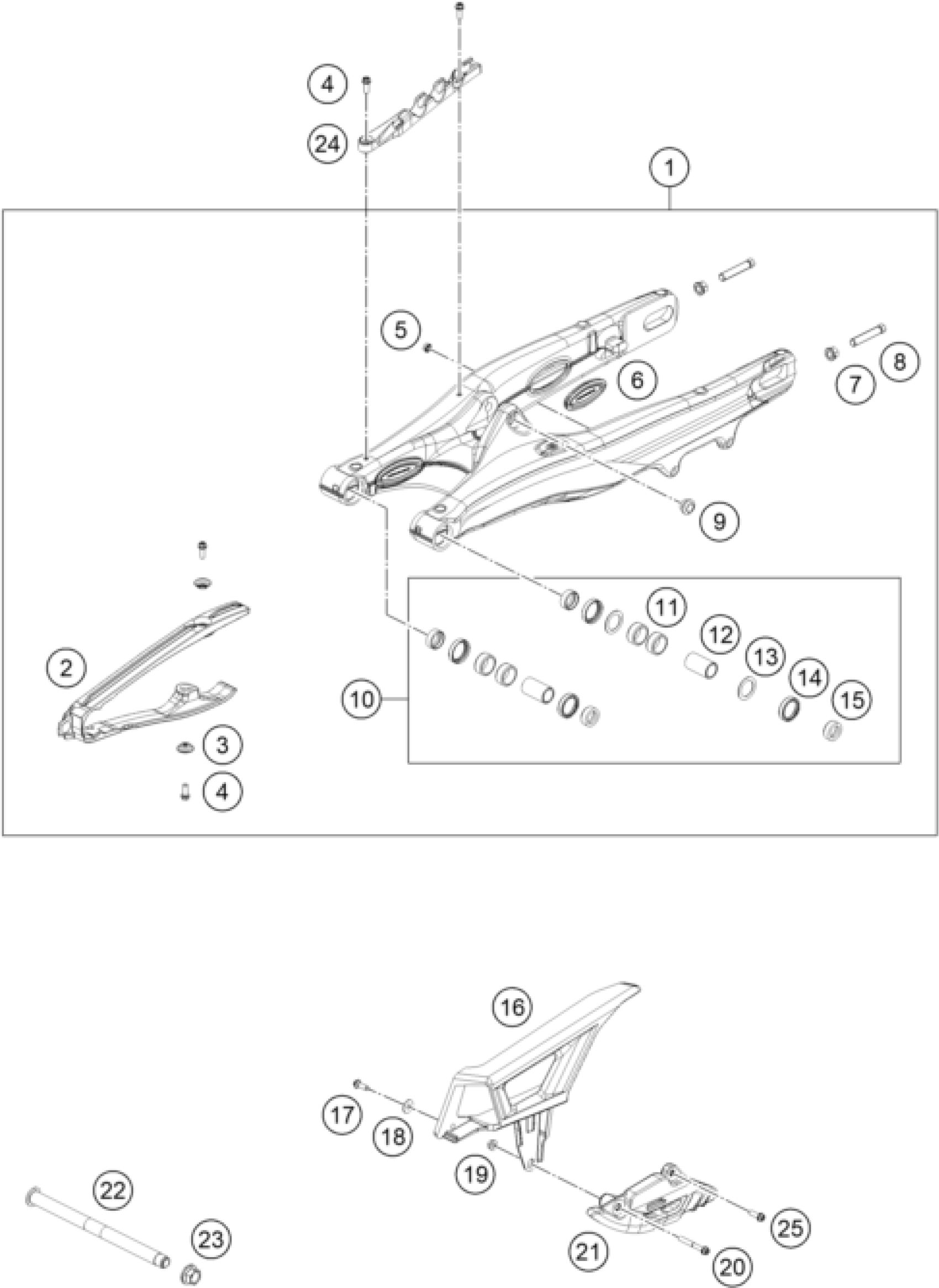

KTM 250 EXC-F SIX DAYS 2024 SWING ARM Diagram

#

Description
Price

1

Swingarm Enduro 2024

A49004230044

$737.80

2

Chain slider, left

A46004066000

$18.04

3

Chain slider bushing

77304066150

$1.49

4

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

5

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

6

Locking cap swingarm

A46004041000

$1.49

7

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

8

screw M10x1.25x50 WS10

50304040100

$5.23

9

Threaded bush M12 d20

50180105

$15.51

10

Repair kit swingarm bearing

79004030110

$130.05

11

Needle bushing HK2212V 22/28/1

0618222812

$9.81

12

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

13

STOP DISK 22,2X31,7X1

54603036000

$3.08

14

radial shaft seal 25x32x7

0760253270

$6.63

15

Support f. shaft seal ring 16

77704034000

$13.46

16

Chainguard

A49004060000

$26.92

17

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

18

Washer DIN9021-A 6.4

0021060003

$2.05

19

Self locking nut M6 - 10

56509064100

$2.05

20

HH collar screw M6x50 TX30

0025060506

$3.08

21

Chain guide

A46004070000EB

Unavailable

22

Swingarm pivot

A46004037000

$70.96

23

Nut with flange M16X1,5 WS=19

54804038000

$2.05

24

Brake line guide

A46004042000

$7.56

25

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05
