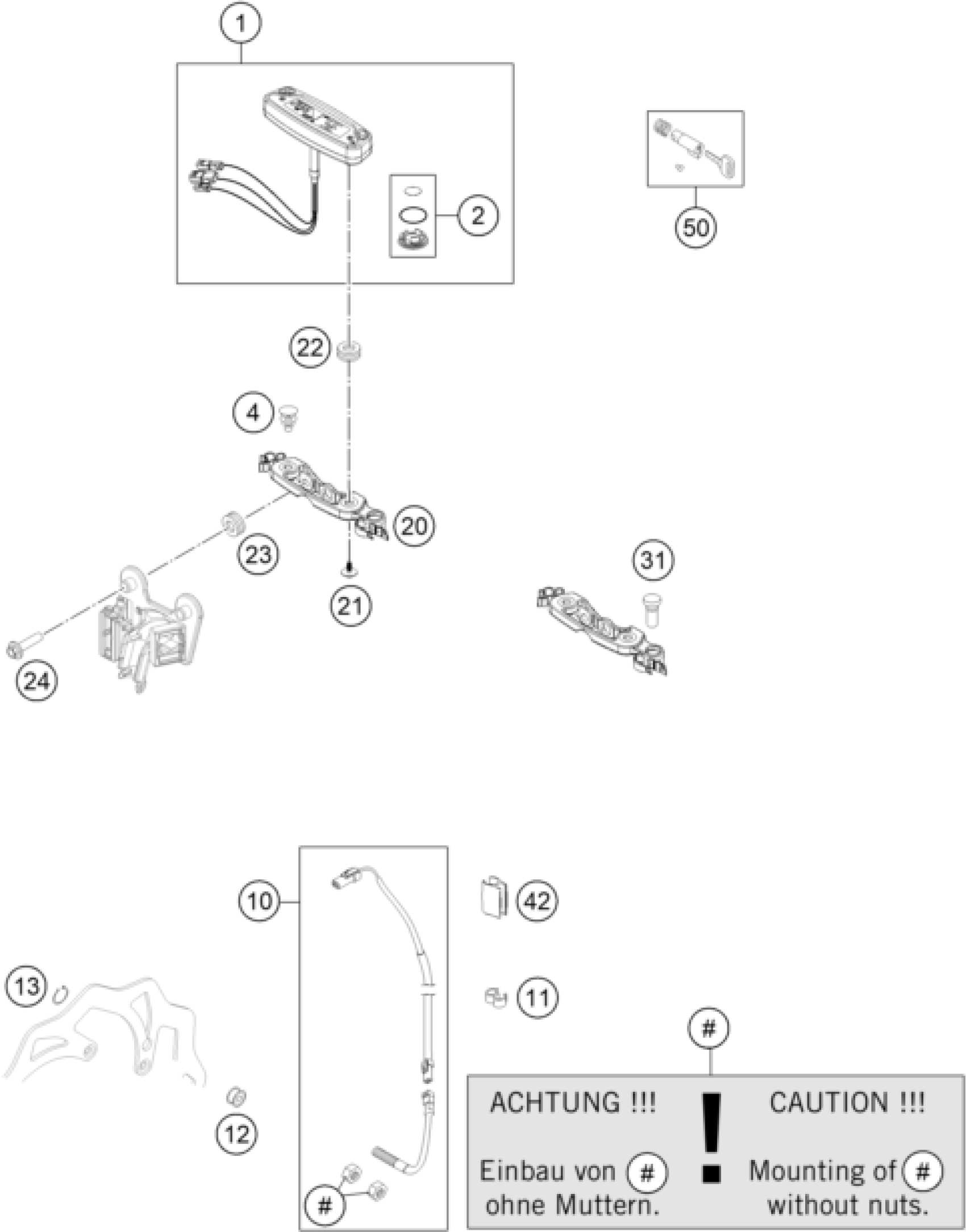

KTM 250 EXC-F SIX DAYS 2014 INSTRUMENTS / LOCK SYSTEM Diagram

SPEEDOMETER KM/H F. 21'' 1

77714069000

Unavailable

Plug SFL16

50210086000

$3.08

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

$78.91

CLAMP D=6/8MM, BLACK

55011022100

$2.05

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

$20.19

CIRCLIP DIN0471- 9X1 INOX

0471009104

$2.05

SPEEDOMETER BRACKET EXC/XCW 14

77714060000

$13.74

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

rubber grommet 16x10.8x3

58214069051

$5.23

rubber grommet D=8mm open

31008060000

$2.05

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

CABLE SUPPORT 10/6MM 06

54813026000

$2.05

FLASHER INDICAT.LIGHT GREEN'98

58011024300

$6.72

STEERING HEAD LOCK 08

78003035000

$20.94

BATTERY COVER F. SPEEDOMETER

77714069010

$32.90
