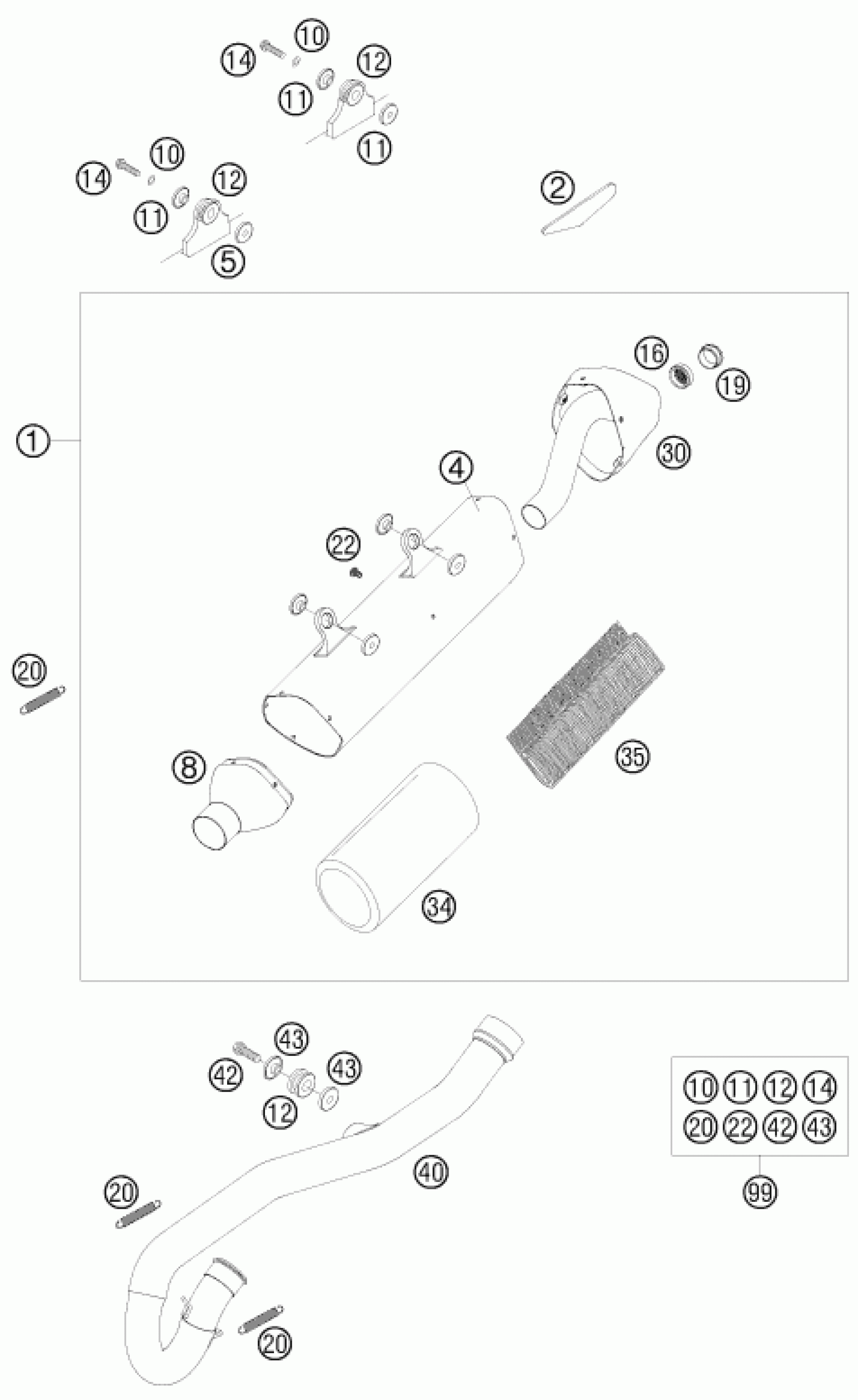

KTM 250 EXC-F SIX DAYS 2008 EXHAUST SYSTEM Diagram

#

Description
Price

1

SILENCER EXC-F THROTTLED 07

77005081000

Unavailable

2

THERMAL PROTECTION FOIL 07

77308013050

$9.62

4

SILENCER HOUSING EXC-F 07

77005081050

Unavailable

5

BUSHING SIL.-SMR REAR 2004

59405169000

$6.18

8

SIL. CONNECT. CAP CPL.EXC-F 07

77005081009

$119.12

10

spring washer DIN 137 B - 6

0137060003

$2.05

11

BUSHING 7.5x12x28x7.6 07

77305069000

$6.07

12

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

14

HH collar screw M6x30 TX30

0025060306

$3.08

16

THROTTLE ELEMENT CPL. EXC 07

77005081065

$15.89

19

SIL. ELEMENT EXC-F 07

77005081055

$9.81

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

22

SCREW TORX M5X10 05

58605083010

$2.05

30

ENDCAP EXC-F 07

77005081006

Unavailable

34

STUFFINGYARN 350 GRAMM '99

58705078350

$78.53

35

STUFFING YARN EXC-F 07

77005081016

$41.04

40

EXHAUST MANIFOLD 250 EXC-F 07

77005007100

$409.33

42

HH COLLAR SCREW M8X25 TX40

0025080256G

$2.05

43

BUSHING FOR EXHAUST SUPPORT 03

59405069000

$6.54

99

EXHAUST PARTS KIT 10-11

00050000809

Unavailable
