Description

Price

1

clutch master cilinder

A54002030044

Unavailable

7

lit clutch lever

A54002031000

Unavailable

3

clamp kit

A54013005000

Unavailable

2

clutch reservoir kit

A54002003000

Unavailable

4

clutch lever boot

A54002037000

Unavailable

5

kit clutch piston

A54002032000

Unavailable

6

Lever screw

A54013060000

Unavailable

8

sealing ring DIN 7603 10x14x1

0603100141

$2.05

9

bolt M10

A54013025000

Unavailable

10

clutch hose

A54032063000

Unavailable

99

Brake fluid DOT5.1 0,25L

00062030000

$12.52

98

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

14

kit bleeder M8

A54013094000

Unavailable

17

Slave cilynder

A54032061044

Unavailable

16

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

18

kit piston

A54032066000

Unavailable

19

HH collar screw M6x25 TX30

0025060256

$3.08

20

HH collar screw M6x16 TX30

0025060166

$3.08

15

O-RING 33,05X1,78

07703305178

$3.08

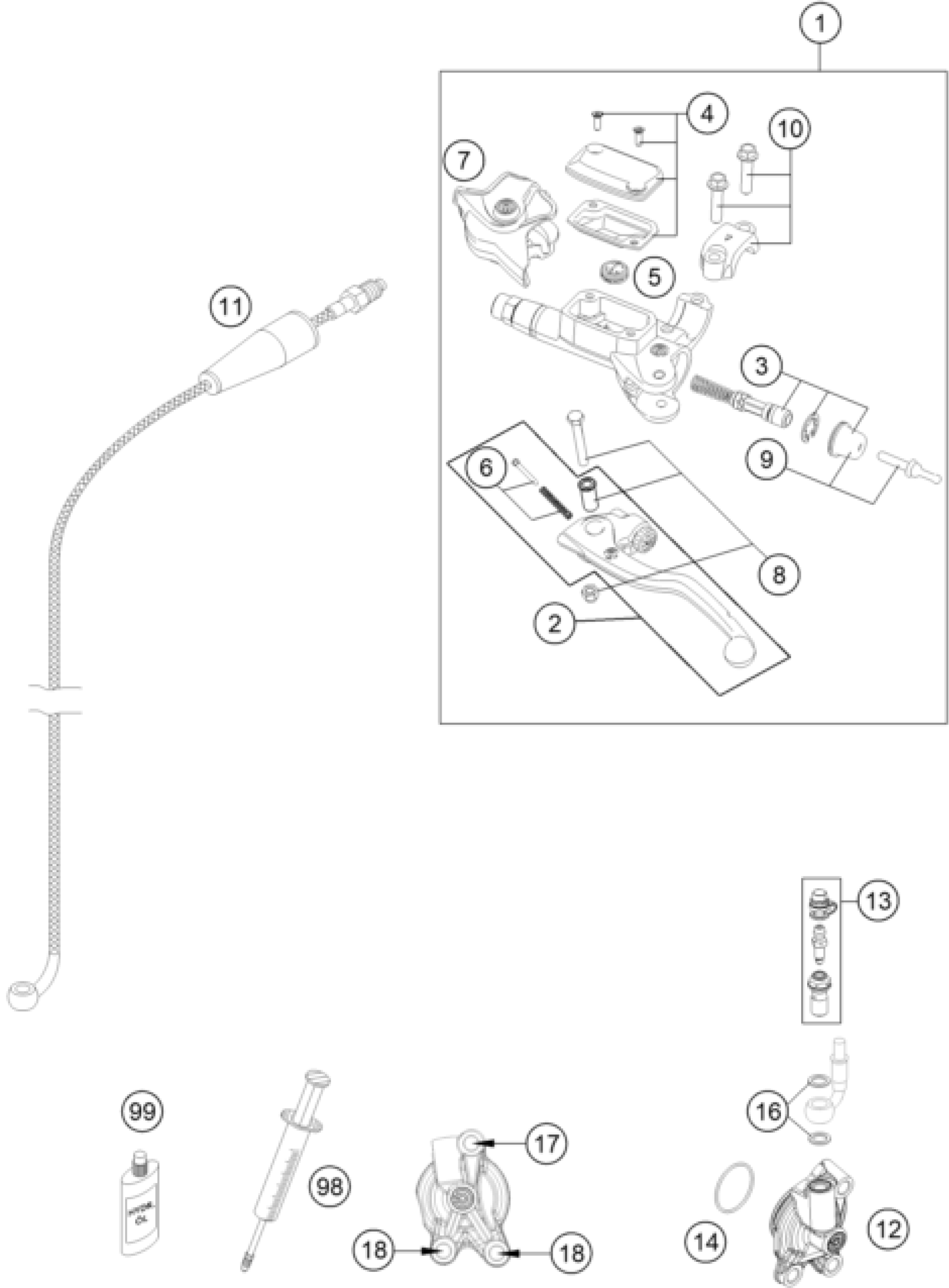

KTM 250 EXC-F CKD 2023 CLUTCH CONTROL Diagram

clutch master cilinder

lit clutch lever

clamp kit

clutch reservoir kit

clutch lever boot

kit clutch piston

Lever screw

sealing ring DIN 7603 10x14x1

bolt M10

clutch hose

Brake fluid DOT5.1 0,25L

VENT INJEKTION HYDR. CLUTCH

kit bleeder M8

Slave cilynder

SEAL RING CU DIN7603- 8X12X1

kit piston

HH collar screw M6x25 TX30

HH collar screw M6x16 TX30

O-RING 33,05X1,78
