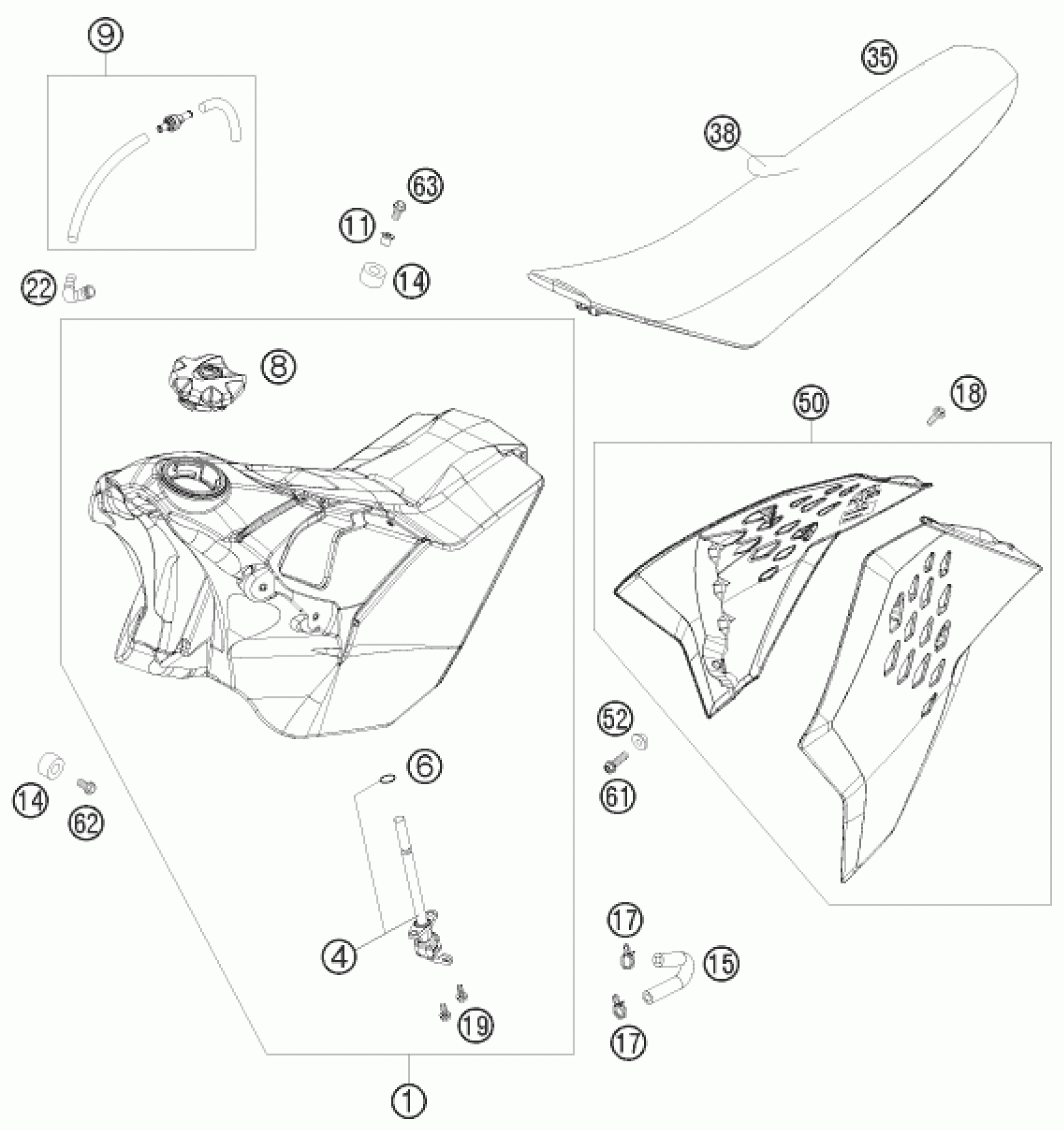

KTM 250 EXC-F CHAMPION EDIT. 2010 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. 9,5L EXC 08

7700721306630

$274.86

4

GAS COCK ON/OFF/RES 08

78007004000

$28.04

6

O-RING 11X2 VITON

0770110021

$2.05

8

TANK PLUG ORANGE/BLACK

7800700804404

$29.07

9

TANK BREATHER HOSE + VALVE

78007029000

$21.68

11

TANK BUSHING 07

77307026000

$4.11

14

TANK ROLLER 12X26X12 '98

50307014000

$11.02

15

FUEL HOSE 7,5X13MM

59007016000

$13.46

17

CLAMP YDNAC 10128 12MM

58031005000

$3.08

18

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

19

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

22

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

35

SEAT SX 07

77307040000

$153.80

38

SEAT COVER 07

77307040050

$54.22

50

SPOILER SET BLACK

7730805410030

Unavailable

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

61

HH collar screw M6x20 TX30

0025060206

$3.08

62

HH collar screw M6x12 TX30

0025060126

$3.08

63

COLLAR SCREW M6X27 TX

0024060273

$3.08
