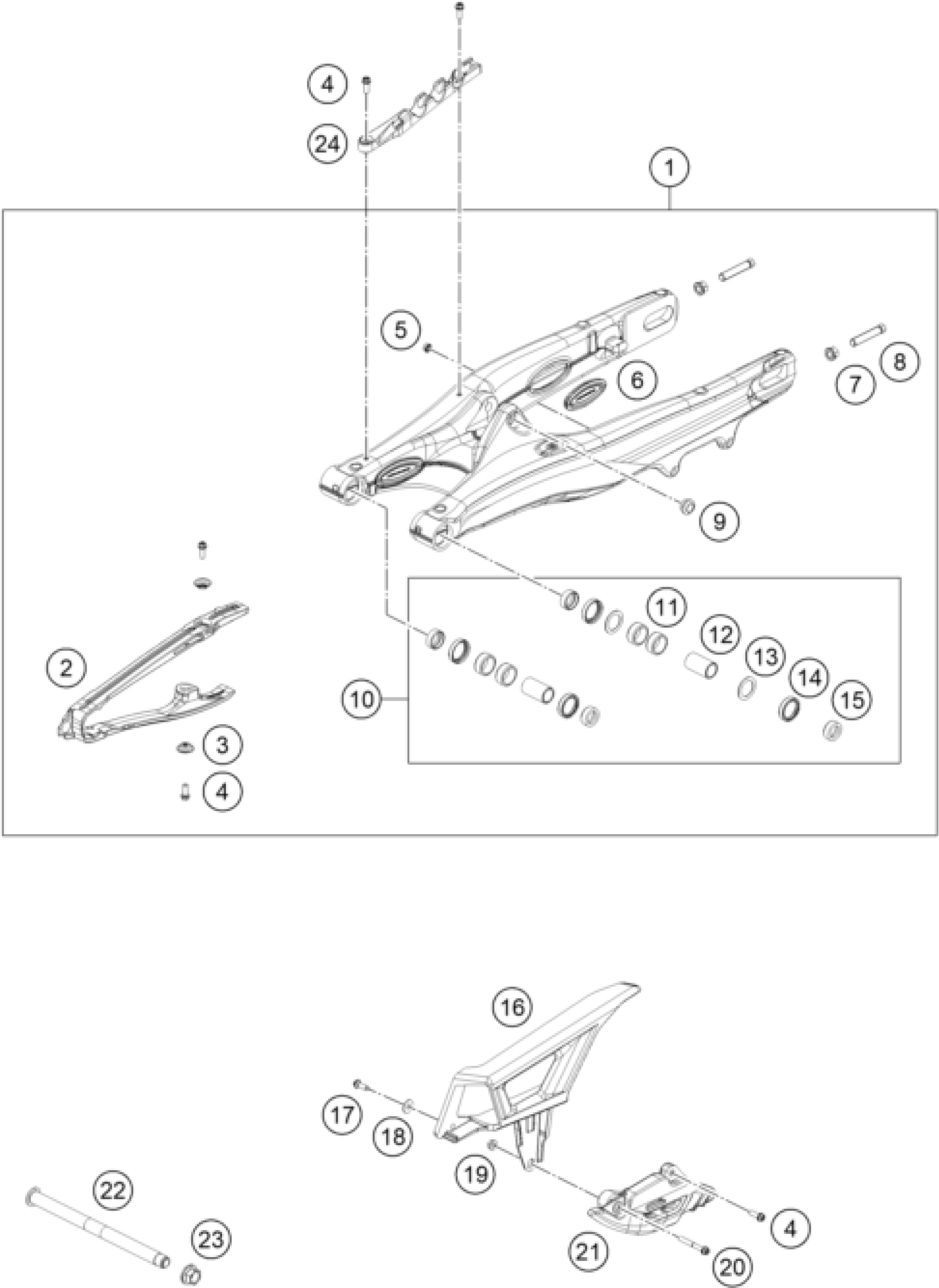

KTM 250 EXC-F 2025 SWING ARM Diagram
#
Description
Price
1
Swingarm cmpl. Enduro 2025
A49004230144
$687.22
2
Chain slider
A46004066100
$20.66
3
Chain slider bushing
77304066150
$1.49
4
HH collar screw M6x16 TX30 SL
0025060166S
$2.05
5
PRESS IN NUT M6 STEEL ZINC
54603055051
$2.05
6
Locking cap swingarm
A46004041000
$1.49
7
HH COLLAR NUT M10X1,25 WS=13
58414030000
$2.05
8
screw M10x1.25x50 WS10
50304040100
$5.23
9
Threaded bush M12 d20
50180105
$15.51
10
Repair kit swingarm bearing
79004030110
$130.05
11
Needle bushing HK2212V 22/28/1
0618222812
$9.81
12
Bearing sleeve 17x22x38.7 03
59404032000
$10.09
13
STOP DISK 22,2X31,7X1
54603036000
$3.08
14
radial shaft seal 25x32x7
0760253270
$6.63
15
Support f. shaft seal ring 16
77704034000
$13.46
16
Chainguard
A49004060000
$26.92
17
SCREW FOR PLASTIC K60X20 SW6
0017060205
$2.05
18
Washer DIN9021-A 6.4
0021060003
$2.05
19
Self locking nut M6 - 10
56509064100
$2.05
20
HH collar screw M6x50 TX30
0025060506
$3.08
21
Chain guide EXC
A49004070100C1
$29.44
22
Swingarm pivot
A46004037000
$70.96
23
Nut with flange M16X1,5 WS=19
54804038000
$2.05
24
Brake line guide
A46004042000
$7.56
