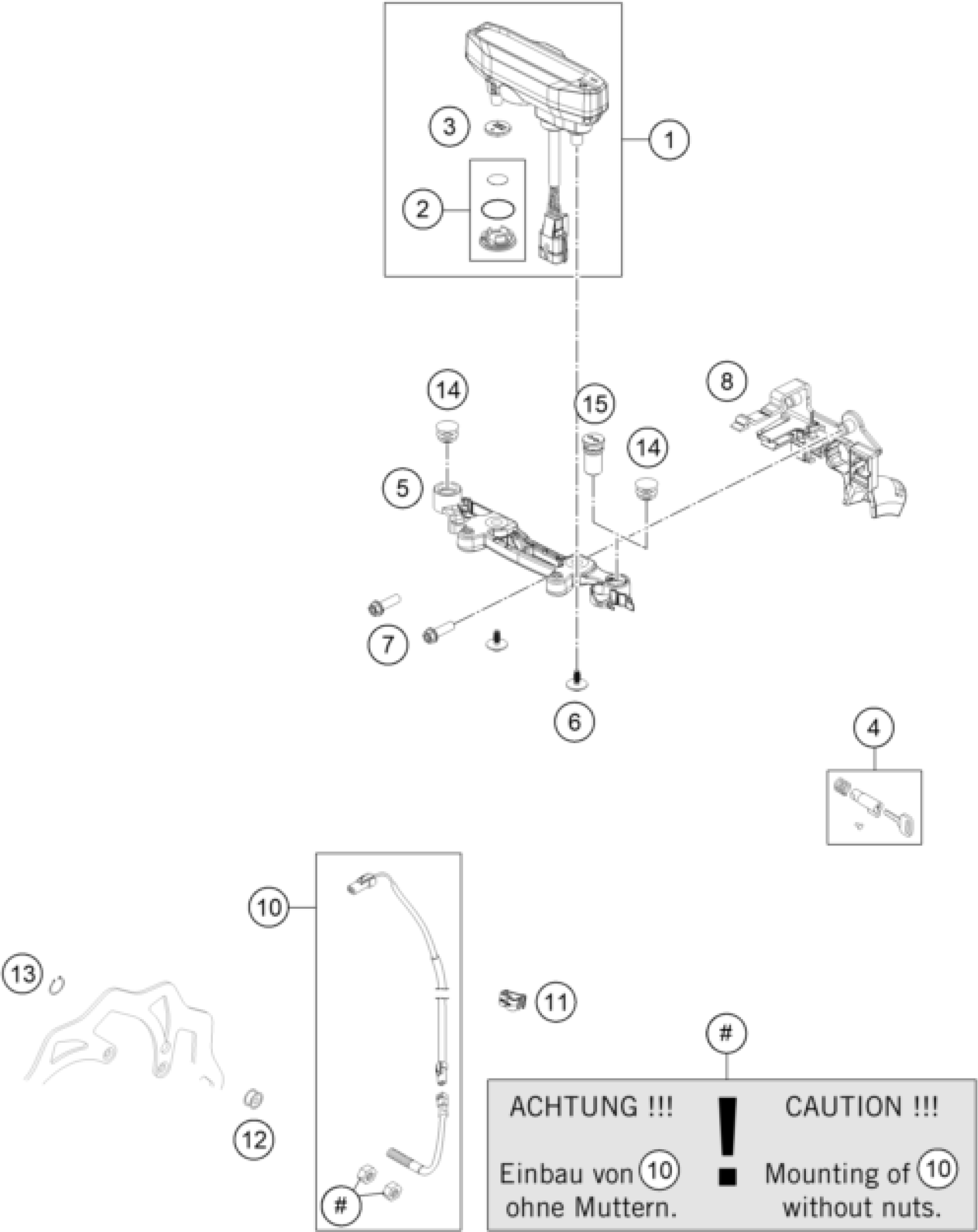

KTM 250 EXC-F 2024 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

1

Dashboard

A49014069000

$226.54

2

BATTERY COVER F. SPEEDOMETER

77714069010

$32.90

3

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

$9.81

4

Steering lock

78003035100

$20.94

5

Instrument cluster

A49014060000

$15.61

6

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

7

HH collar screw M6x20 TX30

0025060206

$3.08

8

Connector support

A49011083000

$18.13

10

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

$78.91

11

Line guide

83013026000

$3.08

12

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

$20.19

13

CIRCLIP DIN0471- 9X1 INOX

0471009104

$2.05

14

Plug SFL16

50210086000

$3.08

15

FLASHER INDICAT.LIGHT GREEN'98

58011024300

$6.72
