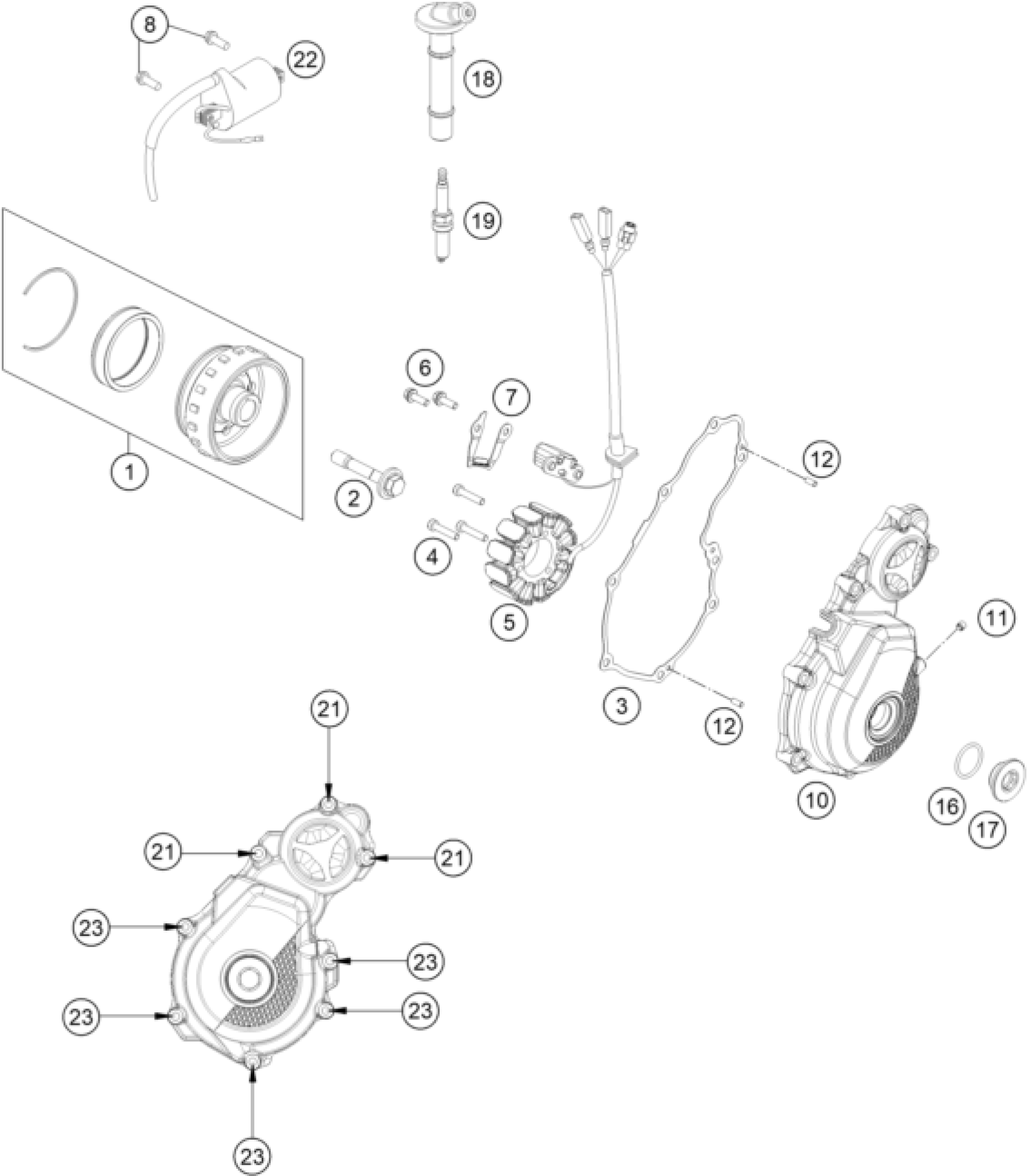

KTM 250 EXC-F 2024 IGNITION SYSTEM Diagram

#

Description
Price

1

Rotor cpl.

79239105144

$201.39

2

FLYWHEEL SCREW

77339010100

$5.60

3

Ignition cover gasket

A46030040000

$8.97

4

Cap head screw DIN 6912 - M5x3

0012050303S

$1.49

5

Stator

79239104100

$226.73

6

Cap head screw DIN912 - M5x16

0912050163S

$1.49

7

Cable retainer

A46030502050

$4.11

8

HH collar screw M6x20 TX30

0025060206

$3.08

10

Ignition cover

A46030502000C1

$122.85

11

THREAD PIN DIN 913 M5X6

0913050063S

$1.49

12

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

16

O-RING 24X2,5 NBR

0770024025

$3.08

17

SCREW PLUG M24X1,5

7723000216030

$36.64

18

Resistor Plug Cover

79139090000

$58.99

19

spark plug

77839093000

$22.71

21

HH collar screw M6x30 TX30

0025060306

$3.08

22

Ignition coil

58439006000

$75.45

23

HH collar screw M6x40 TX30

0025060406

$3.08
