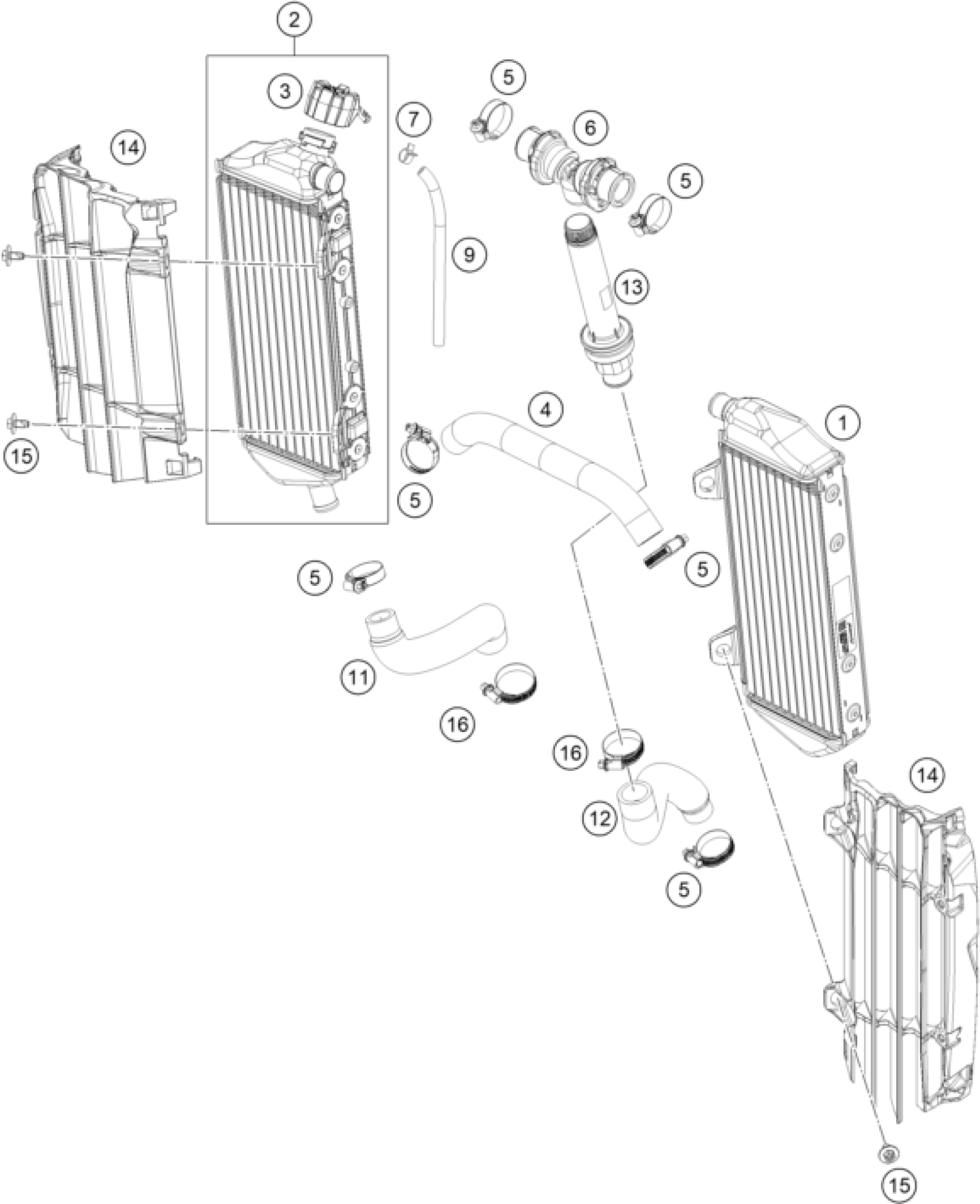

KTM 250 EXC-F 2024 COOLING SYSTEM Diagram

#

Description
Price

1

Radiator left

A46035007000

$109.67

2

Radiator right

A46035008000

$138.00

3

Radiator cap

A46035009000

$16.54

4

Pre-formed hose radiator left/

A46035025000

$11.30

5

Hose clip 18-29

0310000902900

$2.05

6

Y-piece cmpl.

A46035071044

$17.48

7

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

9

PVC-HOSE 6X9

50335030001

Unavailable

11

Pre-formed hose engine/radiato

A46035024000

$12.99

12

Pre-formed hose, engine/riser

A46035023000

$13.46

13

Screw-in nozzle with thermo.re

A49035073033

$68.06

14

Radiator protection set, black

A46035036044C1

$53.10

15

HH ISR collar screw M6x12-10.9

0900000601203

$1.49

16

Hose clip 20-32

0310000903200

$2.05
