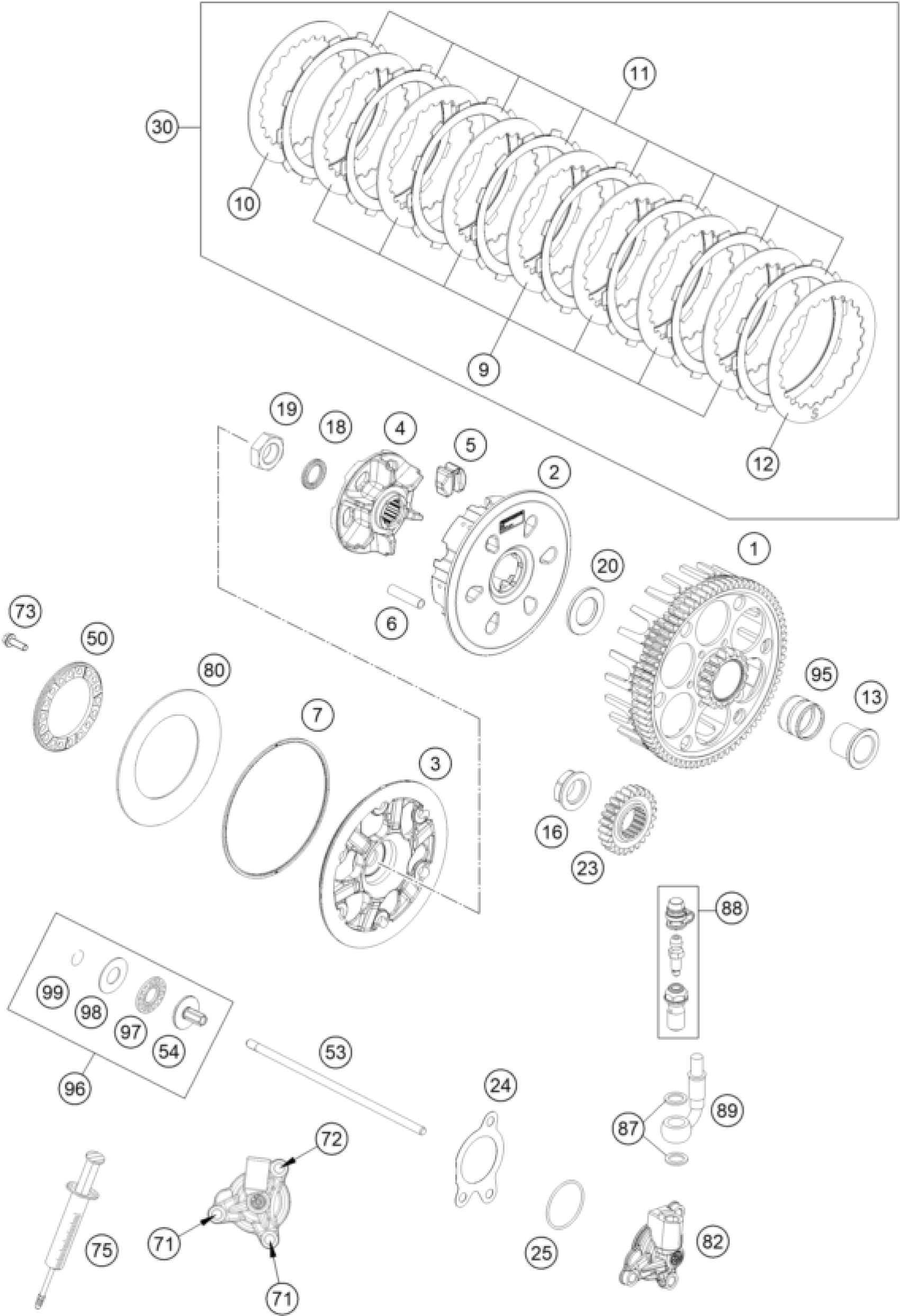

KTM 250 EXC-F 2023 CLUTCH Diagram

#

Description
Price

1

CLUTCH BASKET EXC

79232201073

$268.80

2

Inner clutch hub

78132002400

$102.56

3

Clutch pressure plate

79432003100

$23.74

4

Clutch center

78132002211

$67.12

5

DAMPING RUBBER

78132025100

$4.11

6

DRIVING SLEEVE D=7,95 L=38

77232004000

$3.08

7

WASHER 112X118X1.5

78132013000

$10.84

9

INTERMEDIATE DISC 1,4MM 2002

59032010200

$10.93

10

INTERMEDIATE DISC 1MM 2002

59032010100

$9.81

11

Lining disc 1,95mm

79532011000

$22.43

12

INTERMEDIATE DISC 1MM

78932010000

$12.05

13

INNER RING

77232015000

$20.66

16

Nut M18x1.5 Precote

0910001801000S

$4.29

18

Wedge lock washer 19.5x29x3.4

0252012002900

$3.08

19

Hex nut DIN0936-M18x1.5 right

0936181506

$3.08

20

WASHER 21,8 X 37 X 5,1

77232009000

$8.13

23

gear primary drive

79232023124

$101.44

24

GASKET FOR OUTPUT CYLINDER

79232065000

$7.75

25

O-ring 30x1.5 NBR 70

0770300015

$2.05

30

Clutch plate pack

79532010033

$209.15

50

Spring retainer

78132006200

$10.84

53

PUSH ROD

79232054000

$18.41

54

PRESSURE PIECE

78032057000

$26.08

71

HH collar screw M6x16 TX30

0025060166

$3.08

72

HH collar screw M6x35 TX30

0025060356

$3.08

73

HH collar screw M5x16 TX30

0025050166

$2.05

75

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

80

BELLEVILLE SPRING 71X115X1,5 I

78132005000

$31.97

82

OUTPUT CYLINDER CPL.

79232061044

$187.65

87

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

88

BLEEDER SCREW CPL.

79032064000

$30.38

89

CLUTCH PIPE

79232063000

$112.38

95

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

96

PRESSURE PIECE CPL. 08

78032057044

$26.08

97

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

98

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

99

CIRCLIP DIN7993-RW12

0993012000

$3.08
