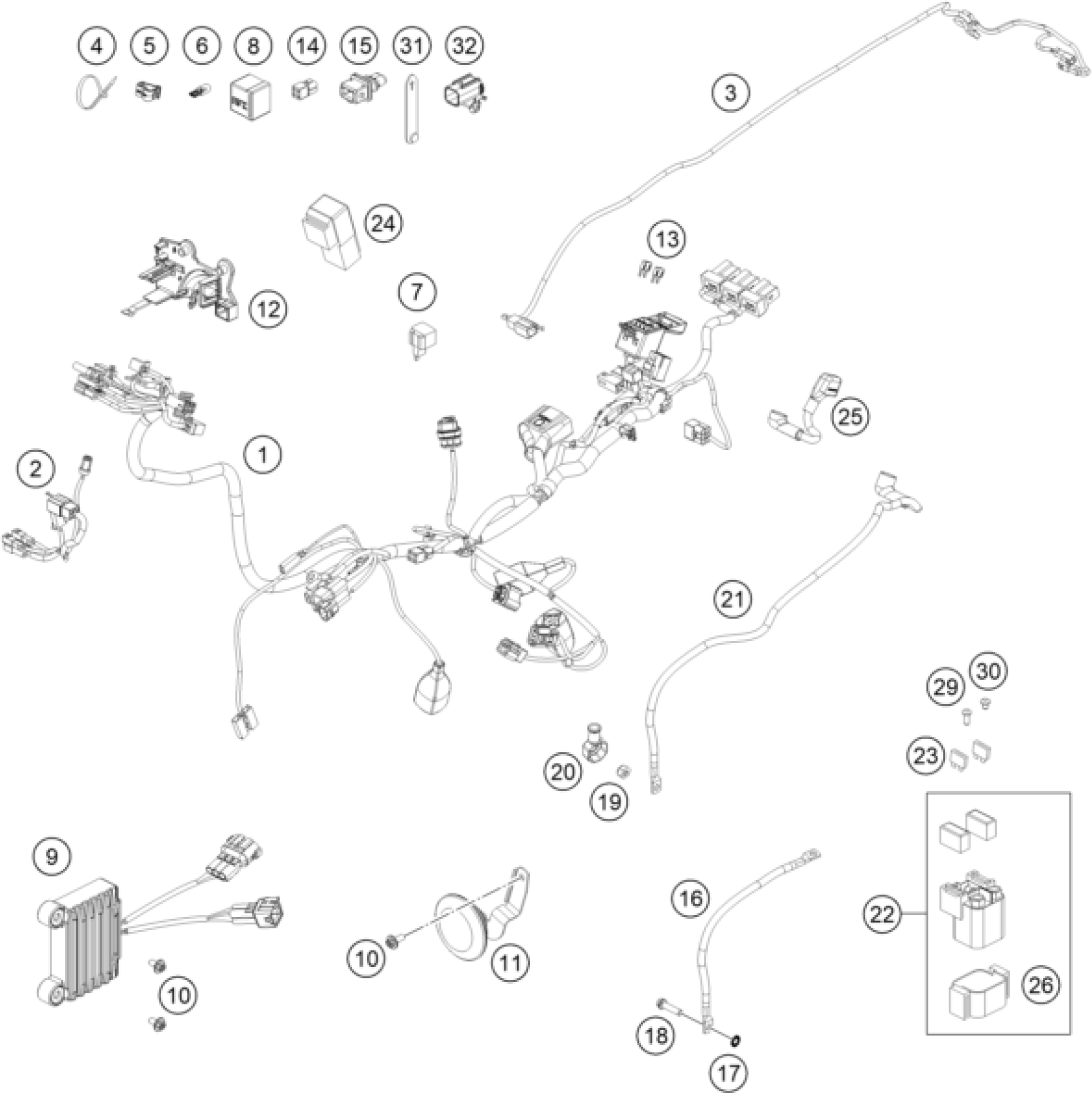

KTM 250 EXC-F 2022 WIRING HARNESS Diagram

#

Description
Price

1

Main harness

79711075100

Unavailable

2

Flasher harness front

72111080000

$63.10

3

flasher harness rear

79711081000

$23.93

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

$3.08

6

BULB 12V 2,3W (W2X4,6D)

49111425200

$2.05

7

FLASHER UNIT

76511030000

$23.18

9

VOLTAGE REGULATOR

79611034000

$192.32

10

HH collar screw M6x15 TX30

0024060156

$3.08

11

Horn, cmpl.

79711060033

$32.44

12

Connector support

79711083000

$14.87

13

FUSE MINI 5A

75011088005

Unavailable

13

FUSE 10A 07

75011088010

Unavailable

14

Dummy plug 4-pins

000700000AN01

$8.87

15

Dummy plug LV 2p/sealed

000700000LV001

$5.79

16

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

17

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

18

HH collar screw M6x25 TX30

0025060256

$3.08

20

Protection cap for starter eng

77240099000

$6.35

21

Starterkabel

25111059000

$20.94

22

Starter reley 12V 99

58211058000

$72.64

23

Plug-in fuse, big 20A

58011109120

$1.49

24

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

25

Batteriekabel

25111059050

$20.66

26

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23

29

Oval head screw AH socket M6x1

0738060167

$1.49

30

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

31

RUBBER CABLE TIE 60MM 03

60011093060

$4.11

32

Plug cap

000700000OU002

$24.21

8

Relay cover

000700000EB01

Unavailable

31

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

19

Self lock. nut DIN985-M6-A2

0985060003

$2.05
