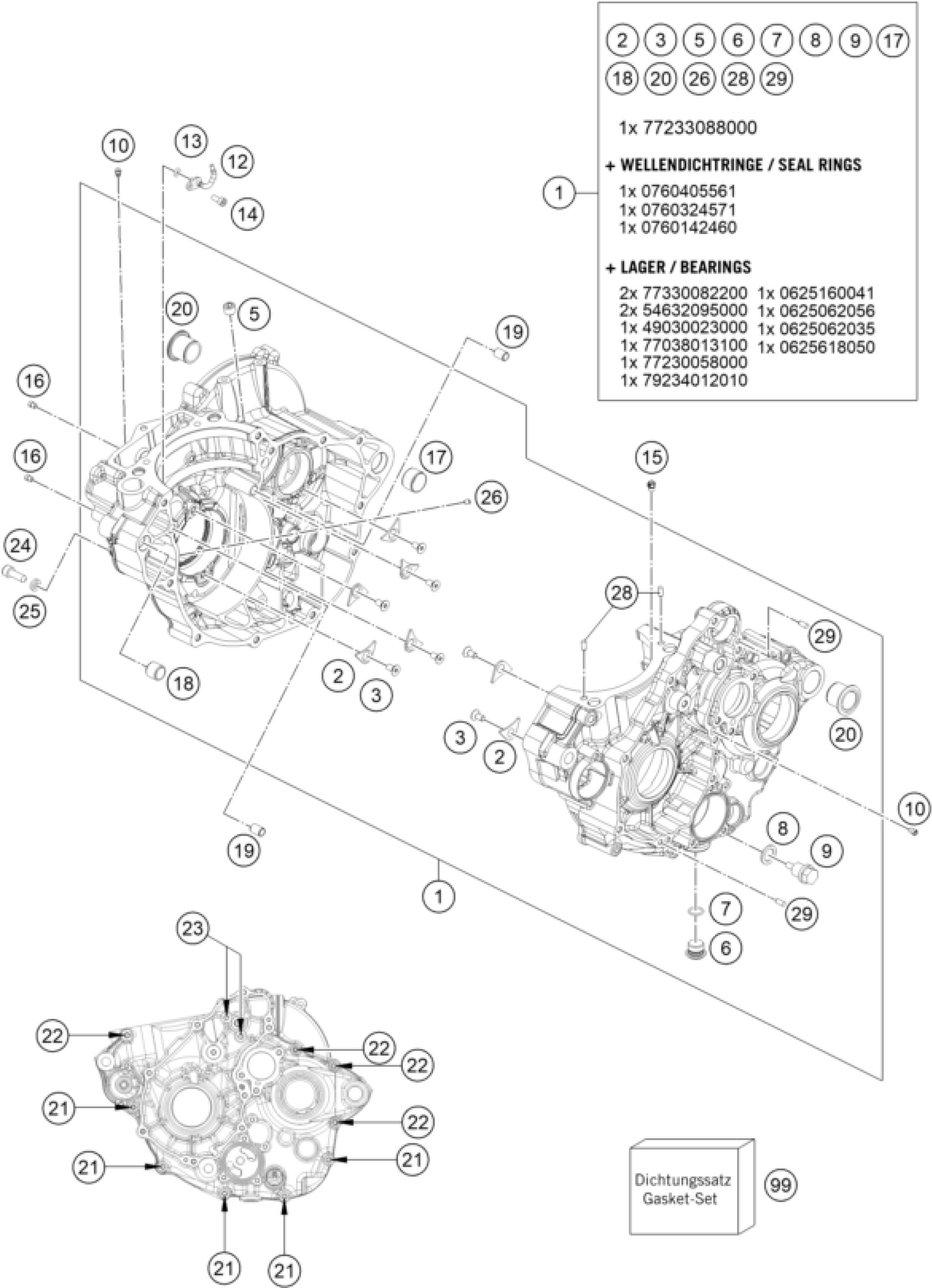

KTM 250 EXC-F 2021 ENGINE CASE Diagram

Engine case cmpl.

79330000044

$2,061.67

RETAINING PLATE F. CS BEARING

75030085000

$1.49

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

pipe plug DIN 906 M10x1

0906100100

$4.11

HOLDING BOLT M14X1,5

78036081000

$3.08

O-ring 11x1.5 VITON

0770110015

$5.23

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

OIL JET ''60'' M4

80030058060

$11.87

OIL JET ANGLED 50

81230164050

$11.30

O-RING 3,5X2,00 NBR

0770035020

$1.49

Cylinder screw DIN 912-M4x10-8

0912040103S

$1.49

oil jet 50 M5

60030063050

$9.44

JET 100 BING(44-031/180) M4

59030058000

$4.11

DOWEL 17 X 19 X 12

59030024000

$5.23

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

dowel sleeve 6x8x11.5

59030023000

$1.49

Housing bush

79230010000

$11.87

HH collar screw M6x55 TX30

0025060556

$3.08

HH COLLAR SCREW M6X65 TX30

0025060656

$2.05

HH COLLAR SCREW M6X70 TX30

0025060706

$3.08

LOCATING SCREW M8 L=25

77730080000

$4.11

CU-SEAL RING 8 X 14 X 3

58030081000

$2.05

Nozzle

79330058040

$8.97

CYLINDER ROLLER ZRO 5X8

0402050080

$2.05

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

Engine sealing kit 250 Enduro

79130099000

Unavailable
