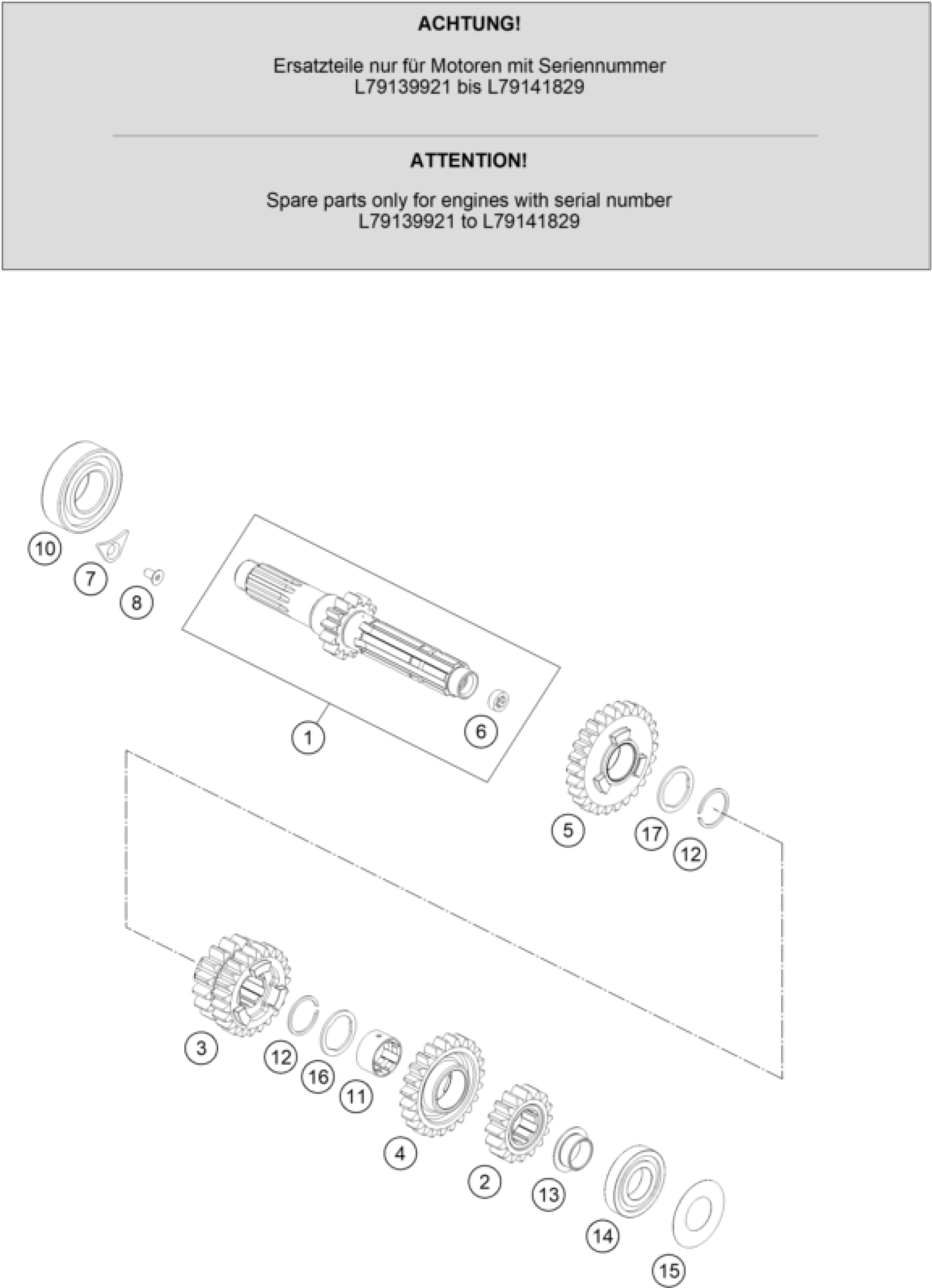

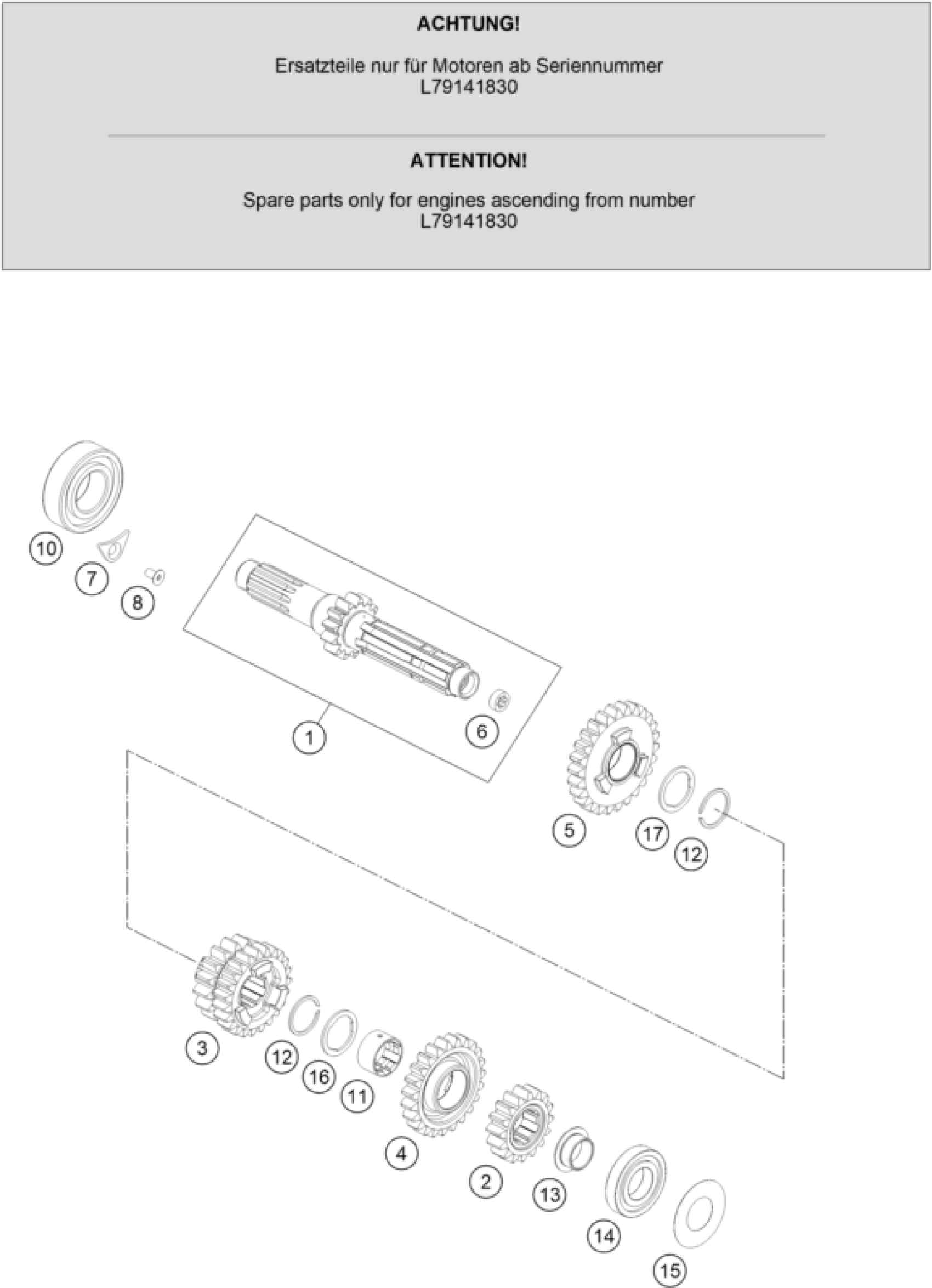

KTM 250 EXC-F 2020 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

Main shaft cmpl. 13teeth

79133101000

$171.38

2

Fixed gear, 2nd gear, teeth=16

79133102000

$35.24

3

Sliding gear, 3rd/4th gear, te

79133103000

$165.49

4

Idler gear, 5th gear, teeth=23

79133105000

$164.93

5

Idle gear, 6th gear cmpl.

79133206000

$129.12

6

bushing

79133001010

$8.50

7

RETAINING PLATE F. CS BEARING

75030085000

$1.49

8

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

10

Groove ball bearing 6205 C4 NT

0625062056

$14.02

11

IDLER GEAR BUSHING

77733024000

$25.98

12

LOCK RING 22X1,2

50133090000

$2.05

13

bushing

79133027000

$41.97

14

BALL BEARING TM 16004 C4

0625160041

$19.44

15

SPACER SHIM 21X42X0.2

77233088000

$5.79

16

STOP DISC

77733021000

$4.11

17

STOP DISC

77733022000

$4.11
