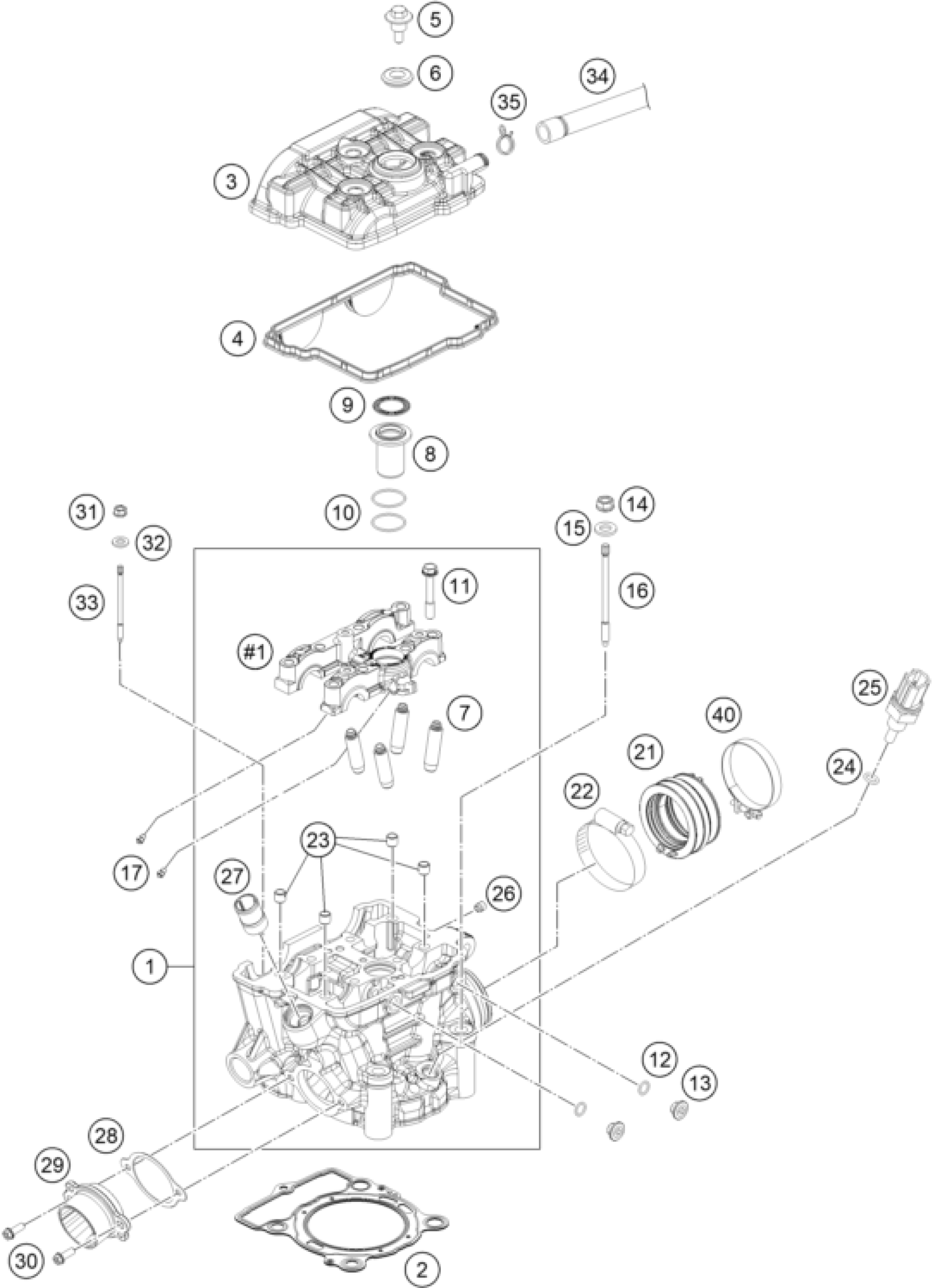

KTM 250 EXC-F 2020 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD CPL.

79036120044

Unavailable

2

CYLINDER HEAD GASKET

79030036096

Unavailable

3

VALVE COVER

7773605200033

$56.09

4

VALVE COVER GASKET

77736053000

$15.70

5

VALVE COVER SCREW

77336054150

$5.23

6

RUBBER GASKET FOR SCREW

77036054150

$4.11

7

VALVE GUIDE OUTLET

77136026001

$27.85

8

INSERT SPARK-PLUG SHAFT

77736075000

$18.88

9

GASKET SPARK-PLUG SHAFT

77336053050

$5.88

10

O-RING 1,5x26

0770260015

$3.08

11

Collar screw M7x1x42

77330067242

$1.49

12

O-RING 9x1,5 V80 SH

07700900151

$2.05

13

threaded plug

77236080100

$6.63

14

COLLAR NUT M10X1,25 SW13

77336088210

$2.05

15

washer 19x10.5x2.5

77336089010

$4.11

16

STUD BOLT M10X1,25

79230044000

$10.46

17

oil jet 50 M5

60030063050

$9.44

21

RUBBER CUP

79236044100

$38.70

22

Hose clamp GEMI 63mm 05

61036047000

$7.56

23

DOWEL(BUSH BRIDGE)7/9/8 05

77036090000

$5.23

24

o-ring 10.00x2.00 silicone

0770100020

$2.05

25

water temperature sensor

79435047000

$23.74

26

SCREW PLUG

59030296000

$6.26

27

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

28

GASKET EXHAUST FLANGE

77236041000

$10.93

29

Exhaust flange

79136039000

$31.97

30

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

31

COLLAR NUT M6X1 SW8

77336088106

$12.61

32

WASHER DIN0125-A 6,4

0125060003

$1.49

33

STUD BOLT M6

79230043000

$7.66

34

ENGINE BREATHER TUBE

77538087000

$11.02

35

CLAMP YDNAC 10173 (18MM)

58431082300

$2.05

40

Hose clip GEMI 58

77236048000

$12.05
