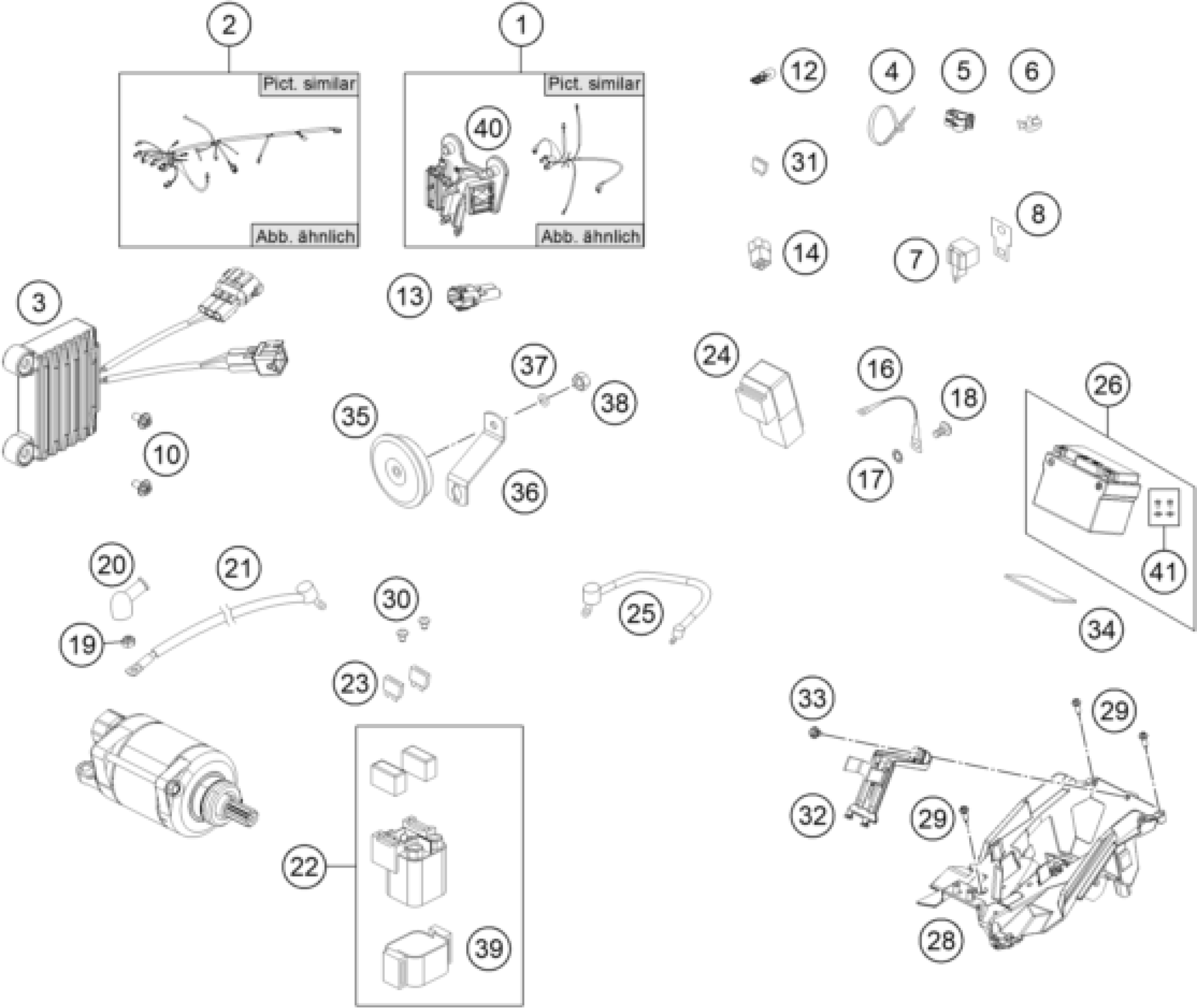

KTM 250 EXC-F 2019 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS LIGHT CPL. EU

77711079000

$83.95

2

MAIN WIRING HARNESS EXCAUS2017

79611075100

Unavailable

3

VOLTAGE REGULATOR

79611034000

$192.32

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

$3.08

6

WIRING HOLDER 16MM

57013072100

$1.49

7

FLASHER UNIT

76511030000

$23.18

8

BRACKET FOR FLASHER RELAY

58211031100

$5.70

10

HH collar screw M6x15 TX30

0024060156

$3.08

12

BULB 12V 2,3W (W2X4,6D)

49111425200

$2.05

13

END PLUG CAN-BUS 08

69011040000

$20.00

14

DUMMY PLUG AN 4-PIN

81211096000

$8.69

16

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

17

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

18

HH collar screw M5x12 TX30

0025050126

$3.08

19

Self lock. nut DIN985-M6-A2

0985060003

$2.05

20

Protection cap for starter eng

77240099000

$6.35

21

STARTERCABLE 700 MM '97

58411059100

$23.65

22

Starter reley 12V 99

58211058000

$72.64

23

Plug-in fuse, big 20A

58011109120

$1.49

24

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

25

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

26

battery 12V/24Wh

79111053000

$166.05

28

BATTERY BOX

79011055100

$37.86

29

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

30

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

31

FUSE MINI 5A

75011088005

Unavailable

31

FUSE 10A 07

75011088010

Unavailable

32

BATTERY BOX SUPPORT

79011056100

$3.08

33

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

34

METAMOLL 90X45X3MM 03

59003001099

$2.05

35

DC HORN 12V 07

50311060200

$32.44

36

HORN BRACKET EXC 08

78011061000

$5.23

37

WASHER DIN0125-A 5,3

0125050003

$1.49

38

HEXAGON NUT DIN0934-M 5

0934050003

$2.05

39

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23

40

SUPPORT BRACKET

77711083000

$22.52

41

screw kit

79111053010

$4.11
