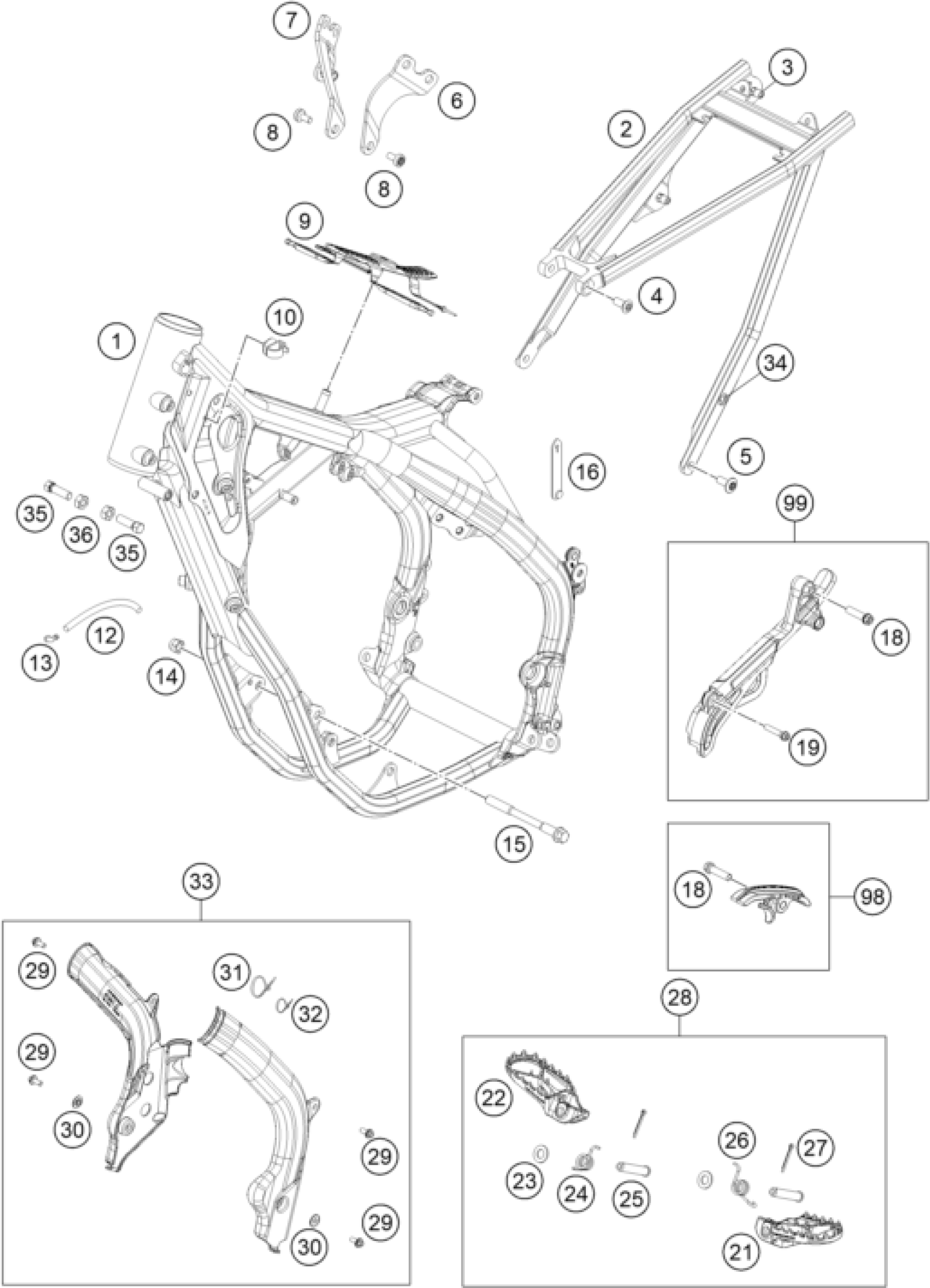

KTM 250 EXC-F 2019 FRAME Diagram

#

Description
Price

1

FRAME ''790Q1'' EL.ORANGE

79003101100EB

$1,779.02

2

Subframe 2018

79003002100

$267.78

3

BLIND RIVET NUT EM6-60LF/HX

77303139000

$4.11

4

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

5

Special screw M8X18 TORX45 SL

79003003000

$3.08

6

ENGINE BRACE LEFT

79203113000

$30.19

7

ENGINE BRACE RIGHT CPL.

79203114044

$30.38

8

AH-COLLAR SCREW M8X15 TORX45

0035080156S

$2.05

9

TANK REST RUBBER

79607012000

$10.09

10

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

12

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

13

ANGLE PIECE '97

50303089000

$5.23

14

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

15

engine brac.scr. M10x115

77203014000

$8.97

16

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

18

HH collar screw M8x30

0025080306

$3.08

19

HH collar screw M6x35 TX30

0025060356

$3.08

21

FOOTREST L/S EXC 2017

79603040000

$44.78

22

FOOTREST R/S EXC 2017

79603041000

$44.78

23

washer DIN 125 A 10.5

0125100003

$2.05

24

FOOTREST SPRING R/S 2016

79003044000

$2.05

25

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

26

FOOTREST SPRING L/S 2016

79003045000

$2.05

27

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

28

FOOTREST-SET

79603040033

$113.03

29

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

30

Bush f. frame protection 03

54803092060

$4.11

31

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

32

CABLE TIE 140/2,5MM BLACK

44011076140

$1.49

33

FRAME PROTECTION SET ORANGE

79003094000EB

$36.55

34

BLIND RIVET NUT M6 KNURLED

79003002080

$3.08

35

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

36

Hexagon nut DIN934 M8

0934080003

$2.05

98

CHAIN SLIDING KIT BELOW CPL.16

79003053010

$17.85

99

SPROCKET COVER KIT

79003096010

$24.77
