Description

Price

1

Radiator left

50435007200

$200.74

2

Radiator right

50435008200

$244.59

3

RADIATOR CAP 1,8 BAR

79035016000

$28.51

4

Y-PIECE CPL.

79035071044

$53.57

5

HOSE CLAMP GEMI 18-29

10001020000

$2.05

6

HOSE CLAMP NORMA 14/24

42013037400

$2.05

7

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

8

ANGLE PIECE '97

50303089000

$5.23

9

PVC-HOSE 6X9

50335030001

Unavailable

10

Preformed hose w. therm

79235026133

$143.23

11

PREFORMED HOSE WATER PUMP

79235027000

$16.63

13

COOLING WATER PIPE

50435073000

$19.44

14

RADIATOR PROTECTOR

7903513400030

$18.13

15

COLLAR SCREW M6X12 TX

0024060123

$1.49

16

THERMOSTAT 70 DEGREE 04

59435017000

$42.25

17

O-RING 32,00X2,00

0770320020

$2.05

18

FAN BRACKET

79635943000

$12.43

19

FAN CPL. 12V LC4 2000

58435041000

$137.53

20

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

21

EJOT SHEETTRACS SCREW 50X10

0080150100

$1.49

22

EJOT PT screw K50x12

0081050121

$2.05

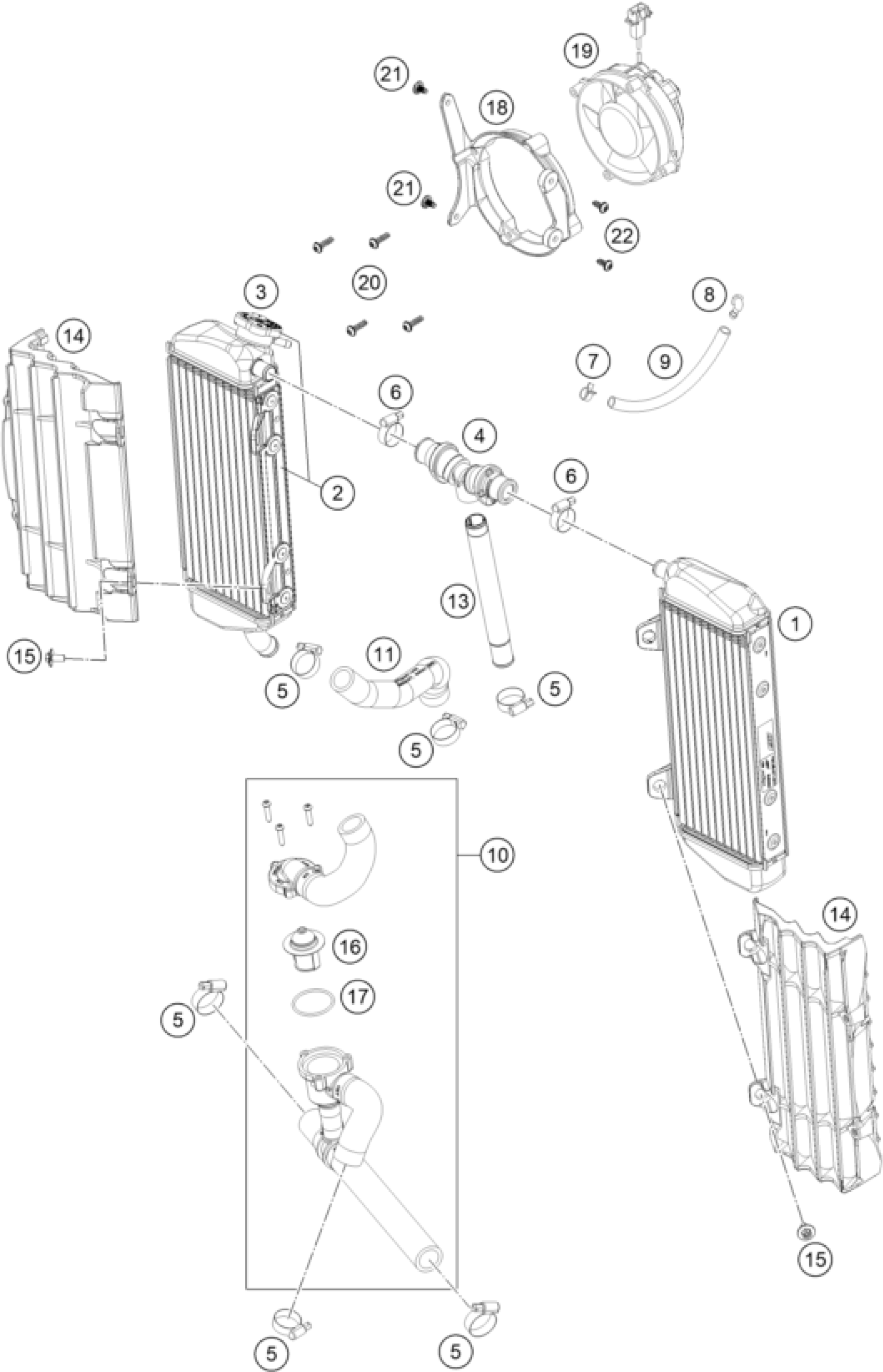

KTM 250 EXC-F 2019 COOLING SYSTEM Diagram

Radiator left

Radiator right

RADIATOR CAP 1,8 BAR

Y-PIECE CPL.

HOSE CLAMP GEMI 18-29

HOSE CLAMP NORMA 14/24

CLAMP YDNAC 10096F (9,6MM)

ANGLE PIECE '97

PVC-HOSE 6X9

Preformed hose w. therm

PREFORMED HOSE WATER PUMP

COOLING WATER PIPE

RADIATOR PROTECTOR

COLLAR SCREW M6X12 TX

THERMOSTAT 70 DEGREE 04

O-RING 32,00X2,00

FAN BRACKET

FAN CPL. 12V LC4 2000

SCREW FOR PLASTIC K50X18 T20

EJOT SHEETTRACS SCREW 50X10

EJOT PT screw K50x12
