Description

Price

1

AIR BOX BOTTOM PART BLACK

7900600100033

$27.19

2

AIRBOX COVER RIGHT

79006004000EB

$22.94

3

AIRBOX COVER LEFT

79006003000EB

$22.94

4

AIRBOX SIDE COVER

79006007000EB

$22.94

5

AIRBOX FRONT PART

7900600101033

$15.97

6

HH collar screw M6x20 TX30

0025060206

$3.08

7

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

8

SPECIAL SCREW M6X15X3

83008000015

$3.08

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

10

chain slider bushing

77304066050

$1.49

11

THERMAL PROTECTION FOIL

79008013050

$6.44

12

HOSE CLAMP 45-65MM

78006027000

$5.23

13

INTAKE BELLOWS

79206026000

Unavailable

14

FILTER MOUNTING BRACKET

79006017000

$2.05

15

AIR FILTER SUPPORT

79006016000

$24.77

16

AIR FILTER

79006015000

$32.12

17

HH collar screw M6x12 TX30

0025060126

$3.08

18

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

19

quick release rubber grommet

47106003160

$4.11

20

INTAKE THROTTLE D=16

79406012050

$2.33

99

SPLASH PROTECTOR KIT

79006010010

$24.49

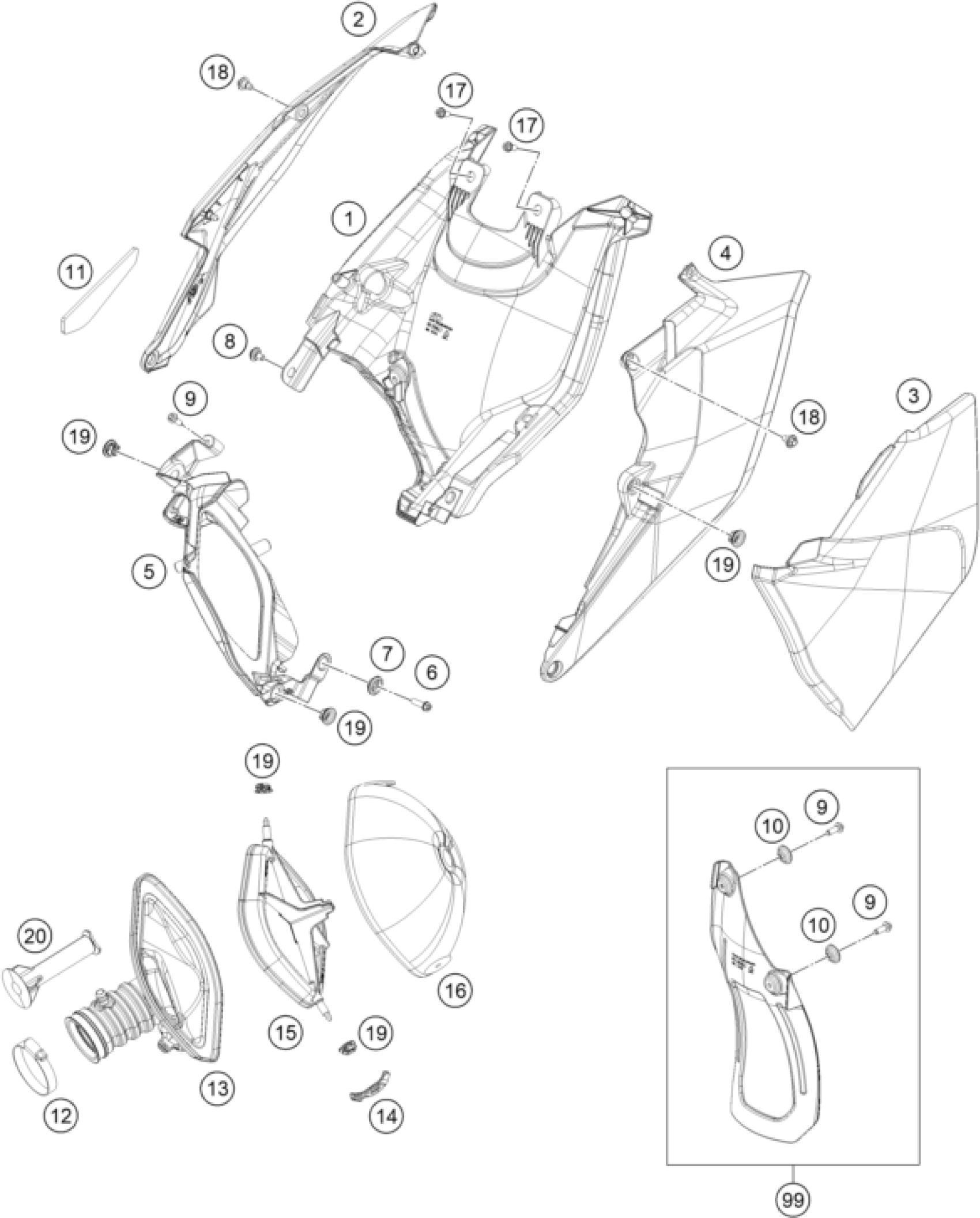

KTM 250 EXC-F 2019 AIR FILTER Diagram

AIR BOX BOTTOM PART BLACK

AIRBOX COVER RIGHT

AIRBOX COVER LEFT

AIRBOX SIDE COVER

AIRBOX FRONT PART

HH collar screw M6x20 TX30

COLLAR BUSH. F.REAR FENDER 07

SPECIAL SCREW M6X15X3

SCREW F. PLASTIC K60X20AL SW6

chain slider bushing

THERMAL PROTECTION FOIL

HOSE CLAMP 45-65MM

INTAKE BELLOWS

FILTER MOUNTING BRACKET

AIR FILTER SUPPORT

AIR FILTER

HH collar screw M6x12 TX30

SPECIAL SCREW M6X12,5 WS=8

quick release rubber grommet

INTAKE THROTTLE D=16

SPLASH PROTECTOR KIT
