Description

Price

2

O-RING 6,00X2,00 NBR 70

0770060020

$2.05

4

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

10

PLUG D=10

61315026000

$21.87

11

PREFORMED HOSE 6X10 ECO

79615025000

$8.78

12

PREFORMED HOSE 6X10 ECO

79615023000

$13.08

13

PREFORMED HOSE 6X10 ECO

79615024000

$9.06

8

HOSE EPA D=10/16 L=2000MM

78015119000

$244.12

1

EVAPORATIVE CANISTER

79615001000

$48.52

3

HOSE CONNECTION

79615019000

$11.49

5

PREFORMED HOSE 6X10 ECO

79615021000

$5.23

6

Y-CONNECTOR YS 6-10-6

61315028100

$8.41

7

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

9

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

14

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

16

VALVE FOR CARBON CANISTER 07

61115015000

$63.95

17

FITTING PIECE NQV2 NW7 90°

61115016000

$12.71

18

BRACKET AKF-VALVE

79215002000

$12.43

15

VACUUM CONECTION M6/0,5MM

60036023100

$28.23

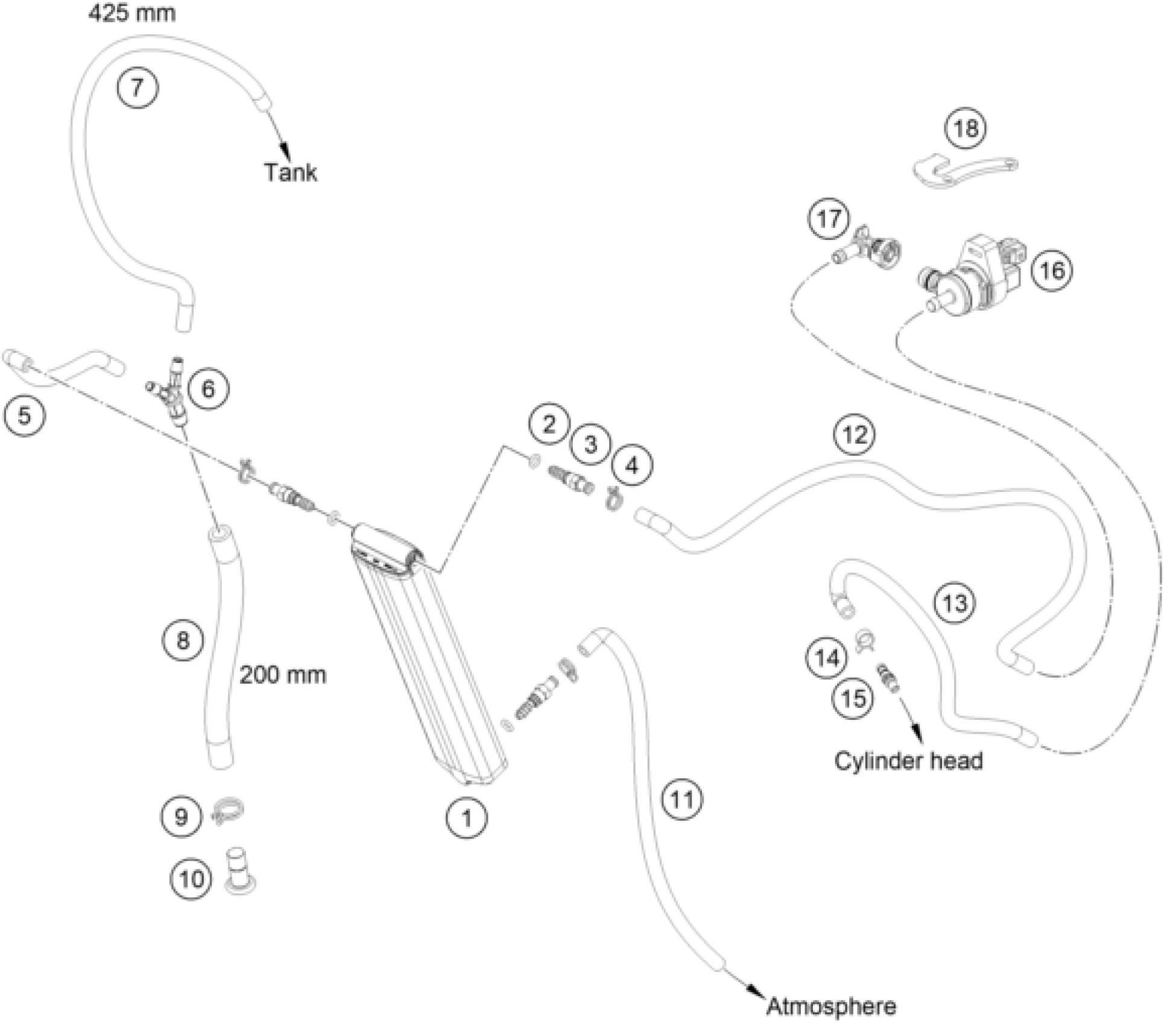

KTM 250 EXC-F 2017 EVAPORATIVE CANISTER Diagram

O-RING 6,00X2,00 NBR 70

YDNAC-clamp 10101 (10.4MM)

PLUG D=10

PREFORMED HOSE 6X10 ECO

PREFORMED HOSE 6X10 ECO

PREFORMED HOSE 6X10 ECO

HOSE EPA D=10/16 L=2000MM

EVAPORATIVE CANISTER

HOSE CONNECTION

PREFORMED HOSE 6X10 ECO

Y-CONNECTOR YS 6-10-6

HOSE EPA D=6/10 L=2000MM

YDNAC-clamp 10173 (16MM)

CLAMP YDNAC 10096F (9,6MM)

VALVE FOR CARBON CANISTER 07

FITTING PIECE NQV2 NW7 90°

BRACKET AKF-VALVE

VACUUM CONECTION M6/0,5MM
