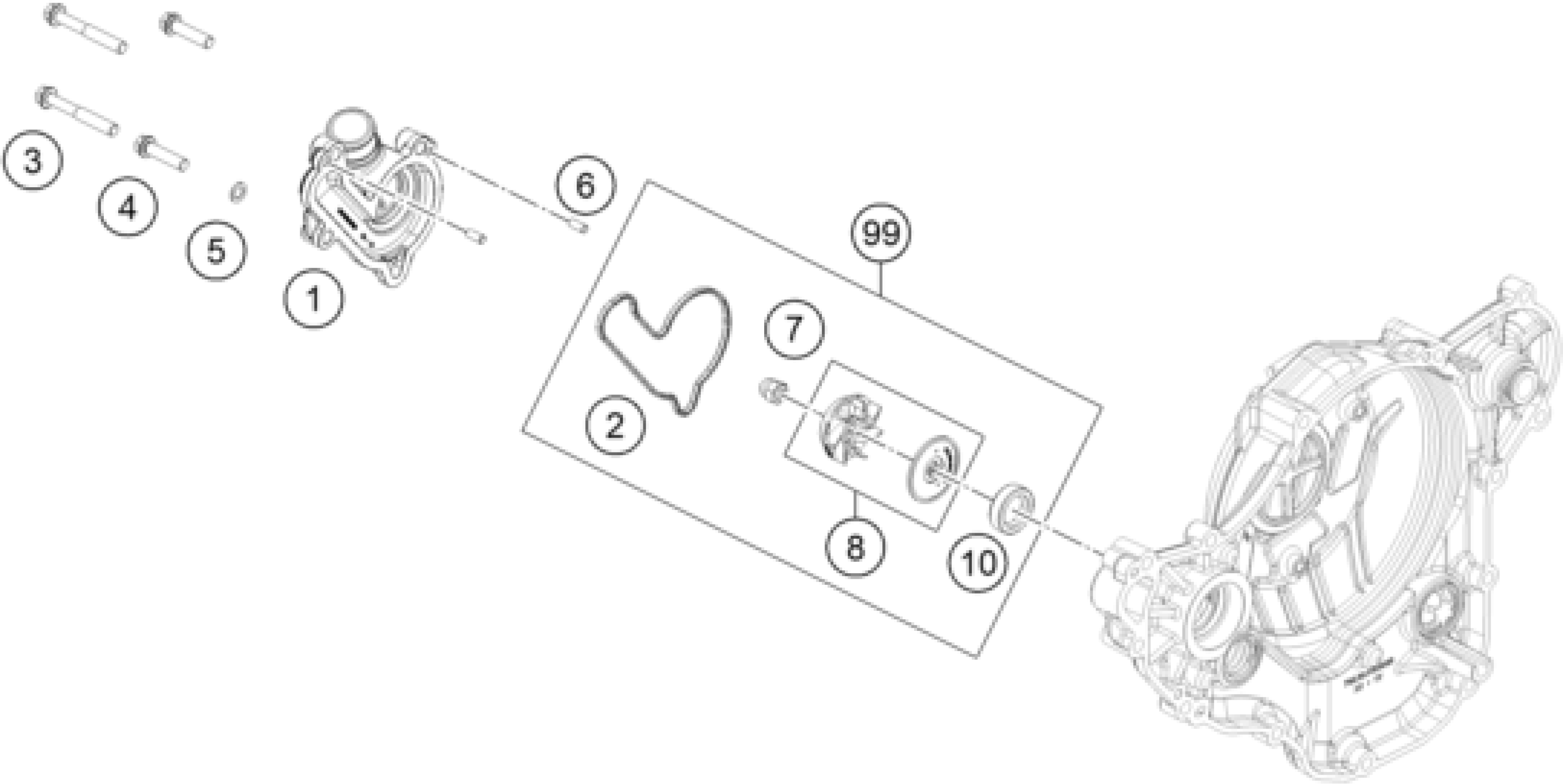

KTM 250 EXC-F 2017 WATER PUMP Diagram

#

Description

Price

1

WATER PUMP COVER

79235052000

$29.07

2

GASKET F. WATER PUMP COVER

79235053000

$8.78

3

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

4

HH collar screw M6x25 TX30

0025060256

$3.08

5

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

6

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

7

CAP NUT M6 STAINLESS STEEL

61230045000

$2.05

8

WATER PUMP WHEEL CPL.

79235055044

$15.42

10

SHAFT SEAL RING 15X30X4.5 BAUD

07601530451

$6.82

99

WATER PUMP REP. KIT

79235055015

$25.80
