Description

Price

1

CRANKSHAFT CPL.

79030118100

$1,021.39

2

CONROD REPAIR KIT

79030115144

$509.94

3

THRUST WASHER 988ST 32X0,1

0988324510

Unavailable

3

THRUST WASHER 988ST 32X0,15

0988324515

Unavailable

3

THRUST WASHER 988ST 32X0,30

0988324530

Unavailable

4

BEARING NJ 206 ECP/HN3C4HVA624

77330082200

$93.87

5

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

6

NUT PRIMARY WHEEL

77230029000

$4.29

8

SHAFT SEAL RING A 40X55X6 V.

0760405561

$15.61

9

SPACER BUSHING PRIMARY GEAR

77232022000

$11.02

10

gear primary drive

79232023124

$101.44

11

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

12

RETAINING PLATE F. CS BEARING

75030085000

$1.49

13

CIRCLIP PISTON PIN

79030274000

$15.80

14

PISTON RING SET

79030231044

$108.79

40

PISTON I CPL. 250

79030507000 I

Unavailable

40

PISTON II CP 250

79030507000 II

Unavailable

98

CRANKSHAFT REP. KIT

00050002316

Unavailable

99

PISTON KIT I 250 4STR 2017

00050000239

Unavailable

99

PISTON KIT II 250 4STR 2017

00050000240

Unavailable

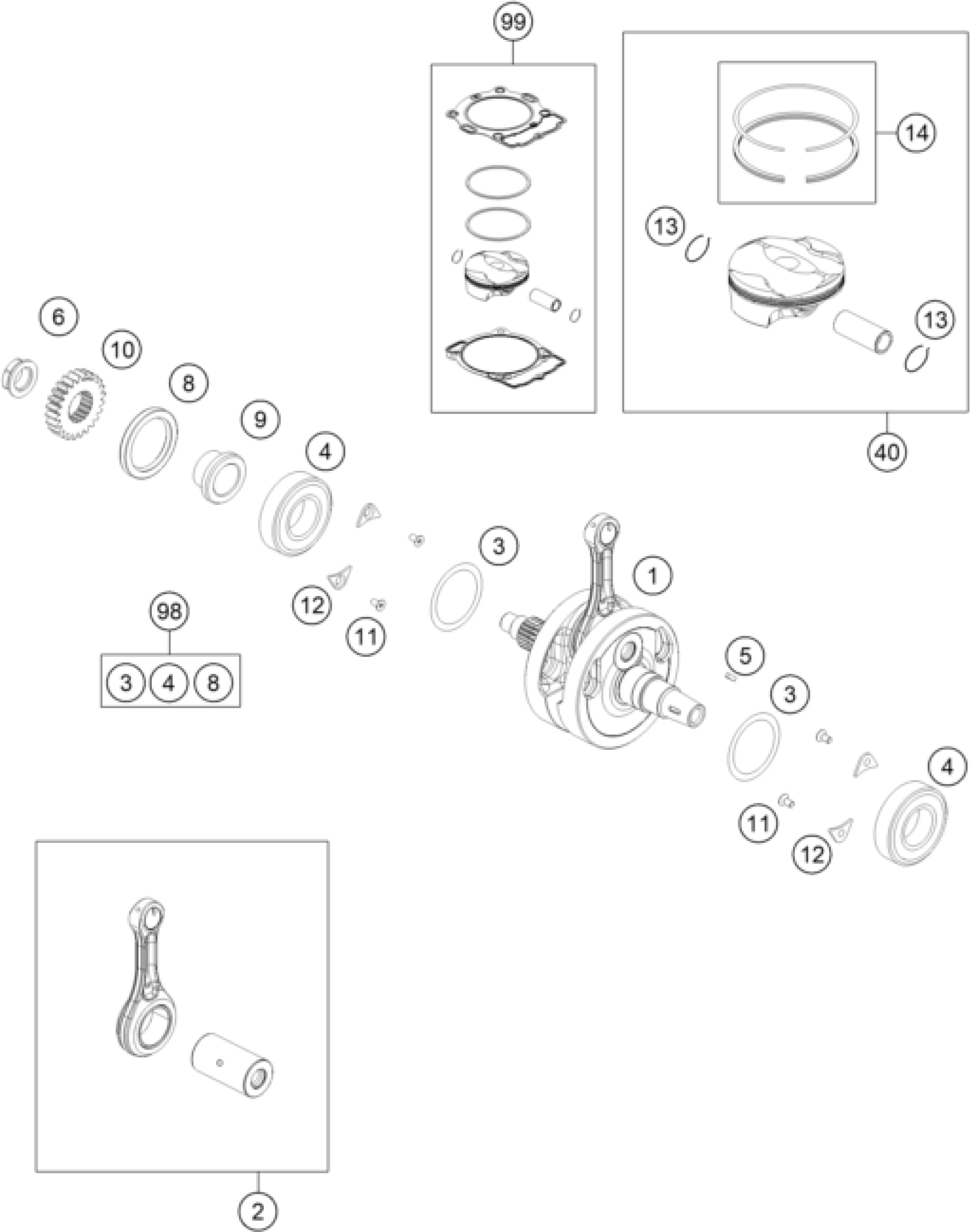

KTM 250 EXC-F 2017 CRANKSHAFT, PISTON Diagram

CRANKSHAFT CPL.

CONROD REPAIR KIT

THRUST WASHER 988ST 32X0,1

THRUST WASHER 988ST 32X0,15

THRUST WASHER 988ST 32X0,30

BEARING NJ 206 ECP/HN3C4HVA624

WOODRUFF KEY DIN6888-3X3,7

NUT PRIMARY WHEEL

SHAFT SEAL RING A 40X55X6 V.

SPACER BUSHING PRIMARY GEAR

gear primary drive

INT. TORX FLAT HEAD M5X12 T25

RETAINING PLATE F. CS BEARING

CIRCLIP PISTON PIN

PISTON RING SET

PISTON I CPL. 250

PISTON II CP 250

CRANKSHAFT REP. KIT

PISTON KIT I 250 4STR 2017

PISTON KIT II 250 4STR 2017
