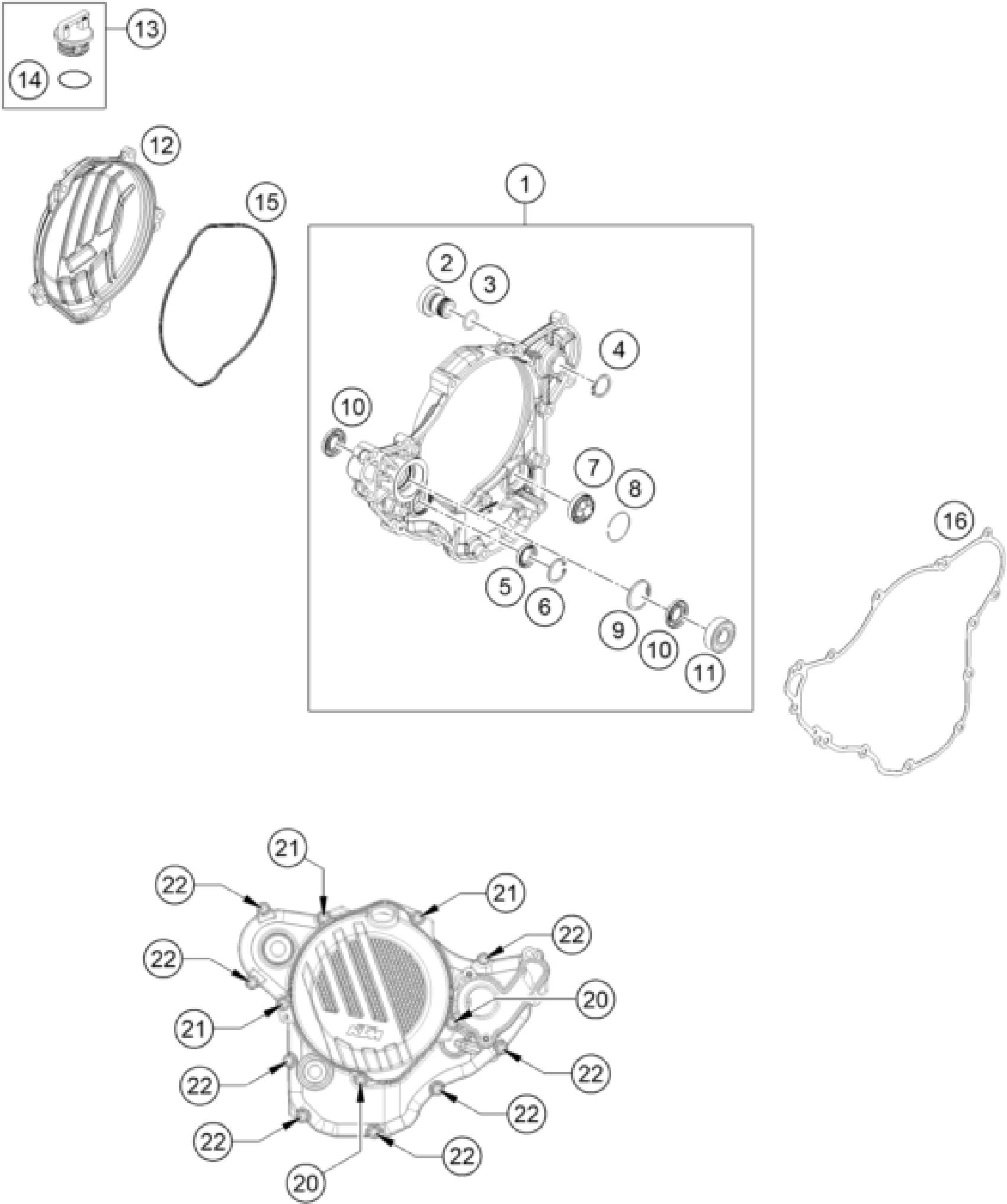

KTM 250 EXC-F 2017 CLUTCH COVER Diagram

#

Description
Price

10

SHAFT SEAL RING 15X30X4.5 BAUD

07601530451

$6.82

11

BALL BEARING 6202 C0 2

0625062022

$14.48

14

O-RING 19,00X3,00 NBR

0770191015

$2.05

12

CLUTCH OUTSIDE COVER

7923002600015

$82.74

13

Oil filler cap cmpl. M24x3

79430020033

$8.03

1

CLUTCH COVER CPL.

79230101044

$214.20

6

CIRCLIP DIN0472-24X1.2

0472024120

$1.49

16

CLUTCH COVER GASKET

79230125000

$21.78

2

KICK STARTER PLUG

83033056100

$16.82

3

O-ring 16x2 Viton 75

0770160021

$3.08

4

CIRCLIP DIN0471-19X1,2

0471190120

$1.49

5

SHAFT SEAL RING 14X24X5 VITON

0760142450

$16.07

7

OIL SIGHT GLASS

59030019200

$21.31

15

CLUTCH COVER GASKET OUTSIDE

79230027000

$13.27

20

HH collar screw M6x20 TX30

0025060206

$3.08

21

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

22

HH collar screw M6x25 TX30

0025060256

$3.08

8

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

9

CIRCLIP 30X1,2

0472300120

$1.49
