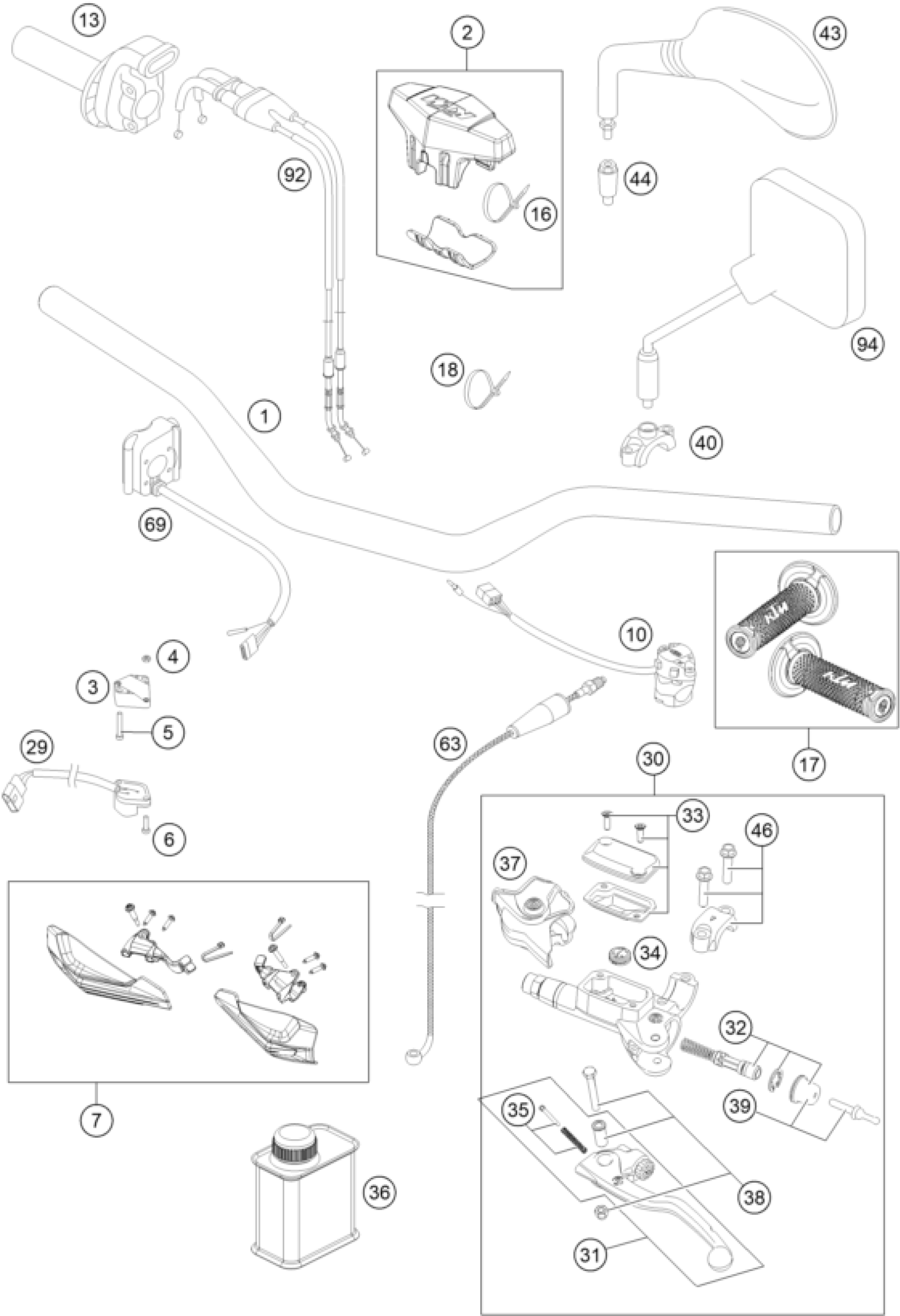

KTM 250 EXC-F 2015 HANDLEBAR, CONTROLS Diagram

HANDLEBAR

7800200100030

$151.84

Bar pad cmpl.

77202002144

$22.94

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

$1.49

HANDGUARDS CPL. L+R ORANGE

7770217900004

$45.31

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

THROTTLE GRIP CPL.

78102010000

$44.59

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

GRIP SET

78102021000

$22.71

Cable tie 200/4.6mm black

44011076200

Unavailable

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

FLASHER SWITCH CEV '98

50311029000

$51.98

MASTER CYLINDER CPL.

54802030144

$240.57

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

REP. KIT PISTON 06

54802032000

$49.92

COVER HYD. CLUTCH CPL. 2014

5480200310030

$35.52

VALVE

54802051000

$19.16

BOLT KPL.

54802052000

$29.35

Brake fluid DOT5.1 0,25L

00062030000

$12.52

PROTECTION CAP 06

54802037000

$20.94

Lever screw cmpl. 06

54802038100

$39.82

Push rod cmpl.

54802046000

$23.46

Clamp for mirror

58012040150

$22.81

MIRROR L/S 98

58412040000

Unavailable

MIRROR R/S 98

58412041000

Unavailable

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

CLUTCH PIPE 06

54832063000

$100.32

START-STOP SWITCH

77711074000

Unavailable

CLAMP CPL. 06

54802005100

$25.80

THROTTLE CABLE 4ST. 13

78102091000

$57.77

Rear view mirror left

58012040000

$36.18

Rear view mirror right

58012140000

$37.11
