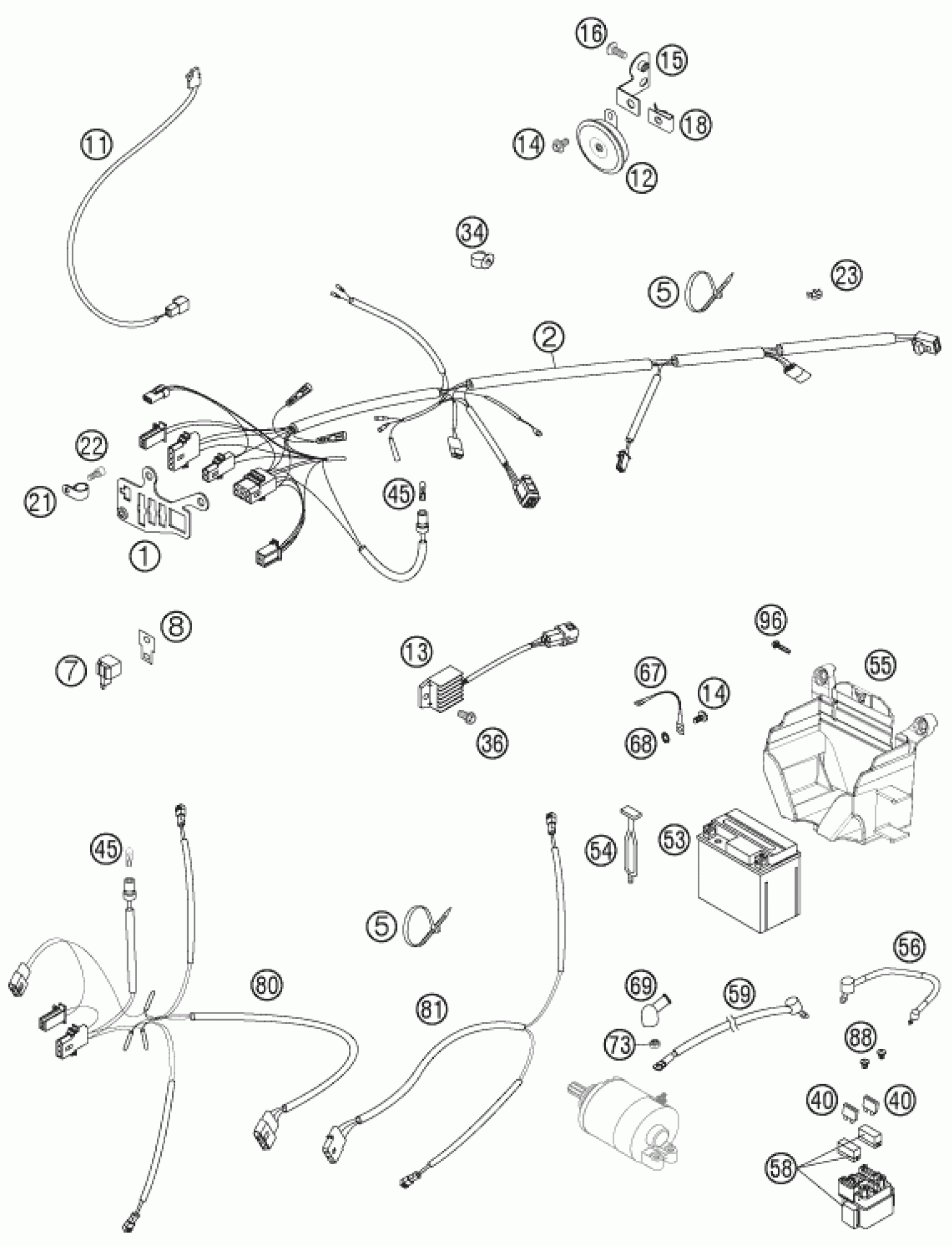

KTM 250 EXC-F 2008 WIRING HARNESS Diagram

#

Description
Price

1

SUPPORT BRACKET EXC 2005

54811083100

$16.82

2

WIRING HARNESS 250-525EXCEU06

59411075150

Unavailable

5

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Cable tie 200/4.6mm black

44011076200

Unavailable

7

FLASHER UNIT 97

44611207200

$49.83

8

BRACKET FOR FLASHER RELAY

58211031100

$5.70

11

BRAKE LIGHT SWITCH FRONT 2002

50311050100

$64.60

12

DC HORN 12V 07

50311060200

$32.44

13

VOLTAGE REGULATOR 04

80011034000

$99.57

14

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

15

HORN BRACKET EXC 08

78011061000

$5.23

16

HH collar screw M6x15 TX30

0024060156

$3.08

18

clip nut M6

54603048100

$4.11

21

PVC-CLAMP 7/16'' HEYCO 3377

57013070000

$1.49

22

SHCS DIN 912 M5x8

0912050083

$1.49

23

WIRING HOLDER 12MM

57013072000

Unavailable

23

WIRING HOLDER 16MM

57013072100

Unavailable

34

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

36

HH collar screw M6x12 TX30

0025060126

$3.08

40

Plug-in fuse, big 10A

58011109110

$2.05

80

FLASH. WIRINGHARNESS FRONT 06

59011080100

Unavailable

53

BATTERY 12V 3AH YTX4L-BS

77311053000

$166.05

54

RUBBER L=145MM

50303018000

$6.44

55

BATTERY CASE EXC 08

78011055000

$4.03

56

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

58

Starter reley 12V 99

58211058000

$72.64

59

STARTERCABLE 1100MM 07

55111059000

$26.08

67

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

68

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

69

PROTECTION CAP F. STARTER ENG.

58440099000

$5.23

73

Self lock. nut DIN985-M6-A2

0985060003

$2.05

88

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

96

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

45

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

81

FLASH. WIRINGHARNESS REAR 06

59011081100

$23.46
