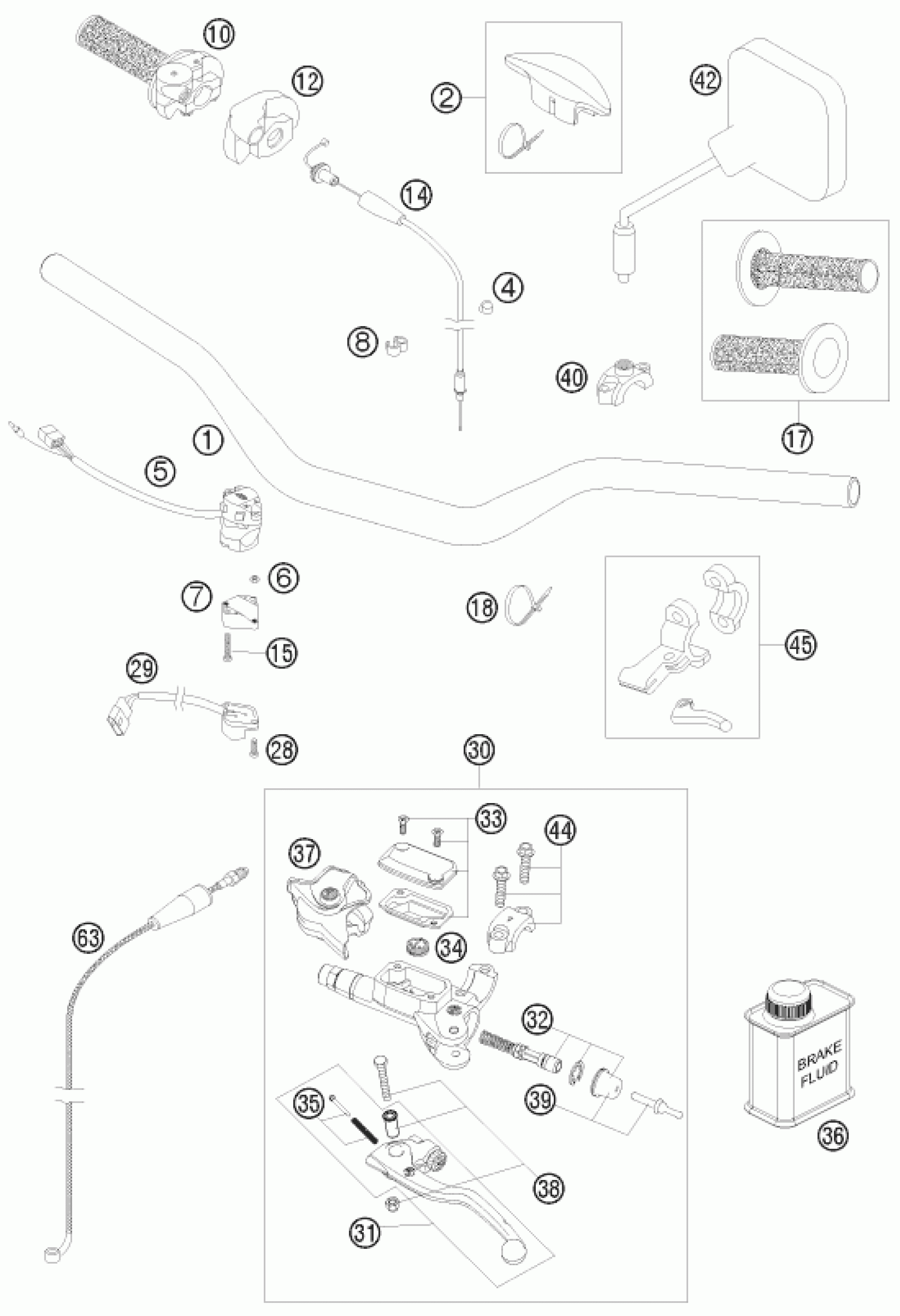

KTM 250 EXC 2010 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR NEKEN D=28MM EXC 07

5480200130017

Unavailable

2

BAR PAD CPL.

77202002000

Unavailable

4

WIRING HOLDER 12MM

57013072000

Unavailable

5

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

Unavailable

6

HEXAGON NUT DIN0934-M 4

0934040003

Unavailable

7

ADAPTER FOR FLASHER SWITCH '98

13011070060

Unavailable

8

CLIP 5/7 MM 06

60111094000

Unavailable

10

THROTTLE GRIP CPL. 09

54802010100

Unavailable

12

PROTECTION COVER '97

50302020000

Unavailable

14

THROTTLE C. 125-380 DOM/KEIH

50302091000

Unavailable

15

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

Unavailable

17

GRIP-SET GRAY/ORANGE 09

54802021200

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

28

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

Unavailable

29

FLASHER SWITCH CEV '98

50311029000

Unavailable

30

MASTER CYLINDER CPL. 06

54802030044

Unavailable

31

Clutch lever cmpl. BREMBO 06

54802031000

Unavailable

32

REP. KIT PISTON 06

54802032000

Unavailable

33

COVER HYD. CLUTCH CPL.

54802003000

Unavailable

34

VALVE

54802051000

Unavailable

35

BOLT KPL.

54802052000

Unavailable

36

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

37

PROTECTION CAP 06

54802037000

Unavailable

38

Lever screw cmpl. 06

54802038100

Unavailable

39

Push rod cmpl.

54802046000

Unavailable

40

Clamp for mirror

58012040150

Unavailable

42

Rear view mirror left

58012040000

Unavailable

42

Rear view mirror right

58012140000

Unavailable

44

CLAMP CPL. 06

54802005100

Unavailable

45

LEVER F. COLD START ACT. 08

78002050000

Unavailable

63

CLUTCH PIPE 06

54832063000

Unavailable
