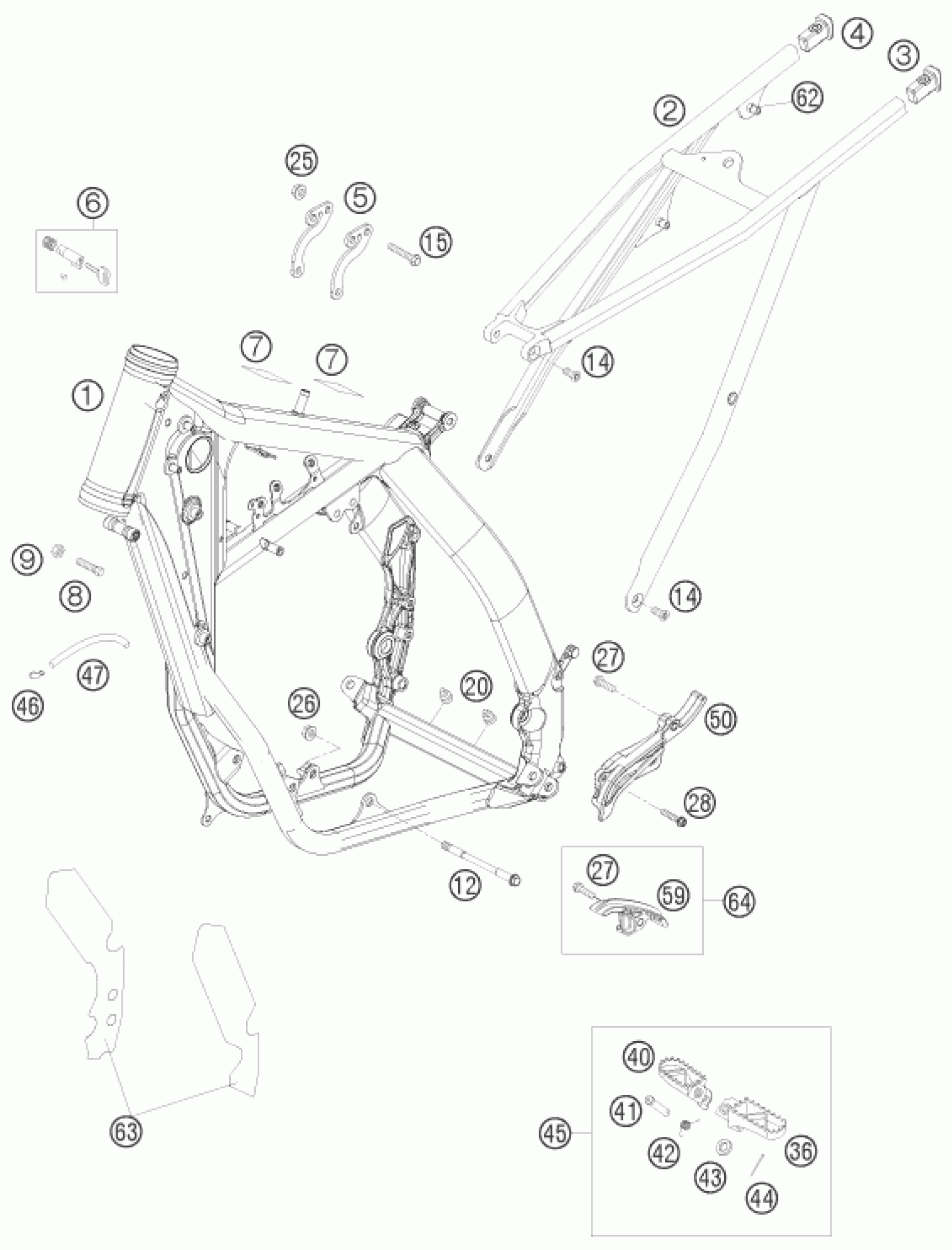

KTM 250 EXC 2008 FRAME Diagram

#

Description
Price

1

FRAME 250/300 ''CC08''

5480340120030

Unavailable

2

SUB FRAME SX ''Q7'' 07

77303002000

$379.79

3

SUB FRAME APPLICAT. LEFT 08

78003002010

Unavailable

6

STEERING HEAD LOCK 08

78003035000

$20.94

20

PLASTIC CAP SFL10

54403135000

$2.05

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

43

washer DIN 125 A 10.5

0125100003

$2.05

4

SUB FRAME APPLICATION R/S 08

78003002020

Unavailable

5

REINFORCING B. 250 SX 07

54803413000

$14.39

7

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$2.05

8

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

9

Hexagon nut DIN934 M8

0934080003

$2.05

12

engine brac.scr. M10x105 WS13

54603013000

$12.15

14

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

15

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

25

Self locking nut M8 10.9

54310086200

$3.08

26

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

27

HH collar screw M8x30

0025080306

$3.08

28

HH collar screw M6x30 TX30

0025060306

$3.08

36

FOOT PEG L/S SILVER 02

59003040250

$43.66

40

FOOT PEG R/S SILVER 02

59003041250

$43.66

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

44

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

45

FOOTPEG L.+R. CPL. 03

5030314013390

$167.45

46

ANGLE PIECE '97

50303089000

$5.23

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

50

SPROCKET COVER 250 SX 07

54803096000

$11.68

59

Chain sliding piece, bottom

77303053000

$9.44

62

BLIND RIVET NUT EM6-60LF/HX

77303139000

$4.11

63

FRAME PROTECTION STICK. SET 07

77303094000

$33.65

64

CHAIN SLIDING KIT BELOW CPL07

77303053010

$11.49
