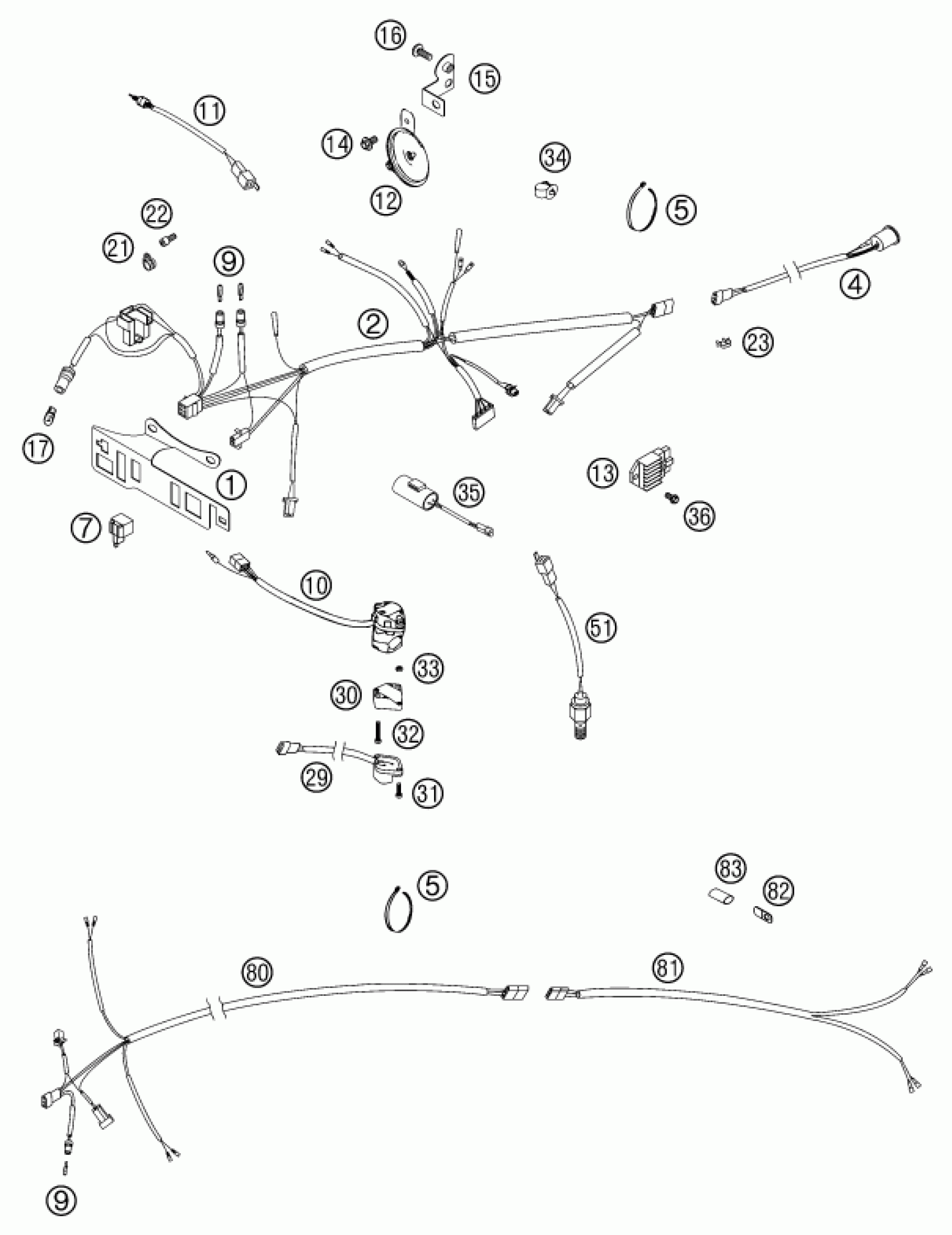

KTM 250 EXC 2002 WIRING HARNESS Diagram

#

Description
Price

1

SUPPORT BRACKET BLACK 2001

59011083000

$20.70

2

WIRING HARNESS EXC EU/AUS 2001

50311075700

Unavailable

4

WIRING HARNESS REAR 125-380'98

50311076000

$27.39

5

Cable tie 200/4.6mm black

44011076200

Unavailable

0

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

7

FLASHER UNIT 97

44611207200

$49.83

9

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

10

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

10

H.LIGHT SWITCH CEV EGS AUS.'98

50311070100

$74.14

11

BRAKE LIGHT SWITCH FRONT 2000

50311050000

Unavailable

12

DC HORN 12V K80/L LEB

50311060000

$32.16

13

VOLTAGE REGULA. 12V 125-200'98

50311034000

$102.28

14

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

15

BRACKET 2001

59011061000

$8.59

16

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

17

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

21

PVC-CLAMP 7,9 MM HEYCO 3355

57013070100

$2.05

22

SHCS DIN 912 M5x8

0912050083

$1.49

23

WIRING HOLDER 12MM

57013072000

Unavailable

23

WIRING HOLDER 16MM

57013072100

Unavailable

29

FLASHER SWITCH CEV '98

50311029000

$51.98

30

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

31

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05

32

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

33

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

34

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

35

CONDENSATOR 2200MF ADP-48 2000

50311035000

$76.01

36

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

51

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

80

FLASH.WIRINGHARNESS FRONT 2001

59011080000

$35.24

81

FLASH.WIRINGHARNESS REAR 2001

59011081000

$20.19

82

RETAINING PLATE

50031003000

$2.61

83

SHRINK HOSE 6,4/3,2 L=30 MM

50311025030

Unavailable
