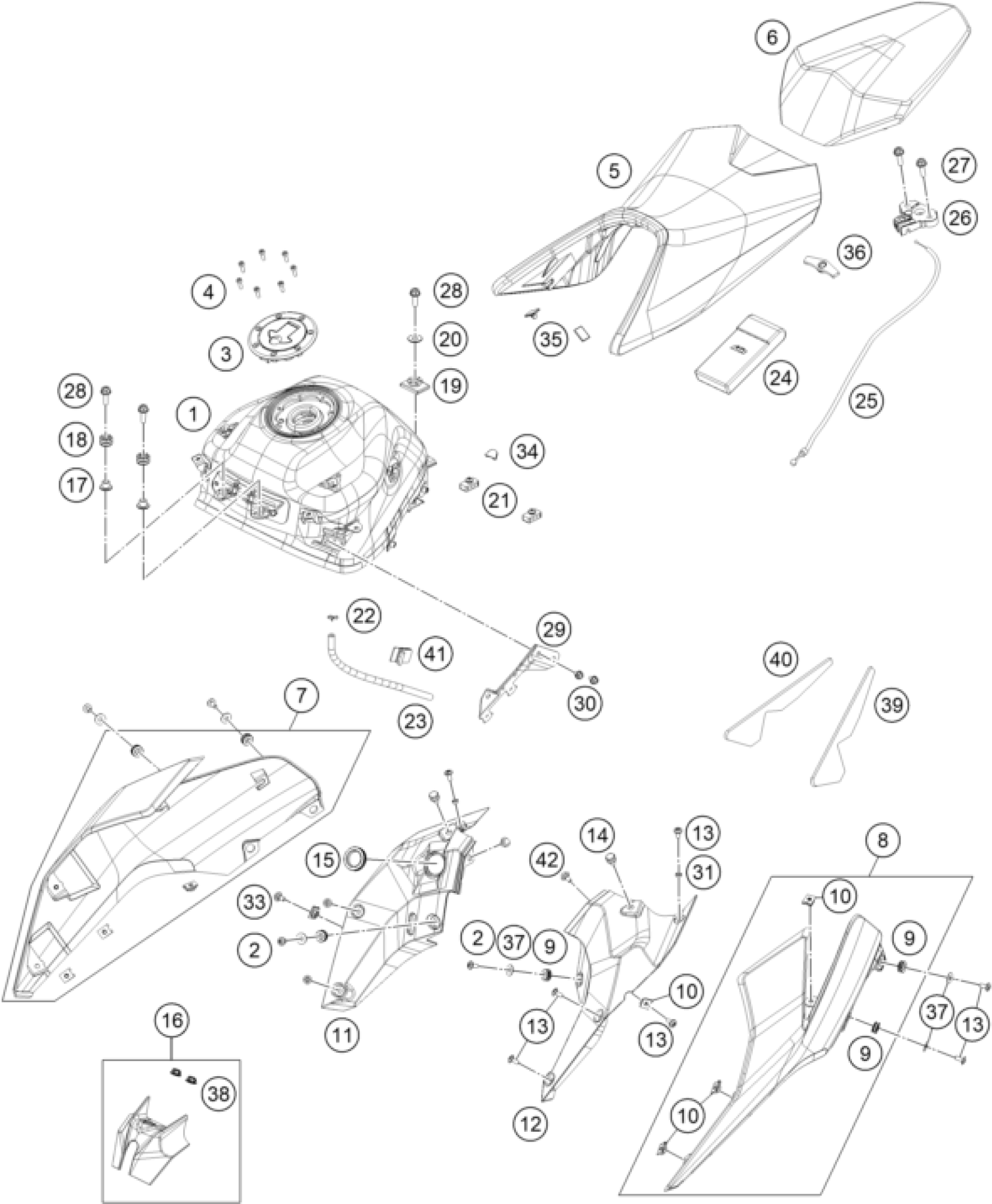

KTM 250 Duke, white - B.D. 17 <2017 TANK, SEAT Diagram

#

Description

Price

5

Rider seat

93007040000

$75.73

6

Seat passenger complete

93007047000

$61.70

7

Frontspoiler right white

9300805100028

$41.79

8

Frontspoiler left white

9300805000028

$40.57

9

Rubber bushing

93008050040

$1.49

10

clip nut

90103097000

$4.11

13

SOCKET HEAD BOLT M6X12

90508006001

$1.49

14

Special screw

93008048000

$2.05

15

Rubber bushing

93035065010

$1.49

16

Cover for ignition lock comple

93008057033

$5.60

17

Bushing

93008034000

$1.49

18

GROMMET TANK MOUNTING

90507013006

$1.49

19

Tank guard rear

93007014000

$2.05

20

WASHER PLAIN 8,4X25X2

90111060010

$1.49

21

Seat cowl pad

93007040010

$3.08

22

CLAMP

90107013008

$1.49

23

Tube drain cup cap

90107013007

$3.08

24

TOOLKIT

90529099000

$32.90

25

Cable seat lock

93007052000

$5.60

26

Sseat lock ZSB

93007050000

$3.08

27

HH COLLAR SCREW M6X20 SW10

J025060203

$1.49

28

Hexagon screw M8X25

J025080253

$1.49

29

Fastening

93015102000

$5.23

30

HH COLLAR SCREW M6X10 SW10

J025060103

$1.49

31

Sleeve spoiler inner RR MTG

93008044000

$1.49

33

SPECIAL SCREW M6X12X3

90108076000

$2.05

34

Rubber cap tank

93008059000

$1.49

35

SEAT DUMPER SOZIUS SEAT

90507047041

$3.08

36

Seat cowl pad

93007046000

$1.49

37

Washer 6.2X20X1.5

93008050050

$1.49

1

Fuel tank

93007113000

$431.12

3

Fuel tank cap

93807008000

$86.10

4

AH SCREW M5X14 BLACK

J912050151

$1.49

38

Rubber grommet ignition lock c

93011068010

$1.49

11

Inner cover right

93008055000

$6.63

12

Inner cover left

93008056000

$6.63

39

Tape cover LH

93007025020

$1.49

40

Tape cover RH

93007025010

$1.49

41

BRACKET DRAIN TUBE CPL.

90107029000

$2.05

42

Screw M6X1X9

93008020060

$2.05

2

AH SCREW M6X1X20

90508006003

$4.11
