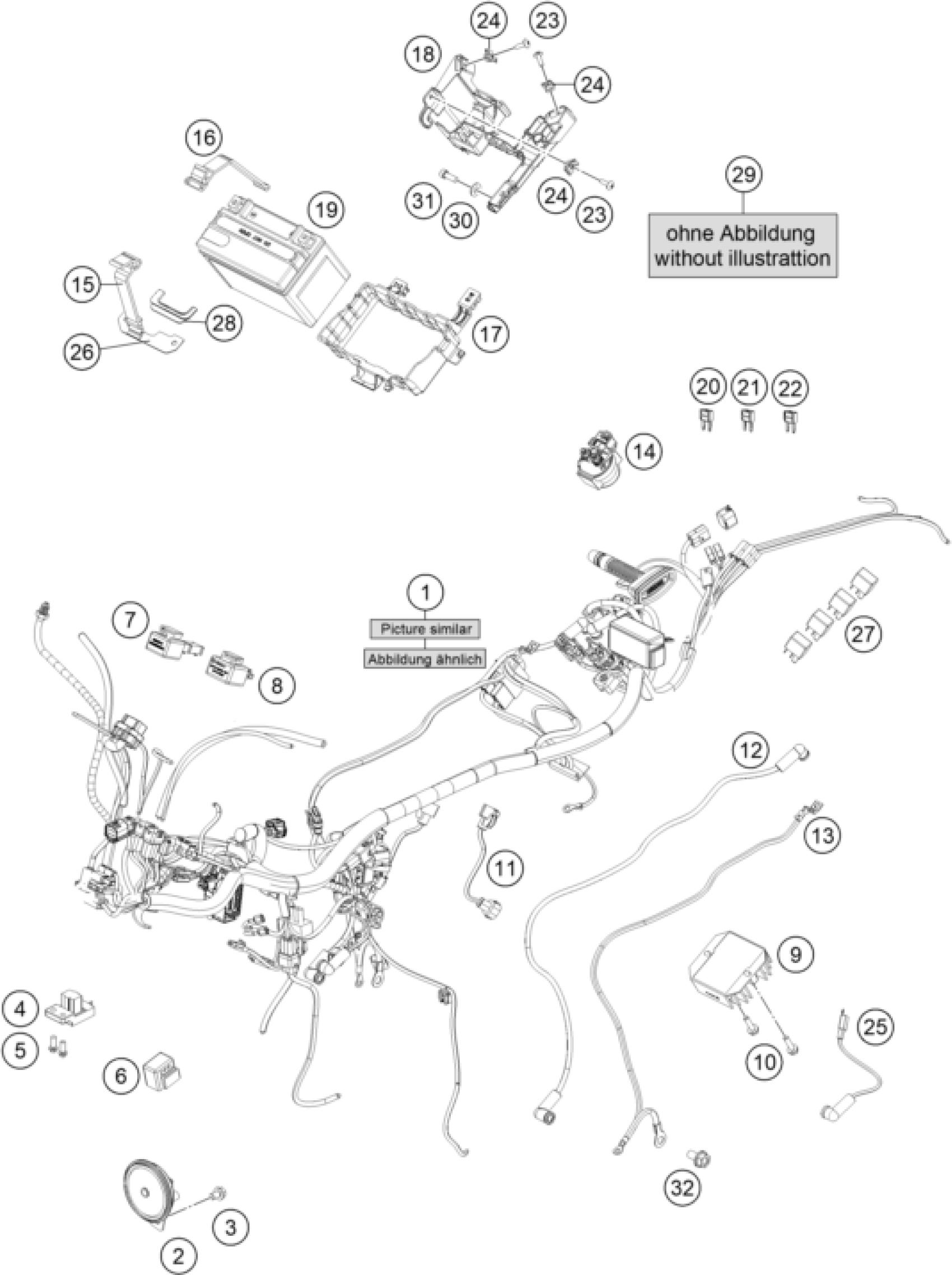

KTM 250 Duke, orange w/o ABS CKD 17 <2017> WIRING HARNESS Diagram

#

Description

Price

1

Harness Wiring non ABS Duke-20

93111075000

Unavailable

2

Horn

93011060100

$20.00

3

HH COLLAR SCREW M8X12 SW12

J025080123

$1.49

4

rollover sensor

93541088000

$24.02

5

HH COLLAR SCREW M6X16 SW8

J025060169

$1.49

6

resistor

93811043000

$30.75

7

Start OK control unit

93539010000

$39.92

8

indicator relay

90511030000

$29.44

9

Voltage regulator

93011034000

$146.13

10

bolt flanged M6X25

J025060253

$1.49

11

Cable

93041080050

$39.82

12

Starter cable 6MM

93011059000

$15.42

13

Ground wire

93011197000

$16.73

14

STARTER RELAY

90111058000

$25.80

15

Band batterie

93011055060

$2.05

16

Battery rubber holder

93011055000

$4.11

17

METAMOLL BATTERY

93011054050

$11.96

18

Cross brace cover

93008018060

$12.52

19

BATTERY 12V/8AH

90611053000

$137.81

20

FUSE 10A 07

75011088010

$4.11

21

FUSE 15A 07

75011088015

$4.11

22

FUSE 30A

75011088030

$3.08

23

FLAT HEAD SCREW M5X12 PH

J005050123

$1.49

24

CLIP NUT M5

90108050001

$2.05

25

Pigteil oil pressure switch

93038091000

$2.05

26

Bracket battery band

93011056100

$2.05

27

relay (interlock)

90611057000

$24.49

28

protector

93011026000

$1.49

29

PIGTAIL PH-3 FUEL PUMP

93511084000

$11.96

30

WASHER 5,2X14X2MM

90107088050

$1.49

31

bolt socket-M5X0.8XL16XCL8.8XB

J912050166

$7.38

32

Hex collar screw M6X12

J025060122

$1.49
