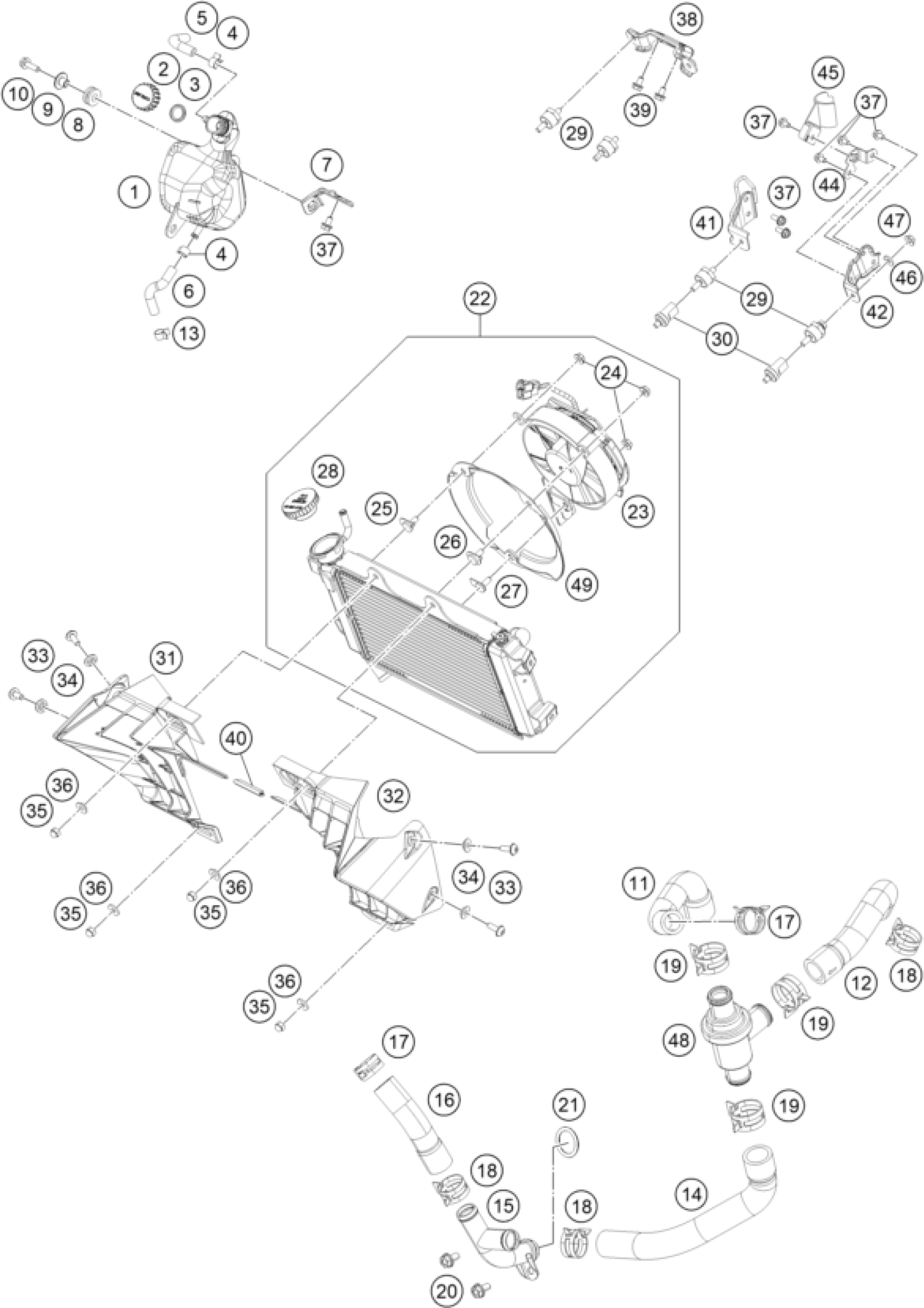

KTM 250 Duke, orange w/o ABS-B.D. 2020 COOLING SYSTEM Diagram

#

Description

Price

1

water compensation tank

93035065000

Unavailable

2

PLUG F. EXPANSION TANK

90135066000

Unavailable

3

COMPENSATING TANK O-RING

90102055000

Unavailable

4

CLAMP 10MM

90107018011

Unavailable

5

HOSE 6X10,5X80 MM

90135067000

Unavailable

6

pipe tank expansion-radiator

J600000607200

Unavailable

7

Retaining bracket

93035065050

Unavailable

8

Rubber bushing

93008028050

Unavailable

9

distance sleeve

93035065030

Unavailable

10

HH COLLAR SCREW M6X20 SW10

J025060203

Unavailable

11

Pre-formed hose

93035024000

Unavailable

12

Pre-formed hose

93035025000

Unavailable

14

Pre-formed hose

93035026000

Unavailable

15

COOLANT PIPE T

90635071033

Unavailable

16

pre-formed hose radiator-t-pie

90235024030

Unavailable

17

HOSE CLAMP D23

90135020000

Unavailable

18

hose clamp D26

90135020001

Unavailable

19

HOSE CLAMP D28

90135020003

Unavailable

20

Hex collar screw M6X14

J025060141

Unavailable

21

O-RING 18,5X3

J770018530

Unavailable

22

Radiator assembly

93235010133

Unavailable

23

Fan cpl.

93235041033

Unavailable

24

FLANGED NUT

90835041004

Unavailable

25

BRACKET FAN MOUNTING 3

90835041003

Unavailable

26

BRACKET FAN MOUNTING 2

90835041002

Unavailable

27

BRACKET FAN MOUNTING 1

90835041001

Unavailable

28

RADIATOR CAP

90135016100

Unavailable

29

SILENTBLOCK M6

93335001000

Unavailable

30

Spacer for radiator cover

93035033020

Unavailable

31

Radiator fairing right

93035035000

Unavailable

32

Radiator fairing left

93035034000

Unavailable

33

SPECIAL SCREW M6X1X16

90808043000

Unavailable

34

Washer

93035033010

Unavailable

35

Cap nut M6

93035003000

Unavailable

36

Washer 6.5x16x2

93035044000

Unavailable

37

HH COLLAR SCREW M6X10 SW10

J025060103

Unavailable

38

Support

93035004000

Unavailable

39

Hexagon screw M6X10

J025060101

Unavailable

40

Flange

93035009050

Unavailable

41

RADIATOR SUPPORT R/S BELOW

90203006001

Unavailable

42

RADIATORSUPPORT L/S BELOW

90203005001

Unavailable

44

Retaining bracket

93035017060

Unavailable

45

THERMOSTAT HALTER

93035017050

Unavailable

46

Spring ring B6

J127060001

Unavailable

47

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

Unavailable

48

THERMOSTAT

90135017000

Unavailable

13

Spring clip 9.5

J300000801000

Unavailable

22

Radiator assembly

94335010033

Unavailable

23

Radiator fan assembly

93535041044

Unavailable

49

shroud

28135041010

Unavailable
