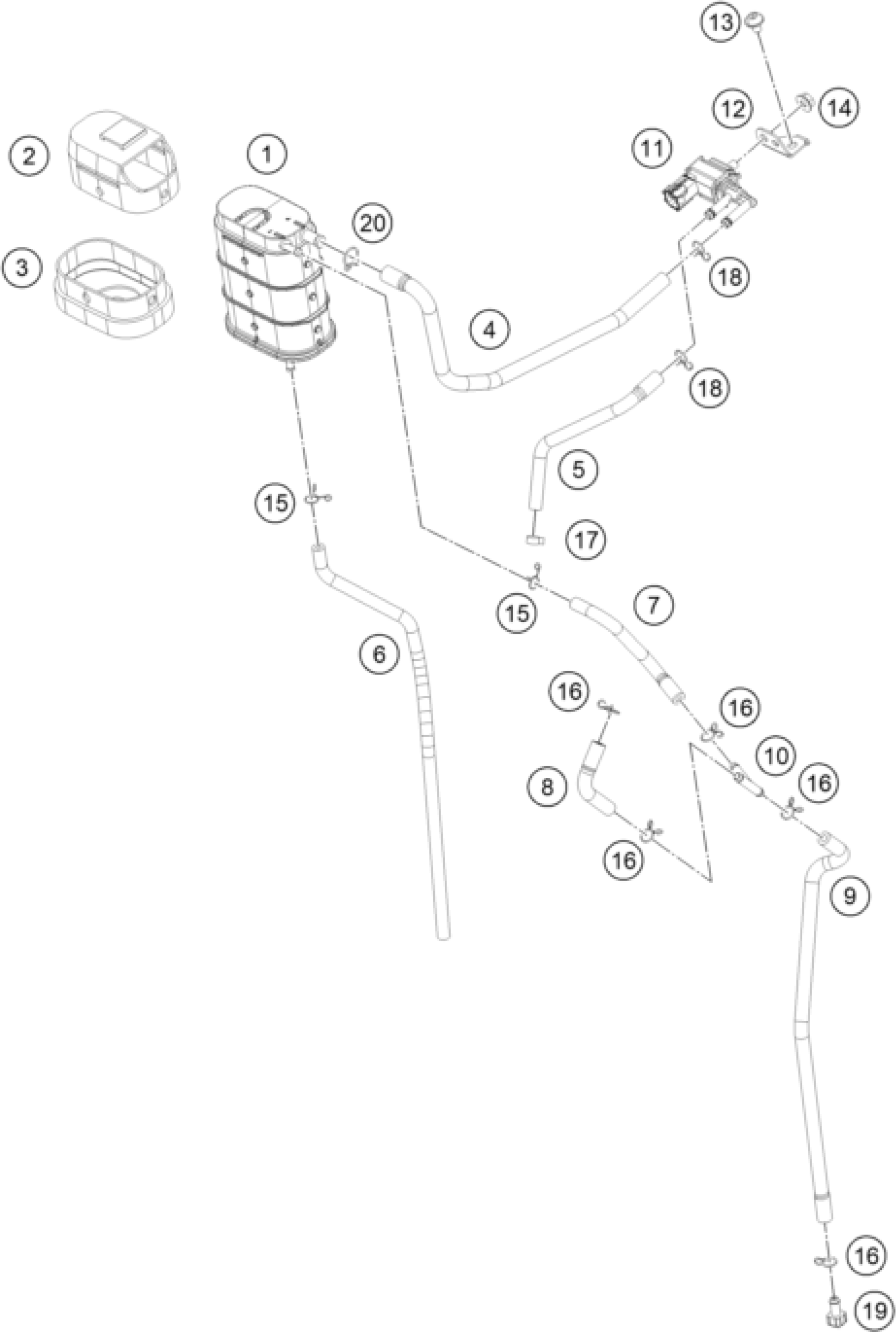

KTM 250 DUKE, orange - B.D. 2024 EVAPORATIVE CANISTER Diagram

#

Description

Price

1

Evaporative canister hosing cm

96315001000

Unavailable

2

EVAP canister strap top

96315013000

Unavailable

3

EVAP canister strap bottom

96315003000

Unavailable

4

PIPE FUEL

96315121000

Unavailable

5

PIPE FUEL

96315127000

Unavailable

6

PIPE DRAIN

96315119000

Unavailable

7

PIPE FUEL

96315117000

Unavailable

8

PIPE FUEL

96315126000

Unavailable

9

PIPE FUEL

96315123000

Unavailable

10

CONNECTOR FOR BREATHER AND VAP

J610000600400

Unavailable

11

Valve purge

90607830000

Unavailable

12

bracket purge valve

96307030010

Unavailable

13

Lens head screw M6X10

J031060103

Unavailable

14

Hexagon nut M6

J926060001

Unavailable

15

CLAMP :P.COK OUT+F.FLTR IN,OUT

J310000100900

Unavailable

16

CLAMP

90107013008

Unavailable

17

Spring clip 9.5

J300000801000

Unavailable

18

HOSE CLAMP

90507017000

Unavailable

19

PLUG FUEL DRAIN

90515011000

Unavailable

20

clamp

J310000101200

Unavailable
