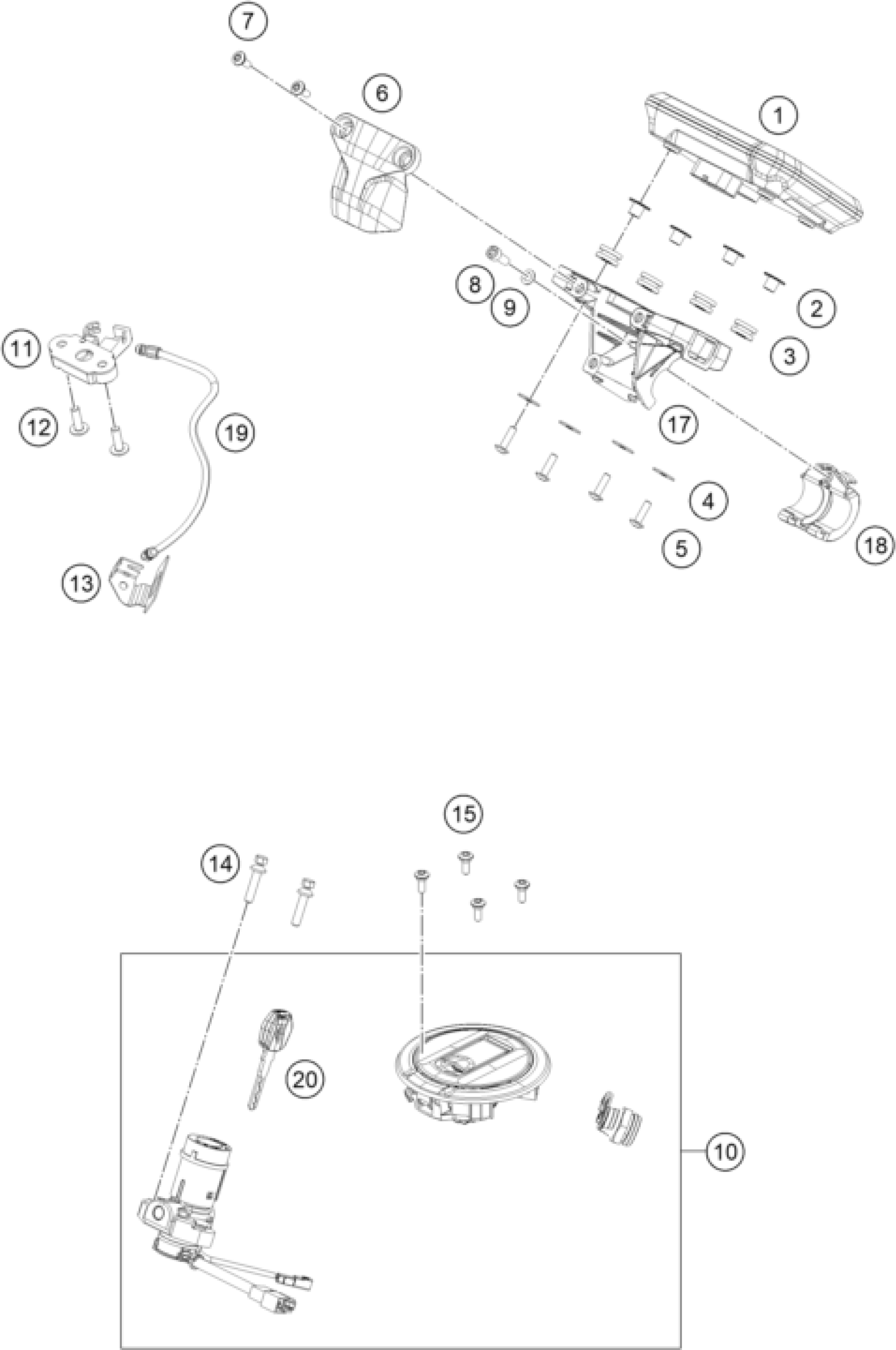

KTM 250 DUKE, orange - B.D. 2024 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

1

SPEEDOMETER

96114069000

Unavailable

2

Collar TFT speedo small

93014062010

$2.05

3

RUBBER SLEEVE

90507040001

$1.49

4

Washer, license plate holder s

93308015010

$1.49

5

Roundhead screw M5X18

J031060183

$1.49

6

instruments cover

96014061000

Unavailable

7

screw button head step M5x0.8

J900000501204

Unavailable

8

ISK-Schraube M6x16

J900000601603

Unavailable

9

WASHER PLAIN SMALL-6.5X11.5XT0

J690000600100

$1.49

10

SET LOCK

96211066044

Unavailable

11

LOCK ASSY. SEAT

90507050000

Unavailable

12

AH SCREW M6X1X20

90508006003

$4.11

13

seat lock bracket

96307051000

Unavailable

14

Special screw for ignition loc

93011064100

$2.05

15

Linsenkopf-Schraube M5x14

J900000501404

Unavailable

17

holder speedometer lower

96314060000

Unavailable

18

holder speedometer upper

96314060010

Unavailable

19

cable latch seat

94507050190

Unavailable

20

KTM Blank key

96212026000

Unavailable

20

KTM CUT Key W/O Immobiliser

96212026010

Unavailable
