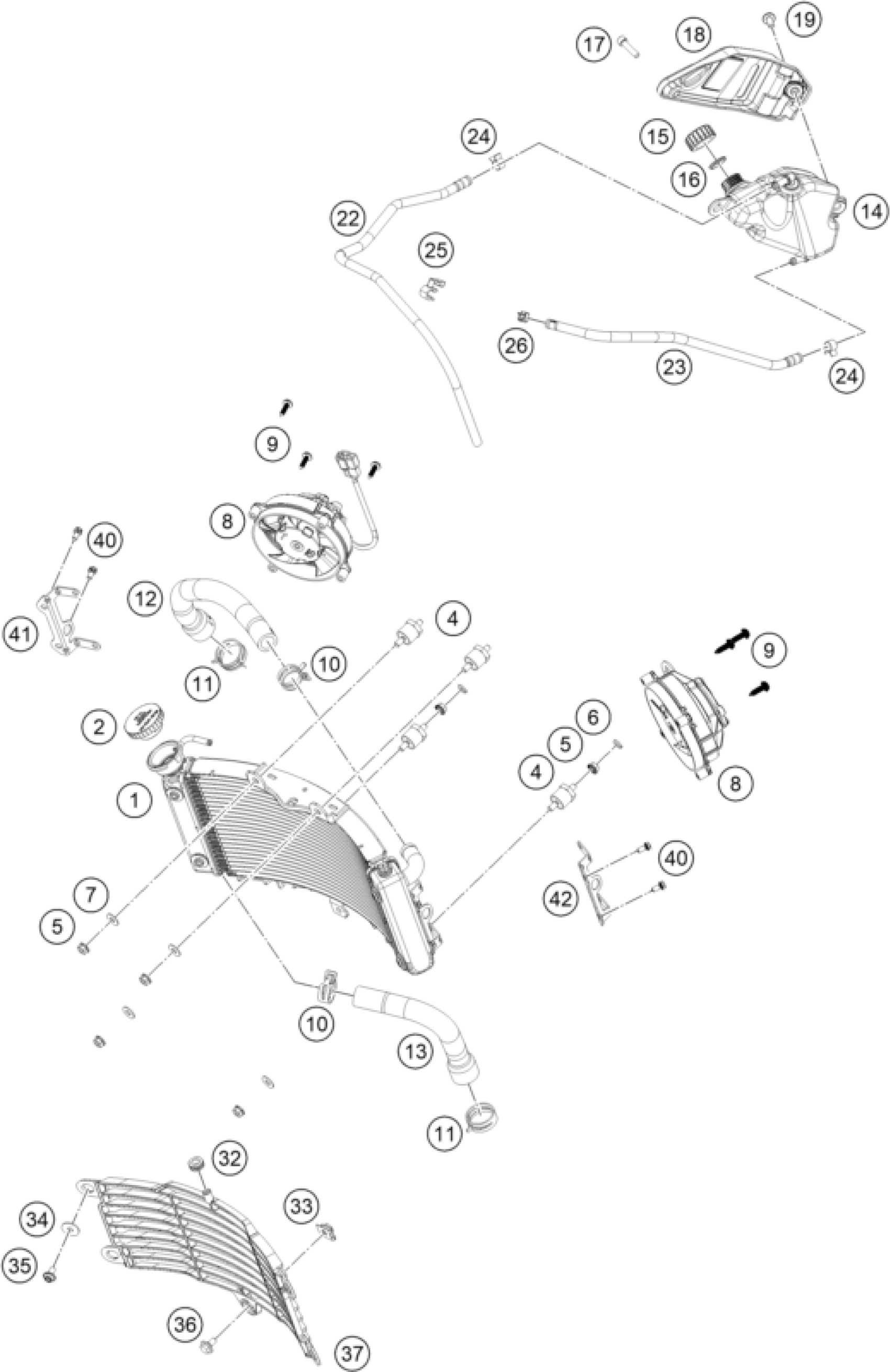

KTM 250 DUKE, orange - B.D. 2024 COOLING SYSTEM Diagram

#

Description

Price

1

Radiator

96335010000

Unavailable

2

RADIATOR CAP

90135016100

Unavailable

4

SILENTBLOCK M6

93335001000

Unavailable

5

nut hex flange-m6x1xht.6xcl4xb

J926060003

Unavailable

6

Spring ring B6

J127060001

Unavailable

7

washer plain-id6.5xod16xthk1xb

J125070004

Unavailable

8

Radiator fan, cmpl

95835041044

Unavailable

9

SCREW TAPPING PAN DIA 4.8

J900000501900

Unavailable

10

HOSE CLAMP D23

90135020000

Unavailable

11

Spring band clamp D=29

J310001202900

Unavailable

12

Radiator hose

96235026000

Unavailable

13

Radiator hose

96235025000

Unavailable

14

TANK EXPANSION

96335065000

Unavailable

15

PLUG F. EXPANSION TANK

90135066000

Unavailable

16

COMPENSATING TANK O-RING

90102055000

Unavailable

17

Hexagon socket screw, M6X25

J912060253

Unavailable

18

COVER TANK EXPANSION

96335003000

Unavailable

19

SCREW SOCKET M6X1

J900000601607

Unavailable

22

drain pipe

60035067820

Unavailable

23

PIPE COOLANT

J600001041700

Unavailable

24

CLAMP 10MM

90107018011

Unavailable

25

Strap-clip swivel

95835068000

Unavailable

26

Spring clip 9.5

J300000801000

Unavailable

32

Rubber grommet

95835016000

Unavailable

33

CLIP NUT M6

90105017000

Unavailable

34

Washer 6.2X20X1.5

93008050050

Unavailable

35

Allen head screw M6x12

J900000601206

Unavailable

36

SPECIAL SCREW M6X12X3

90108076000

Unavailable

37

radiator shroud

96335036000

Unavailable

40

SCREW TAPPING PAN DIA 4.8

J900000501900

Unavailable

41

Radiator Bracket RH

96335043011

Unavailable

42

Radiator Bracket LH

96335043010

Unavailable
