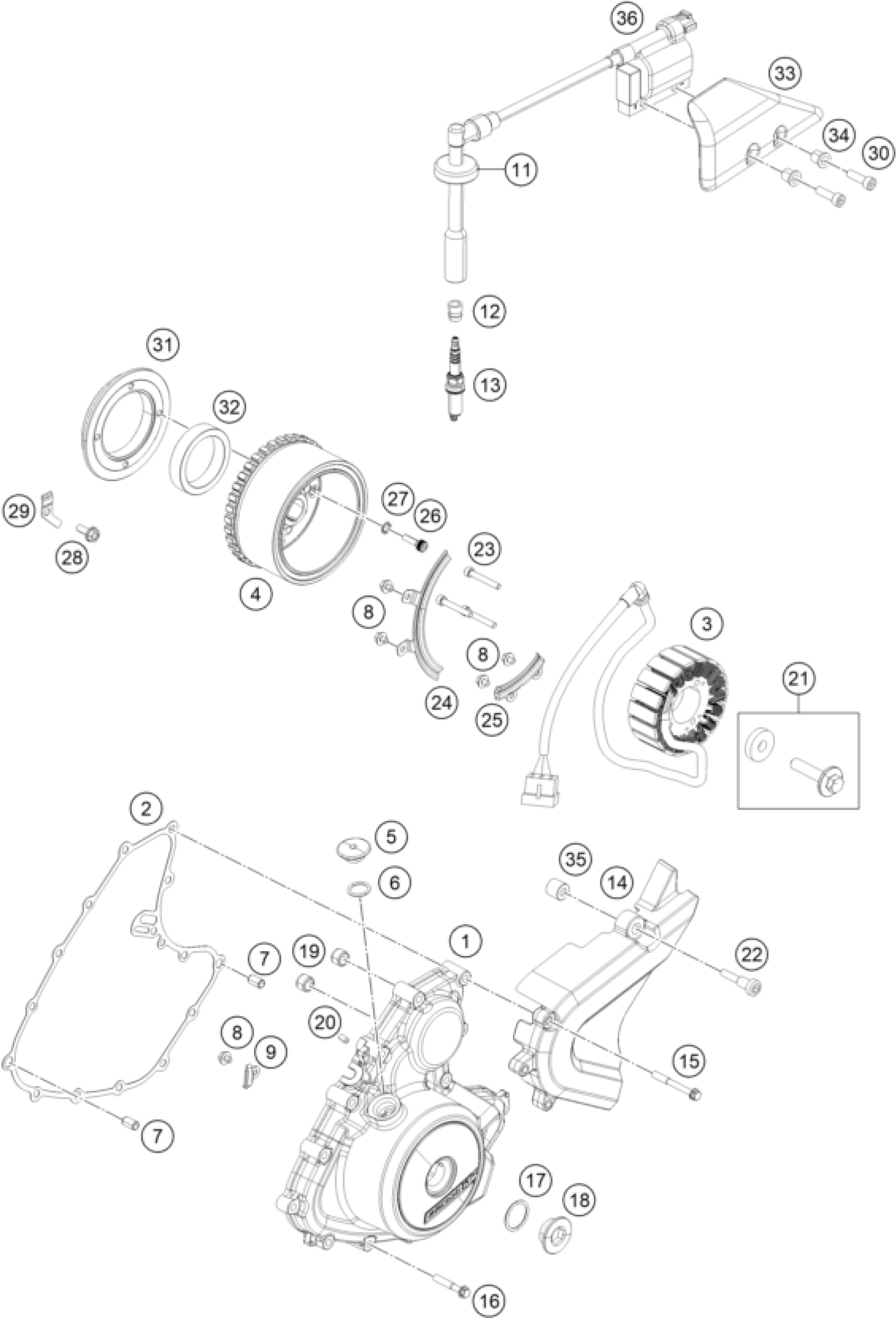

KTM 250 Duke, orange, - B.D. 2019 IGNITION SYSTEM Diagram

#

Description

Price

1

cover magneto-plug

93730002010

$88.91

2

GASKET IGNITION COVER

93730040000

$5.51

3

Stator cmpl.

93839004000

Unavailable

4

ROTOR CPL.

90839005000

$134.26

5

PLUG

90139010000

$4.11

6

O-RING 15,8X2,4

J770015824

$1.49

7

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

8

Hex collar screw M5X8

J025050081

$1.49

9

BRACKET HARNESS MAGNETO

90230062000

$2.05

11

RUBBER GASKET SPARK PLUG

90239090001

$2.05

12

Sealing boot spark plug

93839091000

$1.49

13

SPARK PLUG M12X1,25

90239093000

$8.22

14

front sprocket cover

90230060002

$12.71

15

FLANGED BOLT M6X50 WS8

J025060500

$1.49

16

Hex collar screw M6X35

J025060353

$1.49

17

O-RING 24X2,5

J770024015

$3.08

18

PLUG SCREW M24X1,5

90230094000

$2.05

19

BUSH STARTER SHAFT

90240018000

$4.11

20

OIL NOZZLE

90230066300

$1.49

21

ROTOR SCREW CPL.

90239005050

$5.41

22

Bolt socket M6X1XL22 BLK stepe

93003082000

$1.49

23

AH SCREW M5X35 SELF LOCKING

J912050353S

$1.49

24

PLATE HARNESS MAGNETO

90230058000

$3.08

25

PLATE HARNESS 2

93730059000

$1.49

26

SOCKET HEAD SCREW M6X20

90130001001

$1.49

27

TOOTHED LOCK WASHER

90130001002

$1.49

28

BOLT FLANGE M6X16

J028060164

$1.49

29

RETAINER GEAR STARTER

90240020002

$1.49

30

Hexagon screw M6X35

J912060353

$1.49

31

SUPPORT FREEWHEEL CLUTCH

90130001000

$37.95

32

FREEWHEEL CLUTCH

90140026000

$97.42

33

cover ingition coil

93039010000

$2.05

34

sleeve cover ignition coil

93039011000

$1.49

35

Distance bushing sprocket cove

93003081000

$1.49

36

Ignision coil cmpl.

93339006033

$39.45
