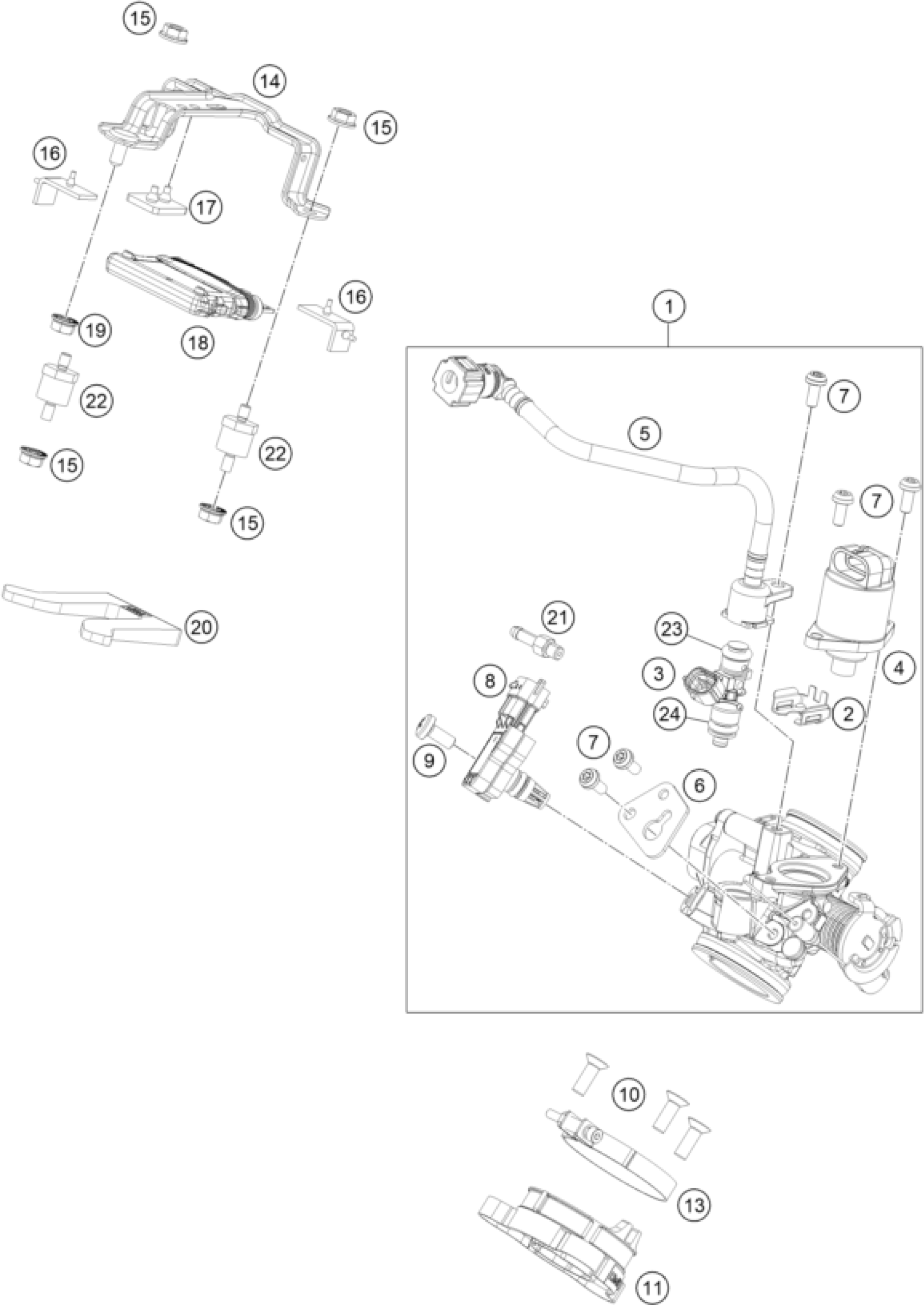

KTM 250 DUKE ORANGE B.D. 17 <2017> THROTTLE BODY Diagram

#

Description

Price

1

Throttle body

93241001000

Unavailable

2

INJECTOR CLIP

90141001001

Unavailable

3

FUEL INJECTOR

90641023000

Unavailable

4

IDLE ADJUSTER

90641072000

Unavailable

5

Injector cap with hose cpl.

93241013044

Unavailable

6

Cable bracket

93241023002

Unavailable

7

SPECIAL SCREW M5X12

90141023005

Unavailable

8

Pressure sensor

93041085000

Unavailable

9

SPECIAL SCREW M6X14

90141071001

Unavailable

10

COUNTERSUNK SCREW M6X20

J991060203S

Unavailable

11

CONN. FLANGE CYLINDER-THR.BODY

90641002300

Unavailable

13

hose clamp

90241002010

Unavailable

14

ECU Support top

93041030010

Unavailable

15

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

Unavailable

16

rubber band, ECU

93841036000

Unavailable

17

rubber band, ECU, top

93841032000

Unavailable

18

Control unit

93041031000

Unavailable

19

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

Unavailable

20

Rubber cowl pad

93041030100

Unavailable

21

NOZZLE EVAP

90641801001

Unavailable

22

Bump rubber ECU support

93011038000

Unavailable

23

O-ring

55641023020

Unavailable

24

O-ring

55641023010

Unavailable
