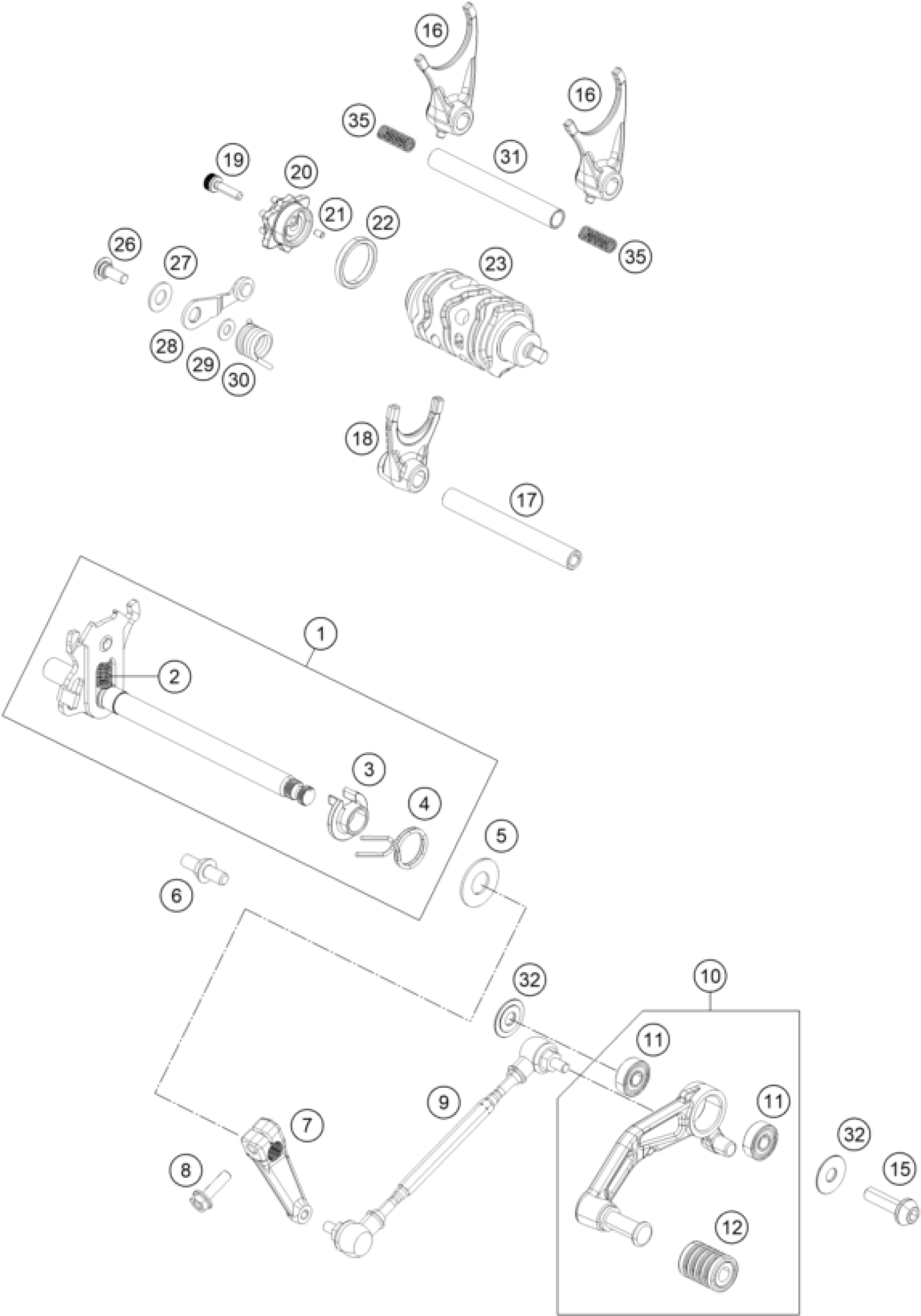

KTM 250 DUKE ORANGE B.D. 17 <2017 SHIFTING MECHANISM Diagram

#

Description

Price

1

SHIFT SHAFT CPL.

90234005033

$30.47

2

TENSION SPRING

90134009000

$1.49

3

SPRING BUSHING

90134022000

$4.11

4

RETURN SPRING

90134014000

$4.11

5

STOP DISK 14X30X1,5

90134050000

$2.05

6

SPRING GUIDE

90134016000

$2.05

7

Linkage gear shift lever

93034031010

$13.92

8

Bolt-Flange-Kad ST-D DIA-06 L-

J025060221

$1.49

9

Shift rod complete

93034036033

$16.63

10

Gear shift lever complete

93034031033

$64.32

11

BALL BEARING 608

J625060800

$7.94

12

GEAR SHIFT LEVER RUBBER

90134035000

$2.05

15

BOLT SHIFT LEVER

90134034300

$2.05

16

SHIFT FORK

90234002000

$22.15

17

SHIFT RAIL

90234019000

$5.88

18

SHIFT FORK

90234001000

$19.53

19

Bolt socket head M6X1X20 L-pre

90134098000

$1.49

20

SHIFT DRUM LOCATING

90134015000

$16.73

21

Parallel pin

90134013000

$1.49

22

SPACER

90134012002

$3.08

23

DRUM GEAR SHIFT

93834012000

$34.31

26

SCREW LOCKING LEVER

90134025000

$2.05

27

WASHER LOCKING LEVER

90134030000

$3.08

28

LOCKING LEVER CPL.

90134024033

$4.11

29

WASHER 6X12,8X1,2

90134039000

$1.49

30

ARRESTING LEVER SPRING

90134023000

$2.05

31

Gear shift rail

93834020000

$5.23

32

thrust washer, gear shift leve

90134031020

$2.05

15

BOLT SHIFT LEVER

90534034300

$3.08

35

SPRING SHIFT RAIL

90234039000

$1.49
