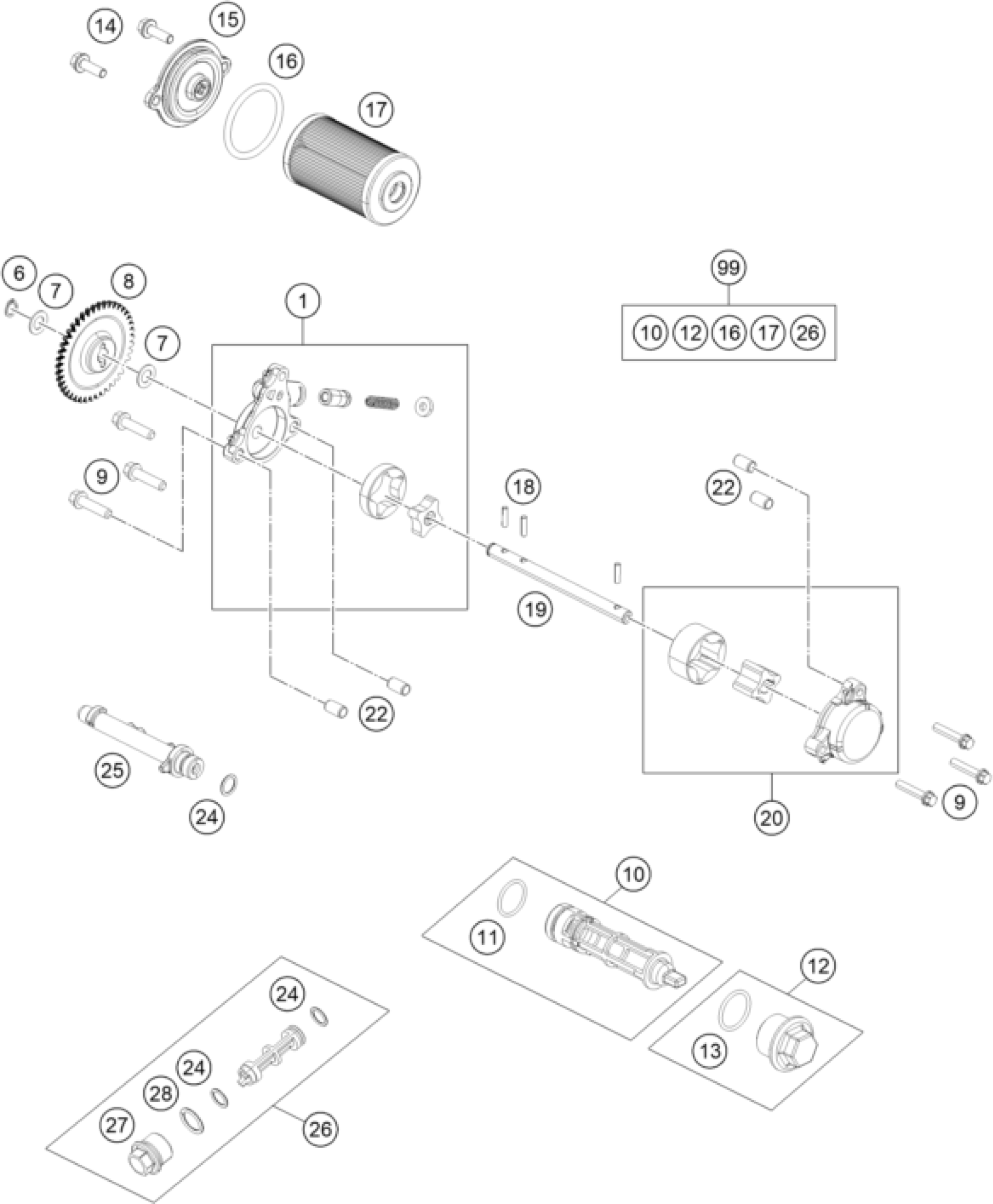

KTM 250 DUKE ORANGE B.D. 17 <2017> LUBRICATING SYSTEM Diagram

#

Description

Price

1

OIL PUMP CPL.

90238010044

Unavailable

6

Seeger ring 10X1,0

J471010100

Unavailable

7

WASHER 10,2X18X1

J125100006

Unavailable

8

GEAR OIL PUMP

90238001000

Unavailable

9

HH COLLAR SCREW M6X30 WS8

J028060303S

Unavailable

10

MESH STRAINER CPL.

90238015033

Unavailable

11

O-RING 17,7X2,1 MM

J770017721

Unavailable

12

CLOSURE CAP OIL SCREEN

90138015050

Unavailable

13

O-RING

90138015052

Unavailable

14

Hex collar screw M6X16

J025060161

Unavailable

15

OIL FILTER CAP

90138006000

Unavailable

16

O-RING 39,34X2,62

J770039326

Unavailable

17

OIL FILTER

90138015000

Unavailable

18

PARALLEL PIN

90238003000

Unavailable

19

SHAFT OIL PUMP

90238002000

Unavailable

20

OIL PUMP CPL.

90238008044

Unavailable

22

PIN DOWEL 8X6,4X14MM

90130024000

Unavailable

24

O-RING 9X1,5

J7700090151

Unavailable

25

OIL RAIL

90238013000

Unavailable

26

MESH STRAINER CPL.

90238016044

Unavailable

27

CAP STRAINER

90238017000

Unavailable

28

O-RING 12,5X2

J770012520

Unavailable

99

OILFILTER SERVICE KIT 390 DUKE

90238015010

Unavailable
